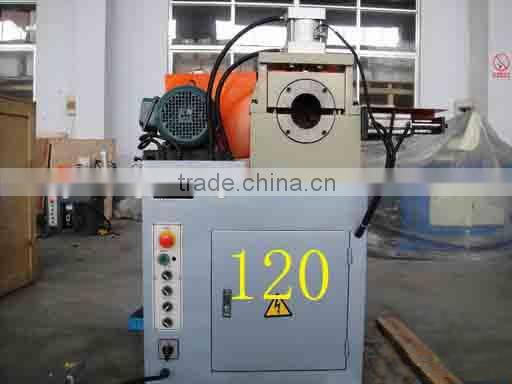

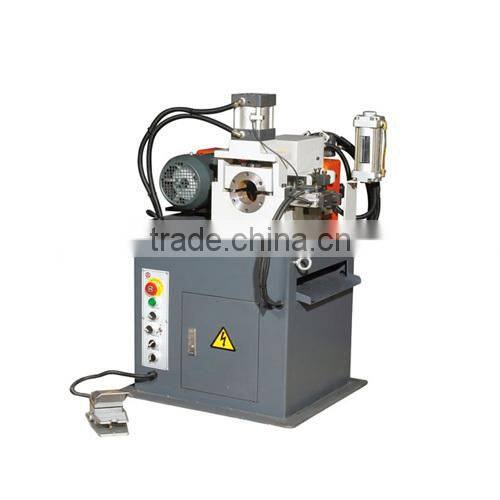

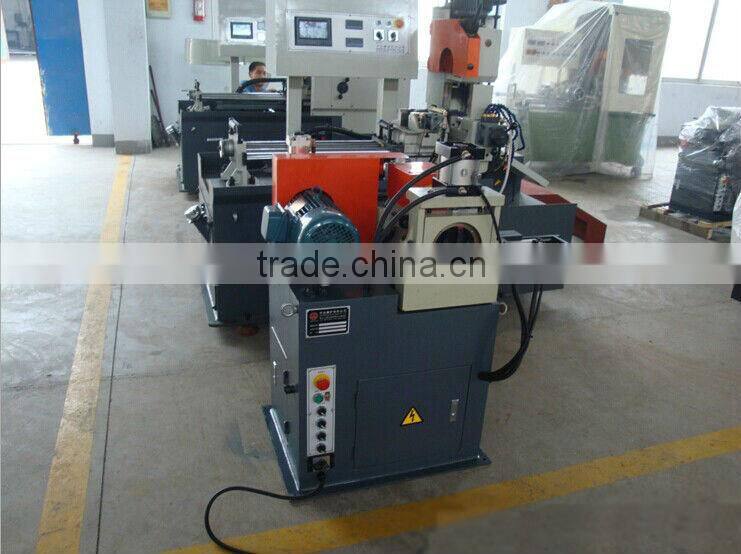

Carbon Fiber Tube Single-end Steel Chamfering Machine
- qingdao/zhangjiagang
- Credit Card
You May Like
Product Details
| Type | Surface Grinding Machine | CNC or Not | Normal | |
| Max. Grinding Diameter | 80 | Place of Origin | Shandong, China | |
| Brand Name | DINGCHENG | Model Number | ZT-80 | |
| Voltage | 380 | Power(W) | 8HP | |
| Dimension(L*W*H) | 870*690*110 | Weight | 250 |
Product Description
steel chamfering machine/ single-end steel chamfering machine
Characteristics
Suitable for iron, copper, aluminum pipe parts’ inner, processing of exterior angle, chamfering,
as well as end are completed at one time.
Manual material feeding, automatic clamping, automatic blades penetrating and returning,
fast speed, big capacity, high efficiency, convenient operation, easy learning and understanding.
The speed of main shaft blade penetrating can be adjusted, fast speed and work speed functions
are available.
In accordance with chamfering processing of work pieces of different size, only need to change
the clamp and adjust the blade bed.
MODLE | ZT-50SA | ZT-80SA | ZT-120SA | ZT-150SA |
Main motor | 1HP×4 | 2HP×4 | 3HP×4 OR | 5HP×4 OR |
Rotate speed(RPM) | 900/600, 2000/3560 | 1200, 1600 | 800, 1600 | 800, 1600 |
Use air pressure | Mpa 6-8kg/cm2, 120ml/min0.6~0.8 Mpa | |||
Suitable material | Cliber, iron tube,stainerss steel tube,copper tube,non-ferrous metal tube,plastic tube,carbon fiber tube, pipe diameter, round rod processing range O, D, inside and outside end face | |||
Suitable for pipe diameter | 3.2~50 | 3.2~80 | 19~120 | 50~200 |
Dimensions (mm) | 780×620×840 | 780×620×950 | 760×700×1140 | 760×700×1160 |
Packing dimension (mm) | 870×690×1000 | 870×690×1100 | 870×750×1380 | 870×750×1380 |
Net weight | 160kg | 100kg | 310kg | 350kg |
Gross weight | 250kg | 160kg | 360kg | 400kg |
Jining Dingcheng Industrial&Mining Equipment co., LTD.
URL: www.jndingcheng.en.china.cn
Email/MSN: dcmadery at
jndingcheng at
Mobile: 86-15206706922/86-537-3200901
Skype: madery.dcjx QQ:1955467525
