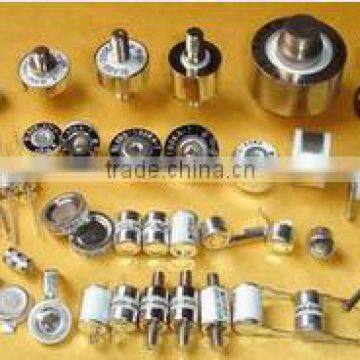

Help CenterCeramic Gas Discharge Tube From Ultronic Ceramics
Related Products
-
Metallized Alumina Ceramic for Gas Tube ArresterUS$ 0.05 - 0.08MOQ: 100000 Pieces -
Ceramics With Mo-Mn or W Metallized for Gas Discharge TubesUS$ 0.05 - 0.08MOQ: 100000 Pieces
-
High Voltage Resistivity Ceramics for Gas Tube ArresterUS$ 0.05 - 0.08MOQ: 100000 Pieces
-
Metallized Ceramics for Gas Discharge TubesUS$ 0.05 - 0.08MOQ: 100000 Pieces
-
Gas Tube Arrester Ceramics ComponentsUS$ 0.05 - 0.08MOQ: 100000 Pieces
1)metallized alumina ceramic
2)Mo-Mn or W metallized
3)Ni or Sn plating
4)high dielectric strength & high voltage resistivity
Product Description
Materials Performance
|
Item |
Unit |
Performance |
|||||
Alumina ceramic |
steatite ceramic |
|||||||
90% |
92% |
95% |
96% |
|||||
|
Ceramic Body
|
Appearance |
colour |
- |
White,Ivory white,Brown,Black |
White,Off-white |
|||
|
Mechanical Characters |
Bulk Density |
g/cm3 |
≥3.6 |
≥3.65 |
≥3.7 |
≥3..75 |
2.7 |
|
|
Water Absorption |
% |
0 |
0 |
|||||
|
Flexural strength |
MPa |
280 |
300 |
310 |
320 |
150 |
||
|
(HV) Hardness |
GPa |
12 |
5.8 |
|||||
|
Thermal Characters |
Coefficient of linear thermal expansion |
20℃~800℃ ×10-6mm/℃ |
6.3~7.3 |
6.4~7.4 |
6.5~7.5 |
6.8~7.8 |
8.0 |
|
|
Thermal Conductivity |
W/(m.K) |
12 |
16 |
20 |
23 |
2 |
||
|
Electrical Characters |
(1MHz) Dielectric constant(1MHz) |
— |
9~10 |
9~10 |
9~10 |
10 |
7.5 |
|
|
Dielectric loss angle |
×10-4 |
≤6 |
≤5 |
≤4 |
≤3 |
8 |
||
|
Dielectric Strength |
KV/mm |
15 |
20 |
24 |
28 |
18 |
||
|
Metalized Ceramics |
Gas leakage coefficient |
Pa.m3/s |
≤10-8 |
- |
||||
|
Volume resistivity |
Ω.cm |
≥1015 |
- |
|||||
|
Combined strength |
MPa |
≥120 |
- |
|||||
|
Thickness of Metal |
μm |
≥20 |
- |
|||||
Company Profile
Changsha Ultronic Ceramic Technology Co., Ltd. is located in Changsha City, the capital of Hunan Province.
Since its establishment in September 2010, Ultronic has been devoted to manufacturing alumina ceramics
and steatite ceramics for electric components and industrial ceramics. Now, we have the forming technologies
of hot pressing, dry pressing, injection molding, tape casting, and isostatic pressing. We also have the special
process of surface metallization, glazing, and polishing. Our main products include ceramic thermostat housing,
ceramic rod, metalized ceramic GDT tube, faucet cartridge ceramic disc, ceramic insulating plate and so on.
And we supply to leading companies in respective business, such as and so on.
We have below product categories
Ceramic Substrate
Zirconia Ceramic
Steatite Ceramic Parts
Ceramic Pin/Rod
Ceramic Tube/Ring
Ceramic Lamp Holder
Thermostat Ceramic Parts
Ceramic Faucet Cartridge Discs
Metalized Ceramic Parts
