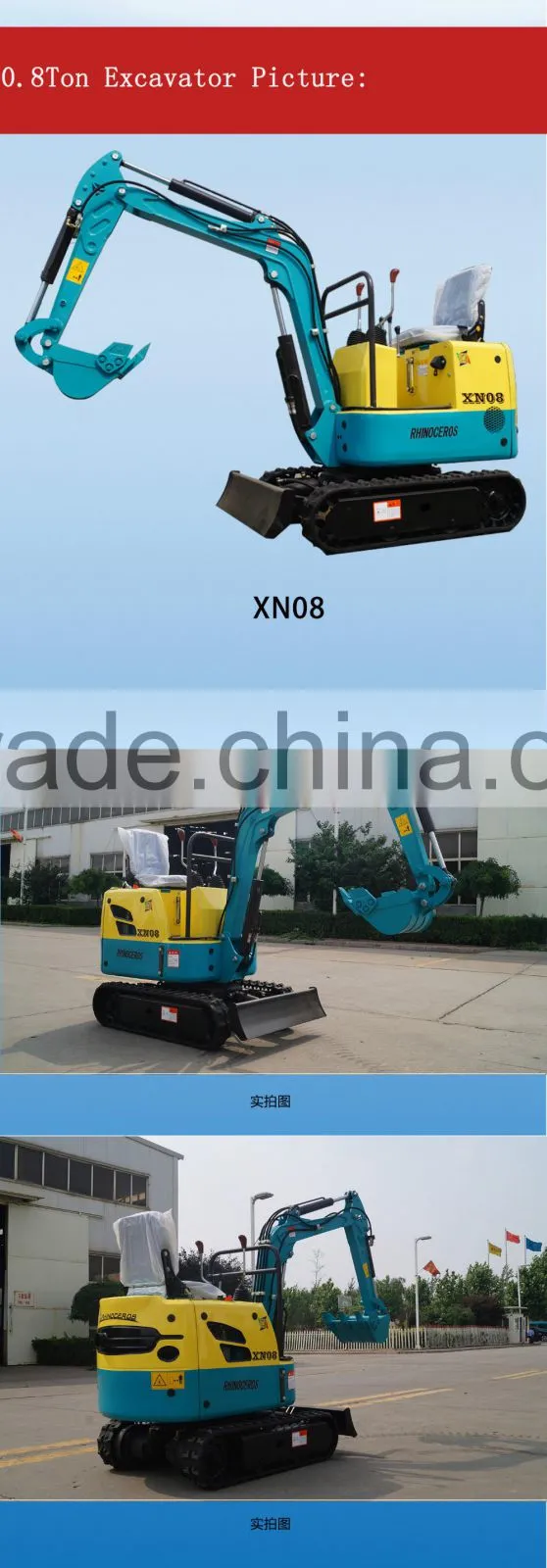

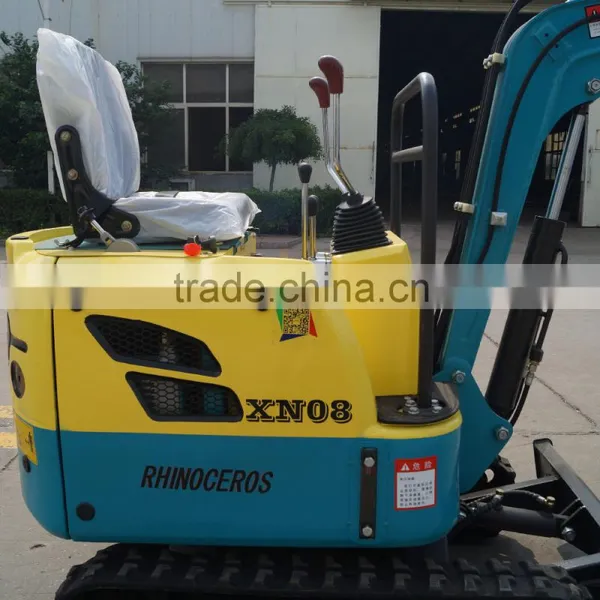

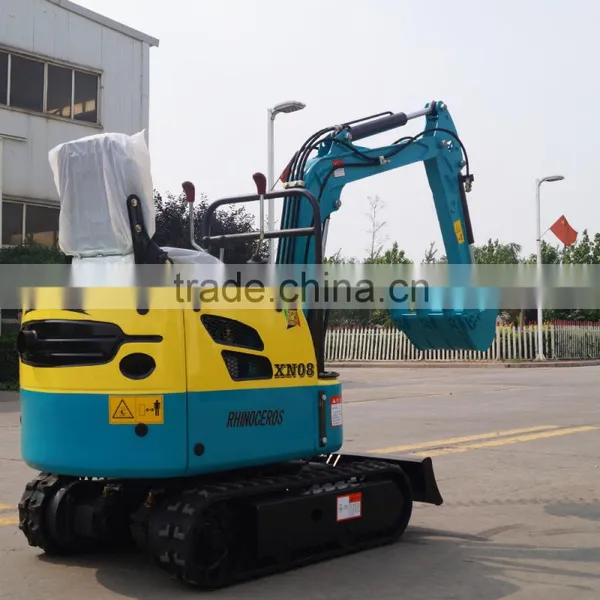

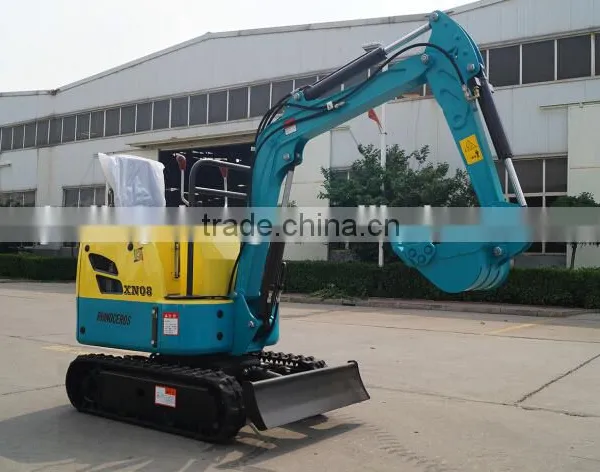

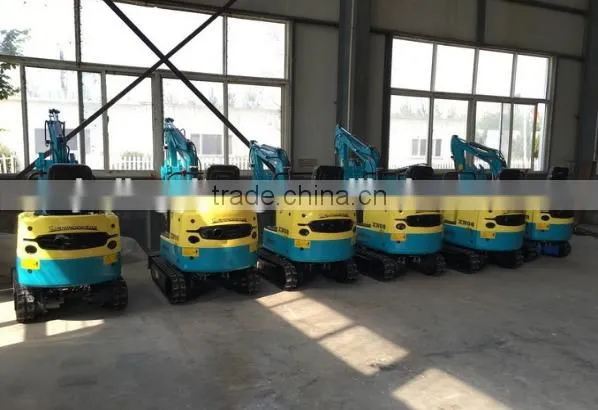

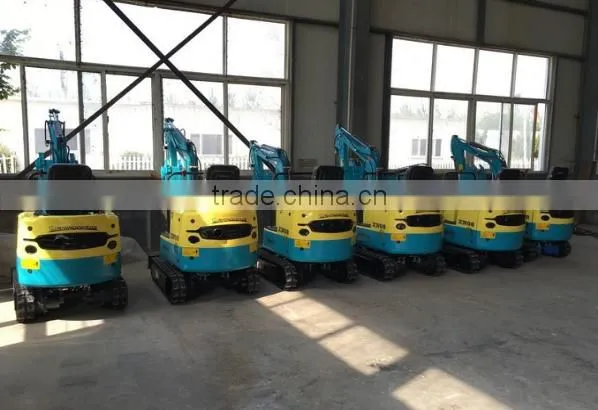

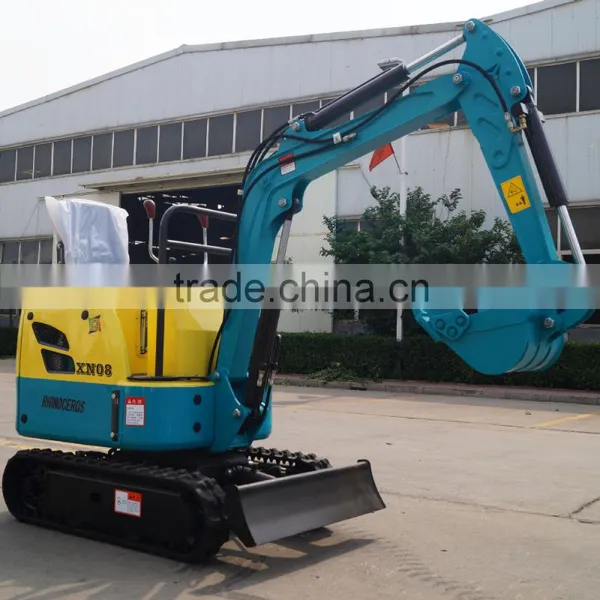

0.8TON small crawler hydraulic excavator
Model |
XN08 |
Brand |
RHINOCEROS |
Operating Weight |
800kg |
Digging bucket capacity |
0.02cbm/100kg |
Bucket width |
340mm |
Engine |
KOOP |
Rated power |
8.6 kw/1800r/min |
Displacement |
0.211 L |
Bore stroke |
70x55 |
Main pump |
CBK-F6.8 |
Displacement |
6.8ml/r |
Swing motor |
SJ-TECH (MP-1-160) |
Traveling motor |
KERSEN (OMS-2450) |
Travel speed |
1.5km/h |
MAIN DEMENSIONS | |
Overall dimension( LxWxH) |
1877x896x1990 mm |
Wheelbase |
770 mm |
Total length of track |
960mm |
Platform ground clearance |
376 mm |
Platform back turning radius |
664 mm |
Chassis width |
896 mm |
Track width |
130 mm |
Chassis ground clearance |
132 mm |
Track height |
320 mm |
OPERATING RANGE | |
Max. Digging depth |
1500 mm |
Max. Vertical digging depth |
1376 mm |
Max. Digging height |
2365 mm |
Max. Dumping height |
1655 mm |
Max. Digging radius on ground |
2560 mm |
Min. Rotation radius |
1200 mm |
Max. Upgrade height of bulldozer blade |
165 mm |
Max. Digging depth of bulldozer blade |
170 mm |
Our company (Original Jining Dingcheng Industrial Mining Machinery Factory) is specialized in producing small engineering machinery, metal processing equipment and production of the mine construction equipment. Products listed are supported and favored by the mass of users, and our company has become the first choice for many buyers. Our high quality and low price products have been sold throughout the countries of Southeast Asia, Africa, America, Europe, and so on.
Madery (Sale Manager)
Jining Dingcheng Industrial&Mining Equipment co., LTD.
URL: www.jndingcheng.en.china.cn
Email/MSN: dcmaderyAT
jndingchengAT
Mobile: 86-15206706922/86-537-3200901
Skype: madery.dcjx QQ:1955467525
