Product Details
Condition: | New | Place of Origin: | Hubei, China | Model Number: | CLW |
Dimension(L*W*H): | 9500x2100x2200 | Capacity: | 10CBM | Weight: | 6940 |
Product Description
1. Technical parameters of LPG skid-mounted station .

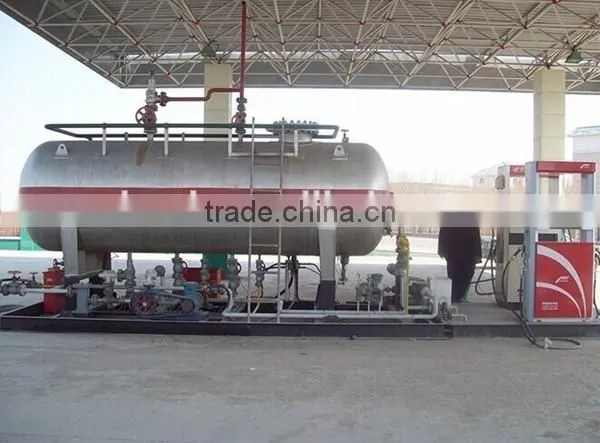

10m3 LPG filling tank container
Product | 10m3 LPG storage tank |
Normal Diameter | 1600mm |
Designed Pressure | 1.77MPa |
Max pressure | 1.61Mpa |
Whole Dimension | 9500x2100x2200 |
Tank Dimension | 5260x1620x2210 mm |
Side thickness | 10mm |
Bottom thickness | 10mm |
Curb weight: | 2950kg |
Loading weight | 3990kg |
Total weight | 6940kg |
Filling factor | 0.95 |
Medium density | 420kg/m3 |
Designed Temperature | 50℃ |
Tank material | Q345R , 16 Mnlll, Q370R |
Corrosion | 1mm |
Heating testing | PWHT(bulk heat treatment) |
Water Testing | 2.22 Mpa |
Hermetic testing | 1.77 Mpa |
Safety spare parts for LPG tank | 1, Safety Valve 2, Liquid gage 3, Pressure gage 4, Temperature gage |
Safety spare parts for gas pipeline system | 1, Pump shock tube 2, Pipe flange 3, Pump outlet check valve 4, Safe backflow 5, Piping safety valves |
Standard configuration | 1, 20m3 LPG storage tank 2, Pump 3, Weighting meter machine |
Manufacturer Standard | GB150 Steel pressure vessel, pressure vessel safety technology to monitor the procedures |

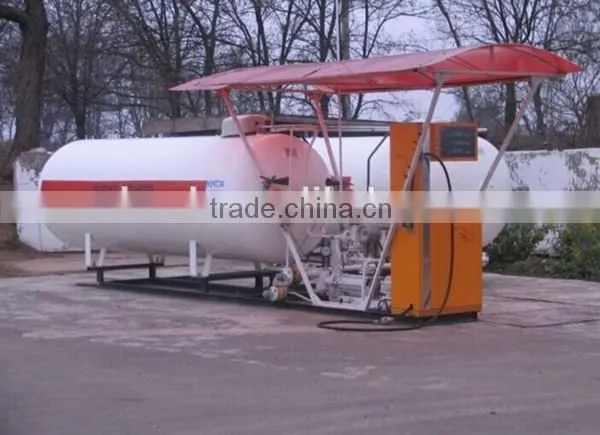

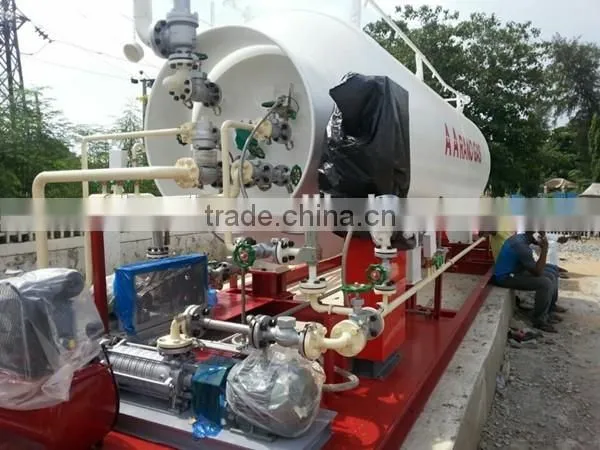

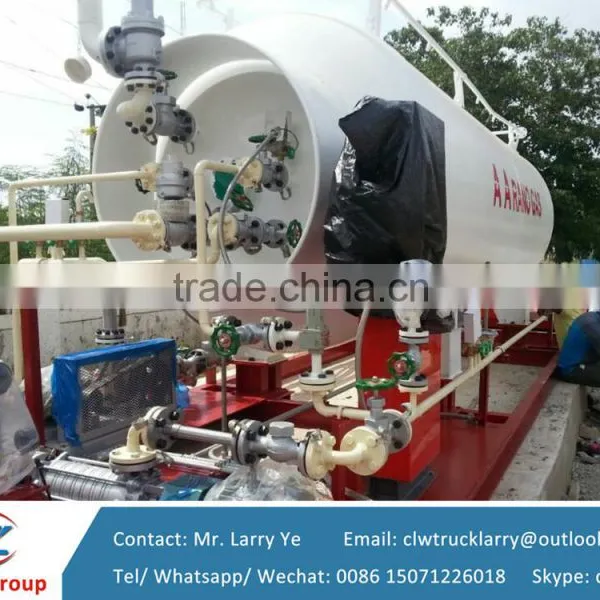

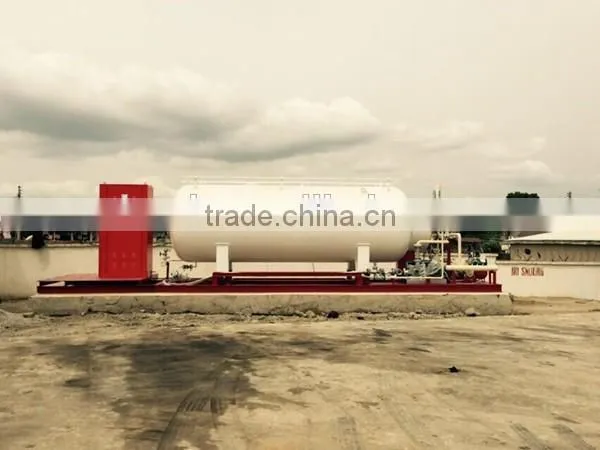

More photos for your reference
Not enough? LPG Skid-mounted station volume from 5m3 to 20m3
2. Our service
(1) Over 3000 workers include our sales and engineers will offer you the best design, price, quality;
(2) Pefect after-sales service, offer long days quality guarantee
3. Company introduce
We are professional manufacturer for many kind of special trucks. If this kind of truck don't meet the demand of what you want, make free to let us know you details requirements, we would like to have a further discuss hence offer you the best price and quality!

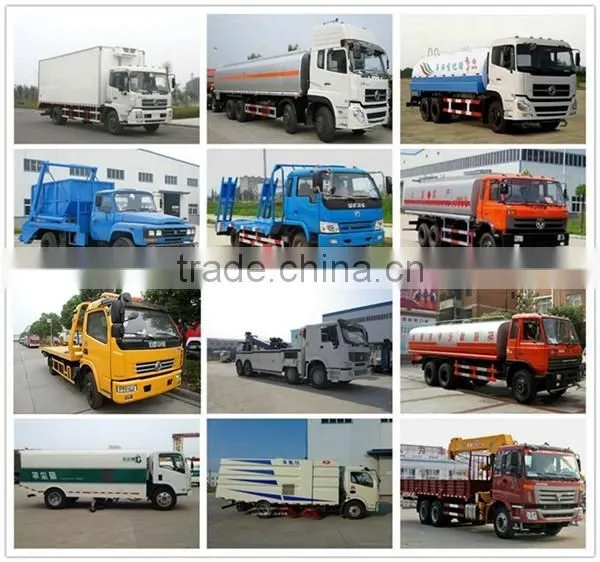

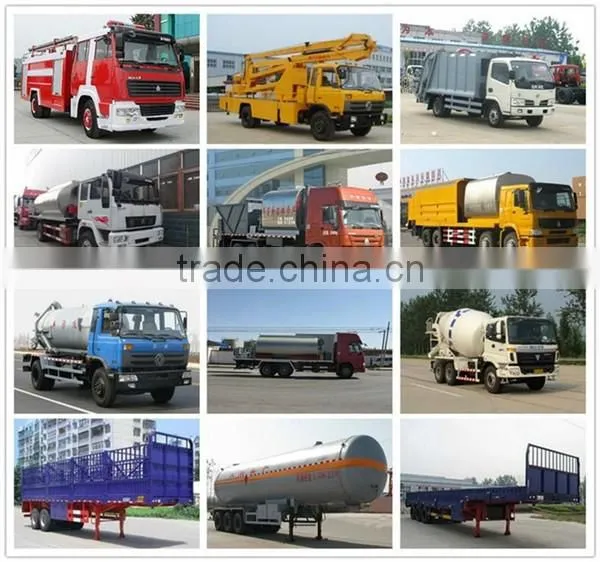

Here are some of our products:
- Watercart/water truck
- Sewage and fecal suction truck
- Garbage truck/ garbage compactor truck
- Sweeper truck/street sweeper/floor cleaning car/roadsweeper
- High-altitude truck
- Truck with crane/mounted crane truck
- Fuel truck/oil tanker truck/gas tanker truck
- Chemiacl liquid truck
- Mixer truck/ cement and concrete mixer truck
- Fire fighting truck
- Dumper truck/tipper truck
- Van/refrigrator/explosion truck
- LED/stage truck
- Wrecker truck
- Flatbed transportation truck/low bed delivery truck
- All kind semi-trailer
- Pressure vessal truck
- Asphalt distributor/asphalt bitumen distributor truck
- LPG tank/trailer

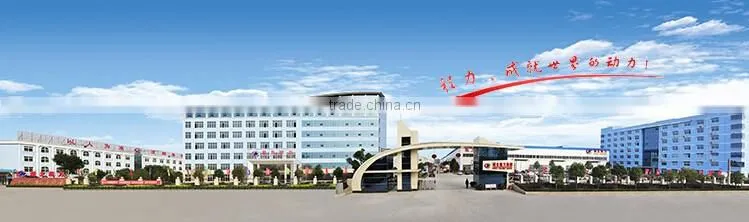

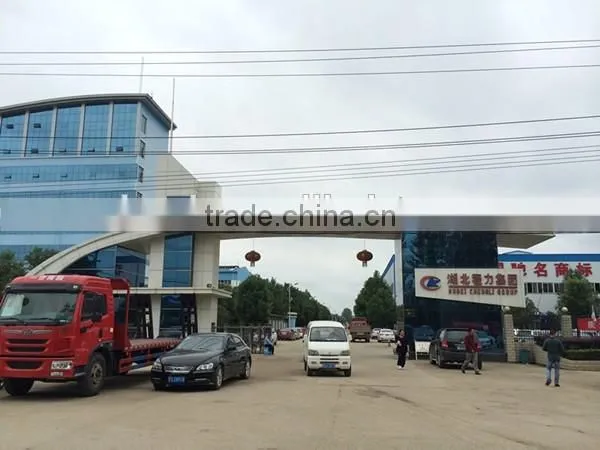

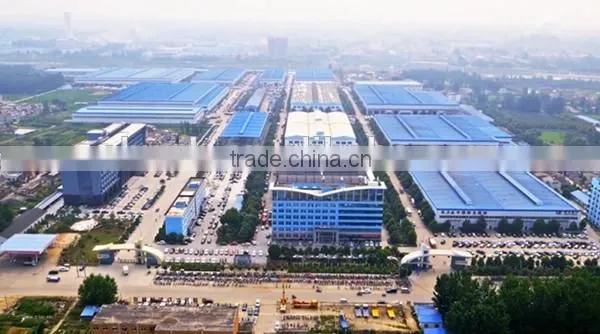

4. Company strength
In 2013, our factory was honored to be named China‘s top 500 private manufacturing enterprises as 392th. We are looking forward to build a long and successful partnership with you in the near future.
5. Contact us
Thanks for your patience and hope we could have a further communicate about this.
Contact Us
- CLW Heavy Industry Co., Ltd.
- Contact nameLeo Yu
- Phone86-027-87868775
- AddressRoom 3103, building 7, Fanhai international CBD, Hankou, Wuhan city Wuhan,Hubei
