lpg transportation truck lpg dispenser tank truck for sale
lpg gas dispenser truck also called lpg filling truck, lpg gas filling truck, mobile lpg gas truck, mobile cooking gas truck, mobile lpg truck etc, and the volume we can produce from 3000L ---25000L mobile cooking gas dispenser truck.
Paramater of RHD 5000L lpg dispenser truck
Item |
unit |
Parameter |
||||||
Vehicle model |
|
8000L LPG dispenser Truck(LHD) |
||||||
Horse Power |
ps |
170 |
||||||
Overall dimension |
Mm |
7100*2230*2810 |
||||||
Fact cubage |
L |
8000 |
||||||
GVW |
Kg |
9160 |
||||||
Rated loading capacity |
3360 |
|||||||
Mass in working order |
5800 |
|||||||
Max vehicle roll angle |
|
35° |
||||||
Wheel base |
|
3950 |
||||||
Full load |
Front axle |
2645Kg |
||||||
Rear axle |
3850Kg |
|||||||
Design limited velocity |
Straight road |
90Km/h |
||||||
Turning |
25Km/h |
|||||||
Tire specification |
9.00-20 |
Engine type |
B170-33 |
|||||
Traction system |
4*2 |
transmission |
6-speed |
|||||
Number of axles |
2 |
Electric system |
24v |
|||||
Operation control system |
Electrically hydraulic control |
Allowable passengers in cab |
2 |
|||||
Tank |
Design |
1.77Mpa |
||||||
Design temperature |
50° |
|||||||
capacity |
8m³ |
|||||||
Filling medium |
LPG |
|||||||
Tank material |
Q345R |
|||||||
Corrosion allowance |
1.00 mm |
|||||||
Heat treatment method |
PWHT |
|||||||
Tank mass |
1500 kg |
|||||||
Hydraulic test pressure |
2.66Mpa |
|||||||
|
External Dimensions (In-Diameter*Thickness*length) |
1500*10(8)*3600
|
|||||||
Vessel’s sort |
The third kind |
|||||||
Service Years |
ten years |
|||||||
Safety valve |
Type |
A412F-2.5 |
||||||
Model |
Inner full liff |
|||||||
Nominal Pressure |
PN2.5MPa |
|||||||
Nominal Diameter |
DN80mm |
|||||||
Opening Pressure |
1.86-1.95MPa |
|||||||
Closing Pressure |
>1.49MPa |
|||||||
Complete Opening Pressure |
<2.12MPa |
|||||||
|
Urgency Switch Valve
|
Type |
QGJ43F-2.5 |
||||||
Nominal Pressure |
PN2.5Mpa |
|||||||
|
Nominal Diameter |
Gas Phase |
DN25mm |
||||||
Liquid Phase |
DN50mm |
|||||||
Operation Way |
Manual |
|||||||
Closing Time |
10sec |
|||||||
Melting switch temperature |
70±5° |
|||||||
Indicator for liquid level |
Type |
UQZ-2.5-1500 |
||||||
Model |
Ball float style |
|||||||
Nominal Pressure |
PN2.5MPa |
|||||||
Surveying range |
0-1500 |
|||||||
Precision |
2.5 Grade |
|||||||
Load and unload system |
Type |
Q41F-2.5P/CQA41F-2.5p |
||||||
Nominal Pressure |
PN2.5MPa |
|||||||
Tie-in model |
Quick tie-in |
|||||||
Gas phase pipe |
DN25mm |
|||||||
Liquid phase pipe |
DN59mm |
|||||||
Production cycle |
Warranty |
30 days |
12months from the supply day |
|||||

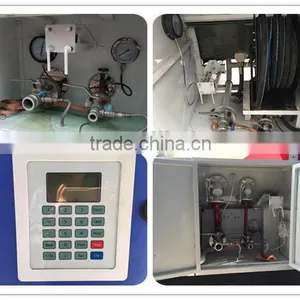

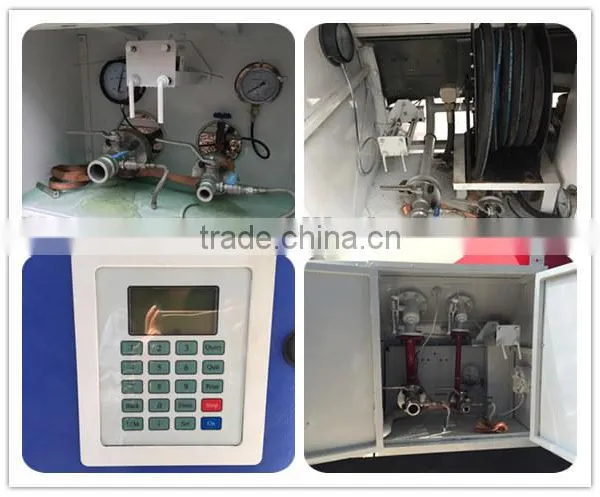

More detailed pictures of lpg dispenser truck.
1.lpg dispenser
2.Liquid level meter for lpg dispenser truck
3. counter of mobile lpg teuck
Lpg workshop picture
Production flow
LPG dispenser truck and lpg tank and lpg tank trailer and lpg filling station.
Factory picture
Packaging: nuked.
shipping: by bulk ship or RO-RO ship or container ship, it according customer's requirement.
Paymemt: T/T, 30% deposit, balance before delivery from Suizhou
1.12 months for three key parts(axles, engine and transmission)
2.easily damaged parts guarantee repairment.
fessionly provide configuration and installation scheme
