Home > Transportation > Truck > Tank Truck > Propane Lpg Gas Tanker Truck Lpg Delivery Truck

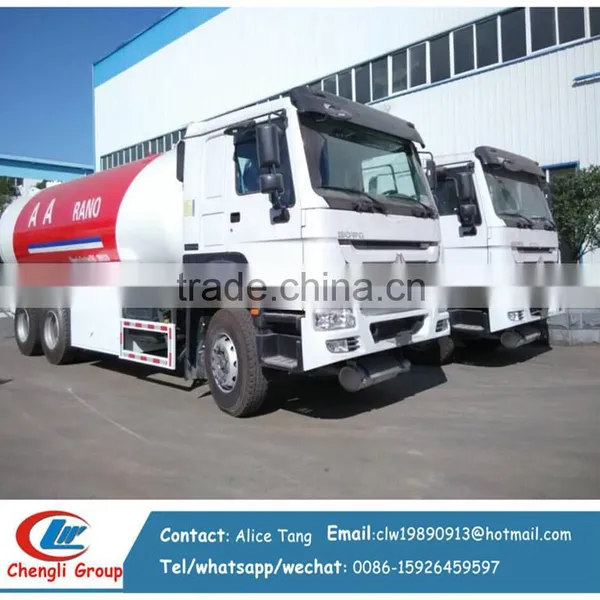

Propane Lpg Gas Tanker Truck Lpg Delivery Truck

Name: Propane Lpg Gas Tanker Truck Lpg Delivery Truck
Brand: Dongfeng -clw
SKU: 116865231

Propane Lpg Gas Tanker Truck Lpg Delivery Truck thumbnail-1

Propane Lpg Gas Tanker Truck Lpg Delivery Truck photo-1

US$ 28000.00 - 33000.00 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Storage:

LPG

Drive Wheel:

4x2

Contact Supplier Request Quote Chat Now

CLW Heavy Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Storage LPG

Drive Wheel 4x2

Horsepower Other, < 150hp

Transmission Type Manual

Fuel Type Diesel

Engine Capacity 3856ml

Dimensions (L x W x H) (mm) 6100*2500*2350

Brand Name Dongfeng -clw

Place of Origin Hubei, China

Model Number EQ50

Gross Vehicle Weight 6500

Product Description

propane lpg gas tanker truck

lpg gas dispenser truck also called lpg filling truck, lpg gas filling truck, mobile lpg gas truck, mobile cooking gas truck, mobile lpg truck etc, and the volume we can produce from 3000L ---25000L mobile cooking gas dispenser truck.

Paramater of RHD 5000L lpg dispenser truck

Item		unit		Parameter
Vehicle model				5000L LPG dispenser Truck(RHD)
Horse Power		ps		95
Overall dimension		Mm		610025002350
Fact cubage		L		5500
GVW		Kg		6500
Rated loading capacity				2520
Mass in working order				3900
Max vehicle roll angle				35°
Wheel base				3300
Full load		Front axle		2645Kg
		Rear axle		3850Kg
Design limited velocity		Straight road		90Km/h
		Turning		25Km/h
Tire specification		7.00-16		Engine type				CY4102-C3F
Traction system		4*2		transmission				5-speed
Number of axles		2		Electric system				24v
Operation control system		Electrically hydraulic control		Allowable passengers in cab				2
Tank		Design				1.77Mpa
		Design temperature				50°
		capacity				5m³
		Filling medium				LPG
		Tank material				Q345R
		Corrosion allowance				1.00 mm
		Heat treatment method				PWHT
		Tank mass				1500 kg
		Hydraulic test pressure				2.66Mpa
		External Dimensions (In-DiameterThicknesslength)				150010(8)3600
		Vessel’s sort				The third kind
		Service Years				ten years
Safety valve		Type					A412F-2.5
		Model					Inner full liff
		Nominal Pressure					PN2.5MPa
		Nominal Diameter					DN80mm
		Opening Pressure					1.86-1.95MPa
		Closing Pressure					>1.49MPa
		Complete Opening Pressure					<2.12MPa
Urgency Switch Valve		Type					QGJ43F-2.5
		Nominal Pressure					PN2.5Mpa
		Nominal Diameter	Gas Phase				DN25mm
			Liquid Phase				DN50mm
		Operation Way					Manual
		Closing Time					10sec
		Melting switch temperature					70±5°
Indicator for liquid level		Type					UQZ-2.5-1500
		Model					Ball float style
		Nominal Pressure					PN2.5MPa
		Surveying range					0-1500
		Precision					2.5 Grade
Load and unload system		Type					Q41F-2.5P/CQA41F-2.5p
		Nominal Pressure					PN2.5MPa
		Tie-in model					Quick tie-in
		Gas phase pipe					DN25mm
		Liquid phase pipe					DN59mm
Production cycle	Warranty	30 days			12months from the supply day
