20T LPG TANK TRAILER
Lpg tank is also called small lpg tanker, ASME lpg tank, lpg gas tanker ,lpg storage tanks,lpg transport tank etc, it is widly used transporting kinds of Liquefied petroleum gas,We have different kind of lpg tank,5000L lpg tank , 2T lpg tank, 10000Lpg storage tank 50000L lpg storage tanker for sale, 100000L lpg tanks, 120CBM lpg transport tank..
Our lpg series product includ lpg storage tank, load capacity from 5000L to 120000L , lpg underground tank from 10000L to 80000L, lpg dispenser truck , lpg filling plant, lpg tank trailer etc.
Items |
Descriptions |
Parameters |
Fundamental Information |
Model |
CLG2300-50 LPG |
Dimension(LxWxH)(mm) |
12508*2324*2914 |
|
Tank Diameter(mm) |
2300 |
|
Curb Weight (kg) |
10190 |
|
Payload(kg) |
19950 |
|
Class of Vessel |
Third class |
|
Designed Pressure(Mpa) |
1.77 |
|
Max Working Pressure(Mpa) |
1.61 |
|
Desigend Temperature(℃) |
-19~50 |
|
Filling Medium |
LPG |
|
Corrosion Allowance(mm) |
1 |
|
Capacity(m³) |
50 |
|
Heat Treating |
Whole tank |
|
Filling Ratio(kg/m³) |
420 |
|
Material of Tank and Pressure Parts |
Q345R |
|
Pressure of Hydraulic Test (Mpa) |
2.22 |
|
Pressure of Air Test(Mpa) |
1.77 |
|
Tank thickness(mm) |
12 |
|
Head thickness(mm) |
14 |
|
Useful time |
15 years |
|
Fluid Level Gage |
Model |
UHZ-518C14 |
Type |
Magnetic flap level gage |
|
Nominal Pressure (Mpa) |
2.5 |
|
Test Range(mm) |
50-2500 |
|
Test Precision |
2.5 |
|
Safety Valve |
Model |
A42F-2.5-80 |
Type |
Wide-open and built-in |
|
Nominal Pressure(Mpa) |
2.5 |
|
Nominal Diameter |
DN80 |
|
Opening Pressure(Mpa) |
1.68-1.76 |
|
Re-seating Pressure(Mpa) |
0.8 Times of opening pressure |
|
|
Handling Equipments (Nominal Diameter) |
Discharge Pipe, Inflow Pipe, Outlet, Air Vent |
DN50 |
Inlet Port |
DN50 |
|
Optional Accessories |
Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. |
|

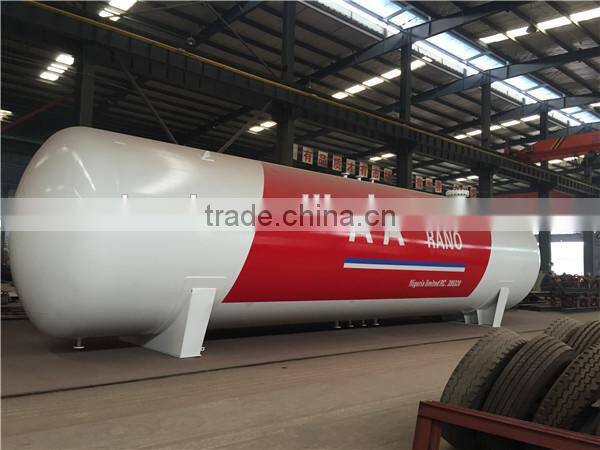

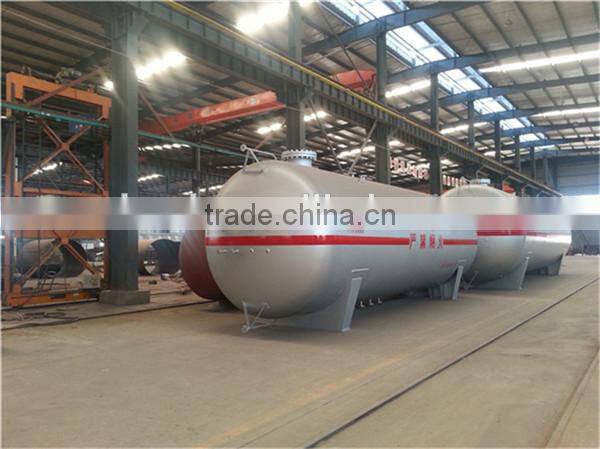

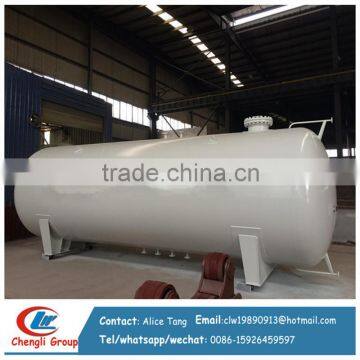

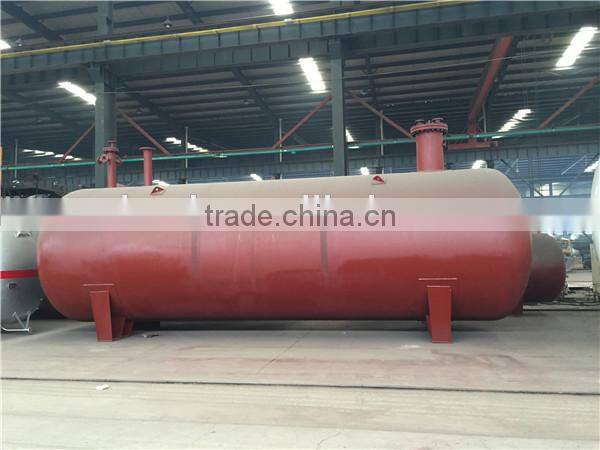

lpg tank pictures

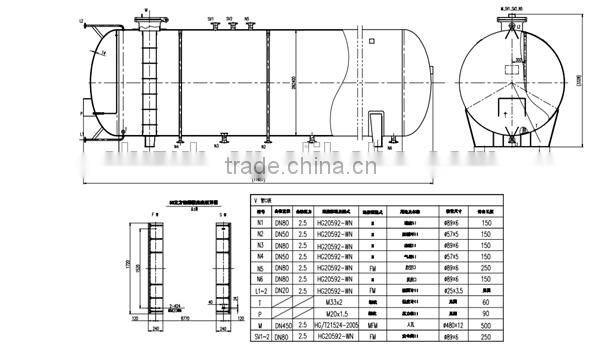

Drawing of Lpg tank

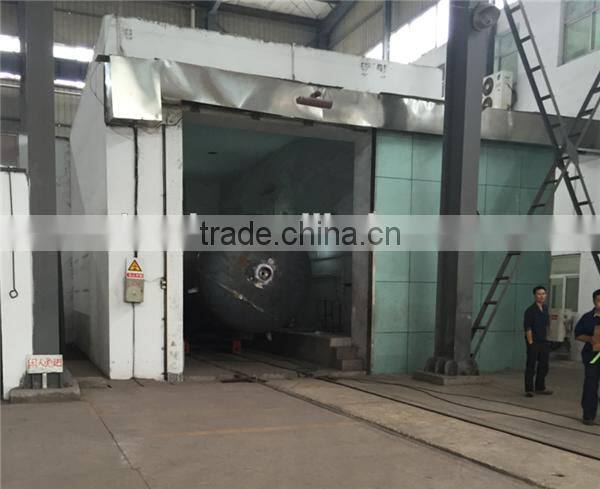

LPG workshop picture

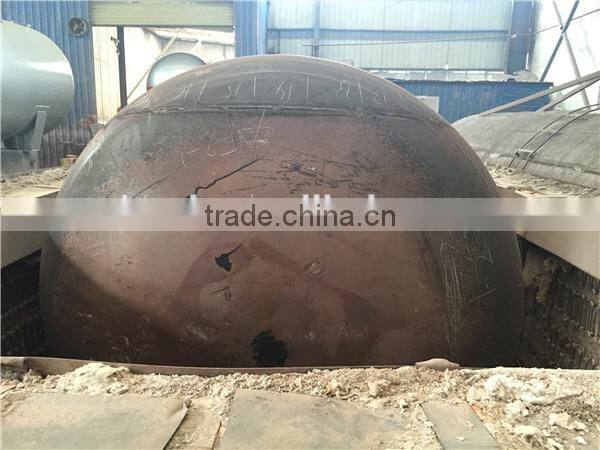

lpg tank production flow
LPG tank trailer and lpg tank and lpg dispenser truck .
Factory Picture
Packaging: nuked.
shipping: by bulk ship or RO-RO ship or container ship, it according customer's requirement.
Paymemt: T/T, 30% deposit, balance before delivery from Suizhou
1.12 months for three key parts(axles, engine and transmission)
2.easily damaged parts guarantee repairment.
fessionly provide configuration and installation scheme
