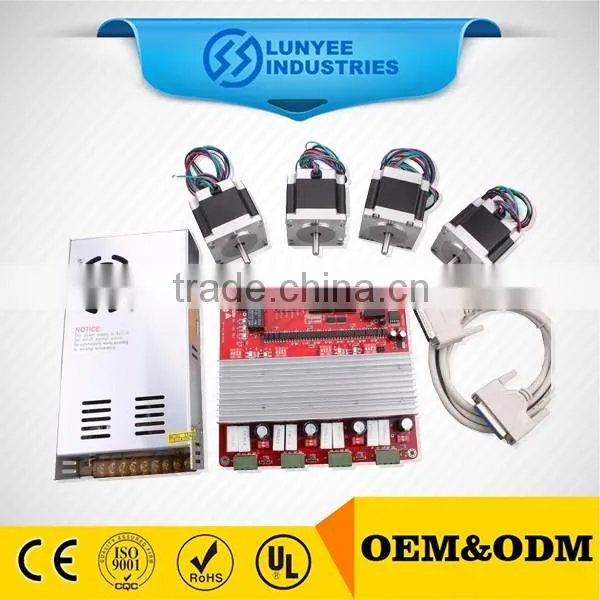

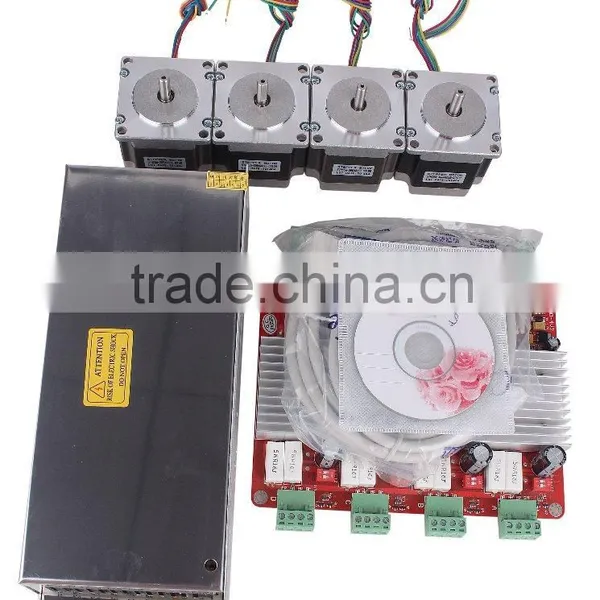

CNC kit 4Axis Stepper Driver TB6560 +290OZ-IN 76MM nema23 motor for router
4pcs Stepper motor nema23(57HS76-3004)
1pc TB6560 4axis CNC breakout board (3.5A12-36VDC)
1pc Power 5.6A 200W 24VDC
Nema57HS Stepper motor Features:
Stepper motor is an electromechanical device which converts electrical pulses into discrete mechanical movements.Stepper motor nema23 set is widely used in CNC Router, CNC machine, Engraving machines, Medical equipment, acking Machine, Printer, Textile machinery, etc.
Nema57HS Stepper motor Specification:
| Item | Specifications | |||
| Step Angle | 1.8degree | |||
| Temperature Rise | 80 ℃Max | |||
| Ambient Temperature | -20 ℃ Max+50 ℃ | |||
| Insulation Resistance | 100M Ω Min., 500VDC | |||
| Dielectric Strength | 500VAC for one minute | |||
| Shaft Radial Play | 0.02Max (450g-load) | |||
| Shaft Axial Play | 0.08Max (450g-load) | |||
| Max Radial Force | 75N(20mm from th flange) | |||
| Max Axial Force | 15N | |||
| Model No | No of Phase | Rated Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (kg.cm) | Rotor Inertia (g.cm²) | Motor Length (mm) | Lead Wire Number | Motor Weight (kg) |
| 57HS56-1504 | 2 | 5.7 | 1.5 | 3.8 | 12 | 2.1 | 300 | 56 | 4 | 0.7 |

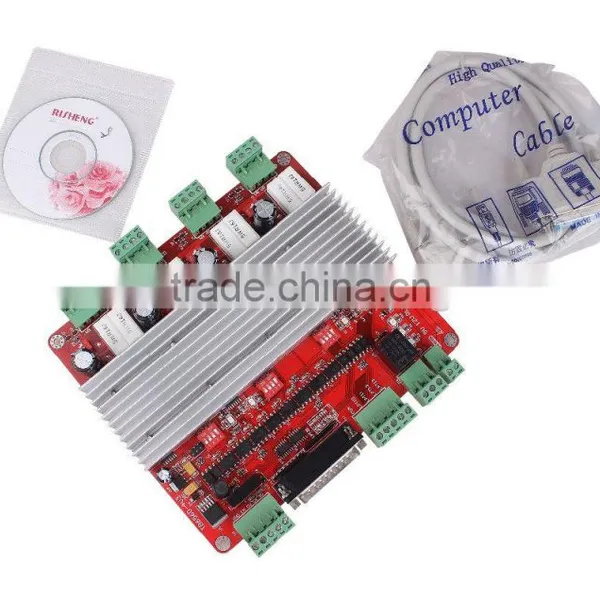

4axis CNC Driver board TB6560:
1:The maximum 3.5A drive current to a maximum 86 stepper motor drives, more powerful
2:1-16 sub-setting, higher accuracy, smoother operation
3:Overload over-current over-temperature protection, full protection of your computer and peripheral equipment
4:4 files current settings can be set according to the user the actual current requirement
5:Full closed-type optical isolation to protect the user's computer and equipment
6:Professional design, two-stage signal processing, super anti-jamming
7: Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region.
8: Four input control, you can set limit, emergency stop, which is divided into pairs of knives

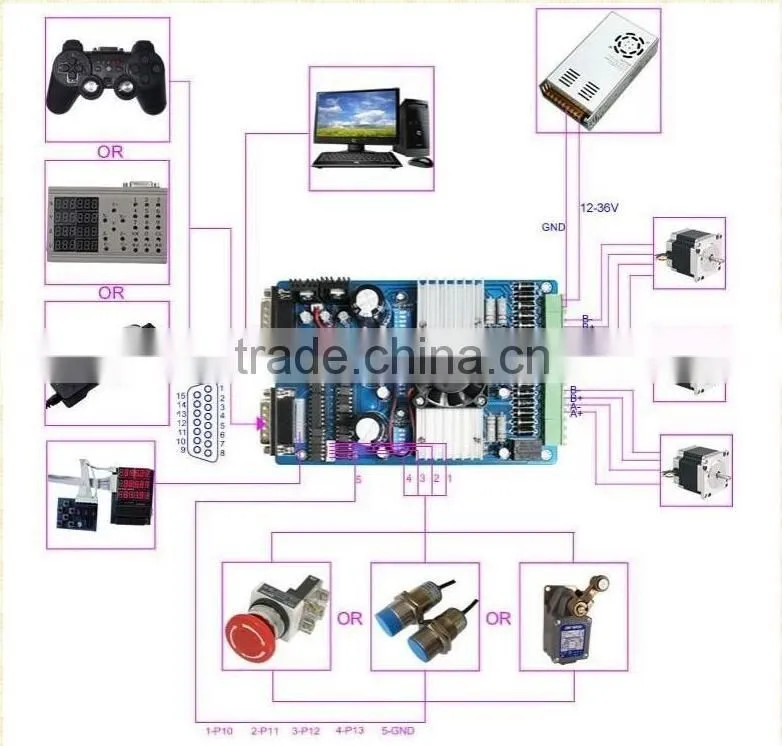

Please note the following before the test items
1,To determine the size of the supply voltage and current
2,Determine the stepper motor power and current (model)
3,Determine the stepper motor wiring
4,Power Please take 12 ~ 36V 8A (stepper motor in accordance with the work of current matching) The above switching power supply, I received a map indicating the power input interface.
12V power output for a 12V cooling fan to pick up where.

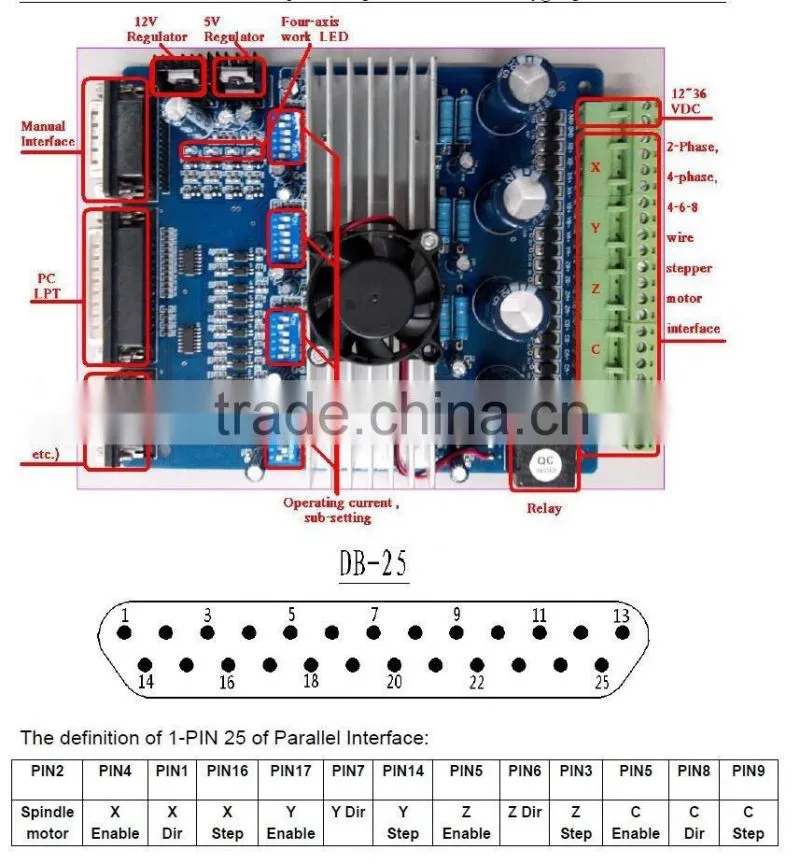

The definition of 1-PIN 25 of Parallel Interface is described as follows:

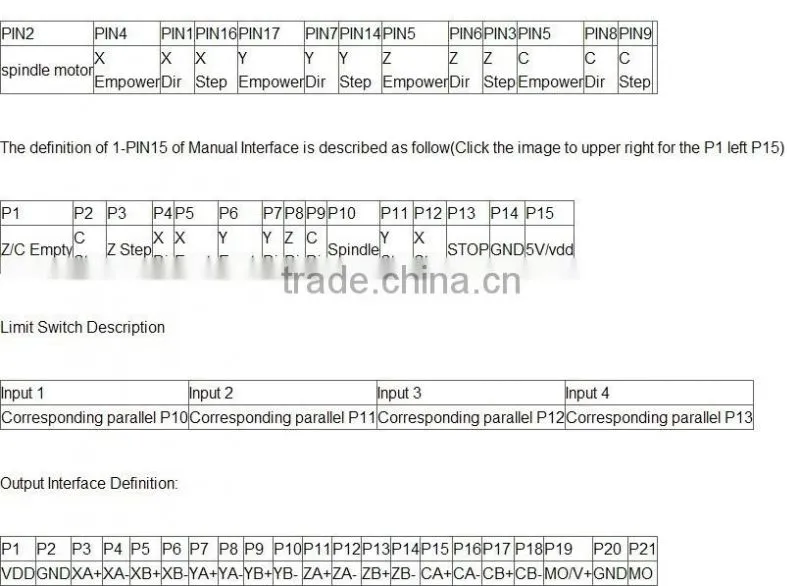

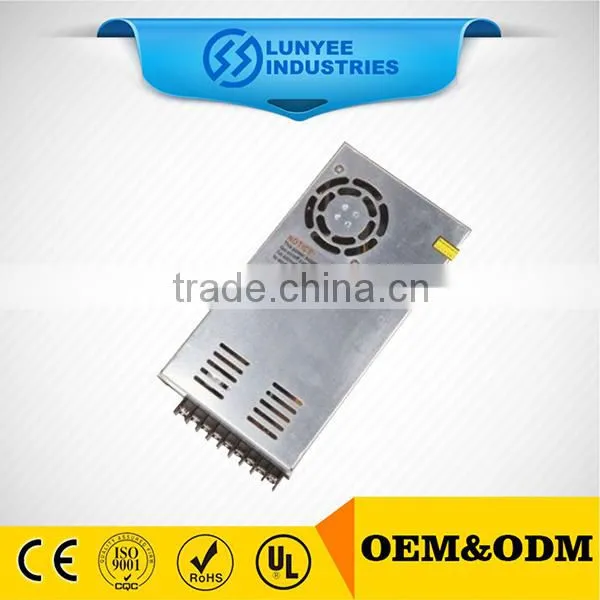

Power supply 200W 24V:
Lunyee Industries has a wide range of stepper motor and related accessories applying to different kinds fields.
