High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router

Chengdu Lunyee Imp. & Exp. Co., Ltd.
High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router thumbnail-1
High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router thumbnail-2
High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router thumbnail-3
High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router thumbnail-4
High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router thumbnail-5
High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router thumbnail-6
High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router photo-1
High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router photo-2
High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router photo-3
High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router photo-4
High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router photo-5
High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router photo-6
US$ 9.69 - 30.89 MOQ: 2 Units
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
LUNYEE
Model Number:
Nema23
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name LUNYEE
Model Number Nema23
Phase Other, 2,4
Type Hybrid
Certification CCC, CE, ISO, ROHS, UL
Step Angle(degrees) 1.8degree
Holding Torque 0.3 n.m~3.2 n.m
Current / Phase 0.3~4.5A

High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router



Welcome to visit our website  to find more products!



Nema23/57HS Hybrid Stepper motor Features:

Stepper motor is an electromechanical device which converts electrical pulses into discrete mechanical movements.Stepper motor is widely used in Engraving machines, Stage Lighting , Medical equipment, Sewing Machine, Packing Machine, Printer, Textile machinery, Robot, business automation equipment etc.





Nema23/57HS Hybrid Stepper motor Specification:

ItemSpecifications
Step Angle1.8degree
Temperature  Rise80 ℃Max
Ambient  Temperature-20 ℃ Max+50 ℃
Insulation  Resistance100M Ω Min.,  500VDC
Dielectric  Strength500VAC for  one minute
Shaft Radial  Play0.02Max  (450g-load)
Shaft Axial  Play0.08Max (450g-load)
Max Radial Force75N(20mm from th flange)
Max Axial Force15N



Model NoRated Voltage (V)Rated Current (A)Phase Resistance (Ω)Phase Inductance (mH)Holding  Torque (kg.cm)Rotor Inertia (g.cm²)Motor Length (mm)Lead Wire  NumberMotor Weight (kg)
57HS41-20042211.23.21204140.45
57HS51-15042.41.51.63.88.22755140.65
57HS56-15045.71.53.81213.53005640.7
57HS64-30043.931.32.2153806440.8
57HS76-20048.624.316.2244807641
57HS82-30044.231.45225108241.2
57HS100-30043314.52568010041.4

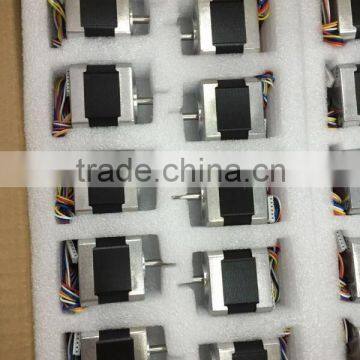

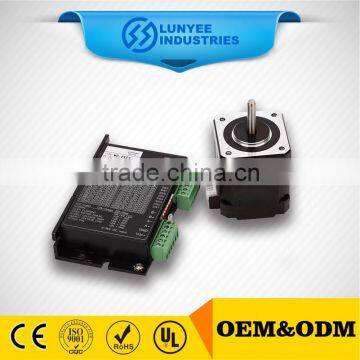

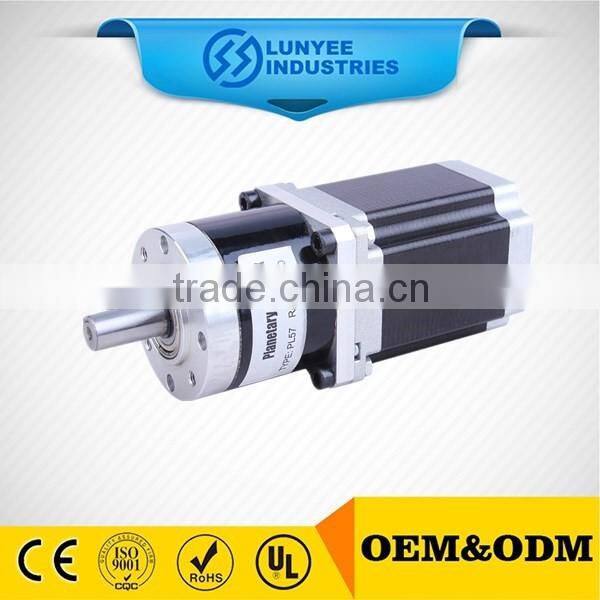

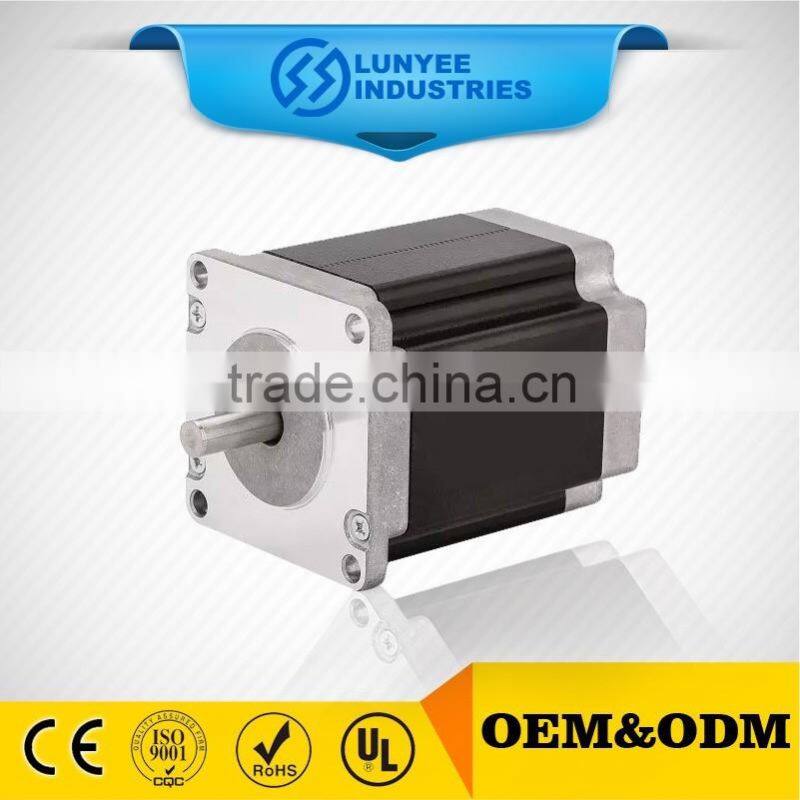

Nema23/57HS Hybrid Stepper motor Pictures:

High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router

High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router

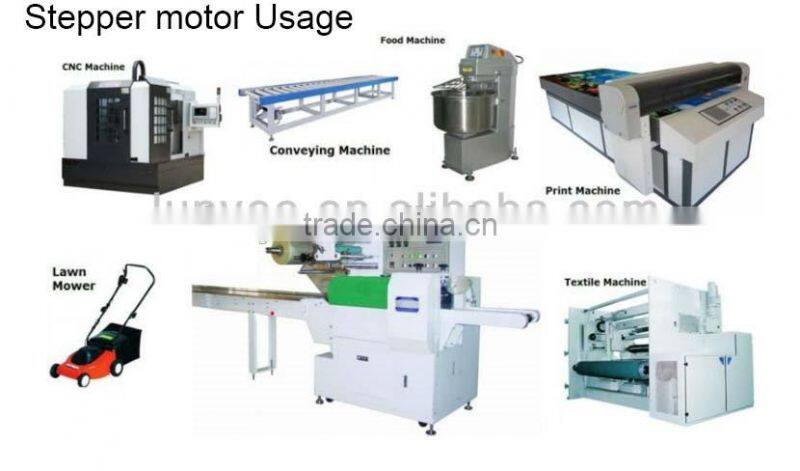

Nema23/57HS Hybrid Stepper motor Usage:

High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router

Lunyee Industries has a wide range of stepper motor and related accessories applying to different kinds fields.

High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router

High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router

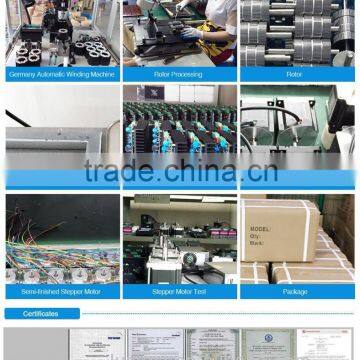

Lunyee Company Information:

Chengdu Lunyee Industries Development Co., Ltd. is a leading manufacturer for factory automation (FA) products! We are dedicated in power transmission and motion control solutions! We are a leading manufacturer for power transmission products like AC and DC(brush/brushless)gear motor, stepper motor,high precision planetary gearbox (spur/helical gear)for stepping motor etc.







Our quality:
One professional QC department is built up to inspect all the manufacture process according to international quality standard and our customers’ special requirement! Our factory and our sub-contractors are all qualified ISO9001, 3C, CE, UL, ROHS and other related certification! All products from Lunyee can enjoy a warranty from us!







Our price:
We promise to our customers for the same price, they can enjoy better quality from Lunyee, for the same quality, they can enjoy better service from Lunyee!
