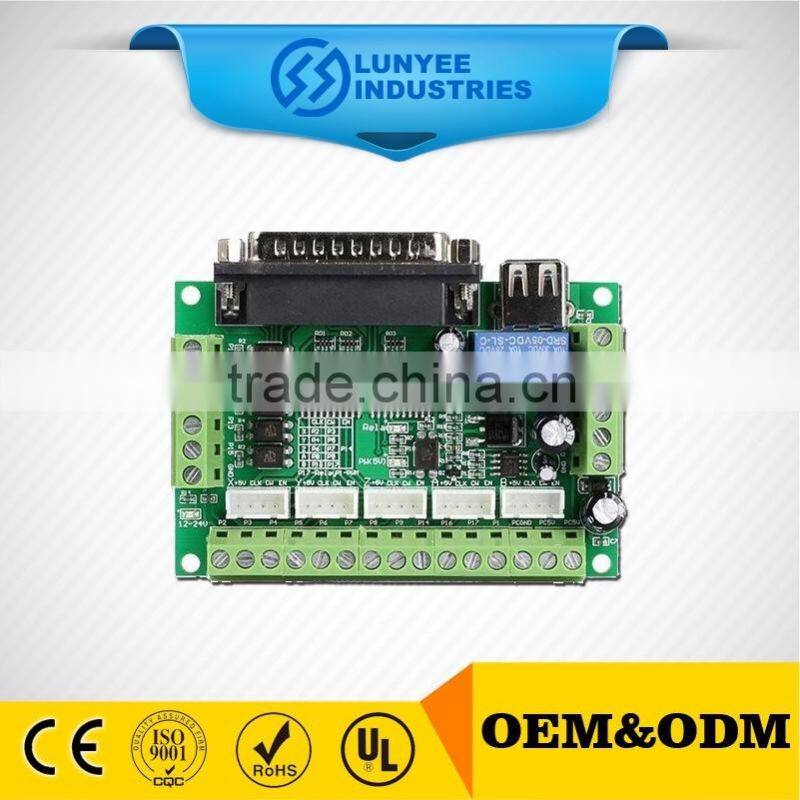

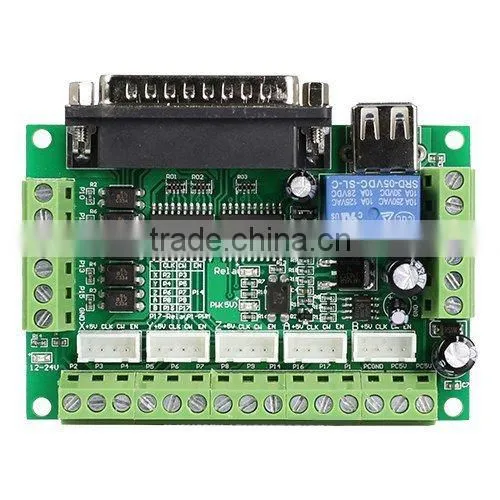

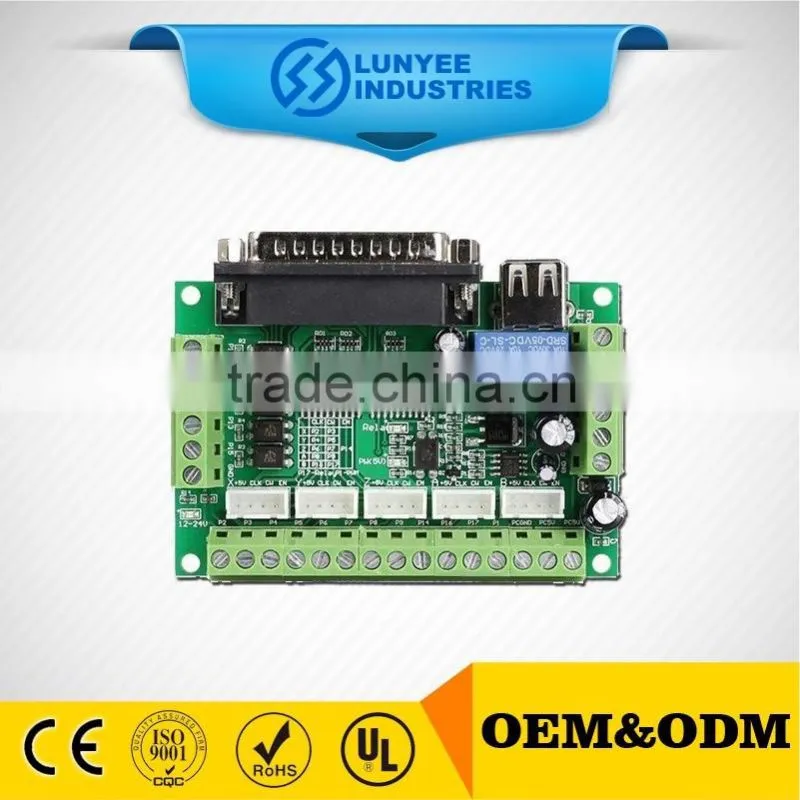

CNC 5 Axis Breakout Board For Stepper Driver Controller mach3 for DIY Project
- 1 x 5 Axis Breakout Board
- 1 x DB25 Cable
- 1 x USB Power Cable

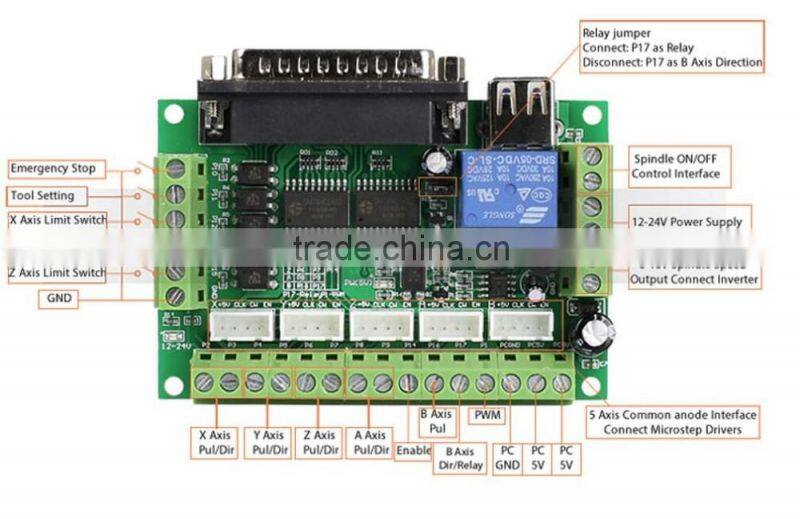

5axis controller board:
The latest upgraded 5 axis breakout board is specially designed for the CNC single axis 2-phase stepper driver controller. The breakout board using high-performance three-state bus driver 74HC244 and Schmitt inverter 74HC14 amplified, The input signal is amplified, rectified, filtered to make the drive capability of the output signal more stable and stronger. With this 5 axis breakout board, any 1-5 Microstepper driver controllers can be directly controlled by the PC via the MACH3, EMC2, KCAM4, etc. parallel-control CNC software.
Features:
1. full support for MACH3, KCAM4, EMC2, and support parallel port to control the host computer software;
2. 5 output signal ,can connect 5 stepper motor driver ;
3. 5 input port, Can connect to the limit switch, emergency stop, or other Input devices ,5 input signal indication LED;
4. One relay, it can be used to control spindle start and stop,1 signal indication LED beside relay;
5. power supply have 2 choice, USB power form computer or an external 5V power supply;
6. pulse and direction signal shaping,enhanced, data transfer speeds reach 10 MBit / S;
7. have 2 kinds connector ,the 4PIN XH connector can connect driver convenient and efficient.
5axis CNC breakout board:
Lunyee Industries has a wide range of stepper motor and related accessories applying to different kinds fields.
Lunyee Company Information:
Chengdu Lunyee Industries Development Co., Ltd. is a leading manufacturer for factory automation (FA) products! We are dedicated in power transmission and motion control solutions! We are a leading manufacturer for power transmission products like AC and DC(brush/brushless)gear motor, stepper motor,high precision planetary gearbox (spur/helical gear)for stepping motor etc.
Our quality:
One professional QC department is built up to inspect all the manufacture process according to international quality standard and our customers’ special requirement! Our factory and our sub-contractors are all qualified ISO9001, 3C, CE, UL, ROHS and other related certification! All products from Lunyee can enjoy a warranty from us!
Our price:
We promise to our customers for the same price, they can enjoy better quality from Lunyee, for the same quality, they can enjoy better service from Lunyee!
Contact us:
