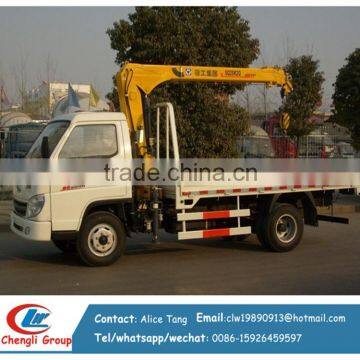

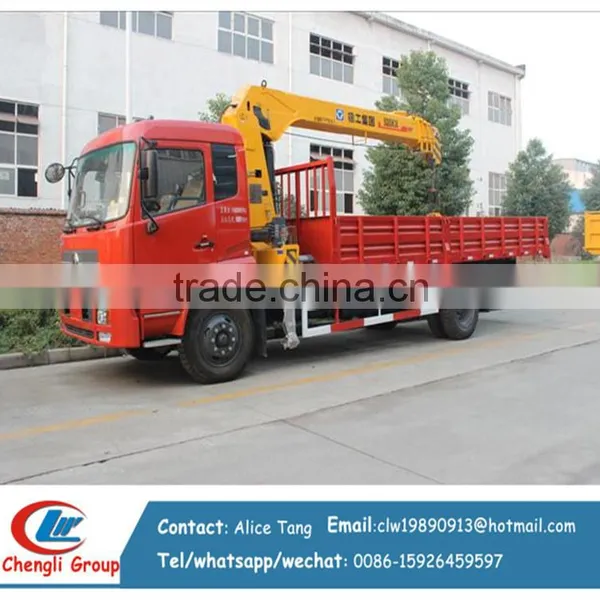

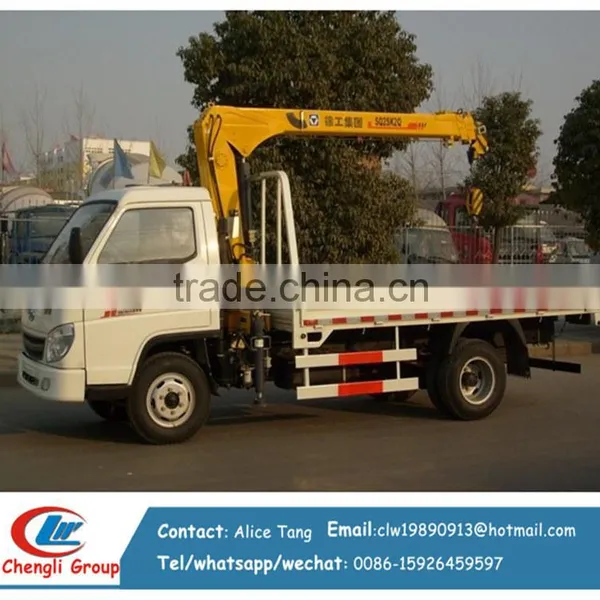

Truck Crane Lifting Arm Truck Crane 10 Ton

US$ 33000.00 - 43000.00 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Construction

Rated Loading Capacity:

7000 Kg

CLW Heavy Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or any port in china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Construction

Rated Loading Capacity 7000 Kg

Rated Lifting Moment 6.72T.M

Max. Lifting Load 7000kg

Max. Lifting Height 14.3m

Span 12.3m

Place of Origin Hubei, China

Brand Name CLW

Model Number CLWCRANE 010

Certification ISO CCC

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

Product Description

truck crane lifting arm truck crane 10 ton

paramater of crane truck

Item	unit		Parameter
Vehicle model			7T Crane Truck (LHD,Euro3)
Horse Power	ps		170
Overall dimension	Mm		800024953350
Internal dimension	mm		47002294600
GVW	Kg		11495
Rated loading capacity			4000
Mass in working order			6900
Wheel base			4700
F/R track base			1900/1800
Approach/departure angle			31/22
Exhaust/Hp	ml/ps		5900/170
Max speed	Km/h		90
Tire specification	9.00-20		Engine type			B170-33
Traction system	4*2		transmission			6-speed
Number of axles	2		Electric system			24v
Operation control system	Electrically hydraulic control		Allowable passengers in cab			3
Equipment	1.Crane can be selected 2.Hydraulic valve is universal in the world on the safe side; three point floating type to protect crossbeam of the truck; all hydraulic pressure and 360°turning; new H-shape type; high precise drawn tube;24°tie-in.
Crane	Number of sections				4
	Max working radius				12.3m
	Max lifting height				14.3m
	Max lifting weight				7000Kg
Working radius (m)	2.5	6.0		10			12.3
Loading weight(Kg)	7000	1750		1000			750
Engine	CUMMINS ENGINE, diesel engine,B170-33 ,170hp
Production cycle	20-25workdays
