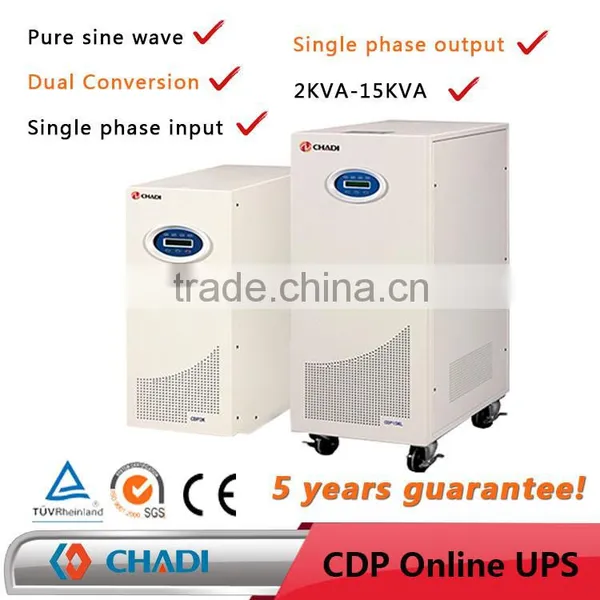

Power Supply 2Kw Ups 2Kva Price

Name: Power Supply 2Kw Ups 2Kva Price
Brand: CHADI
SKU: 116861543

US$ 0.9 - 0.99 MOQ: 1 Piece

Key Specifications

Place of Origin:

China

Brand Name:

CHADI

Model Number:

CDP

Guangdong Cemdeo Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Foshan/Guangzhou/Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name CHADI

Model Number CDP

Phase Single Phase

Protection Other, IP20

Weight 75-100

Output Voltage Single phase 220V±1%

Type On-line

Application Security / Monitoring / Alarm

Specifications

online Power Supply 2Kw Ups 2Kva Price
1.Pure sine wave,Dual Conversion
2.Single phase input,Single phase output
3.2KVA-15KVA

Power Supply 2Kw Ups 2Kva Price

Product Description

Brief Introduction
CHADI CDP series UPS is single input, single output line interactive type UPS, capacity ranged from 2KVAto 15KVA, using full digitalized controlled technology, with the complete detection, protection function, with output isolated transformer, every parameter index possess first level reliability. It complies with standard RS232 portal, optional SNMP internet adaptor or RS485 card, can realize centralized monitoring and remote monitoring, with redundancy parallel operation function, can realize parallel operation for over 10pcs UPS.



Main Features
• High precise pure sine waveform output • Excellent microprocessor control guarantees high reliability • Built-in super smart charger , 90% fully charged in 4 hours • Resistant to loads' dramatical fluctuation • AC start(cold start) • Auto restart function when AC recovering • Full protection: Overload, discharge, and overcharge protection

MODEL	CDP-2K	CDP-3K	CDP-5K	CDP-6K
Rated power	2KVA/1.6KW	3KVA/2.4KW	5KVA/4KW	6KVA/4.8KW
INPUT
Rated voltage	Single phase 81-145 VAC / 162-290 VAC
Frequency	60/50 Hz (Auto sensing)
Max power	3KVA	4.5KVA	7.5KVA	9KVA
OUTPUT
Rated voltage	Single phase 220V±1%
Frequency	50Hz±0.5% / 50Hz±0.5%
Harmonic Distortion	THD ≤3% for linear loads; THD ≤5% for non-linear loads
Overloading capacity	last 10 mins for 120% overload 120%
Current Crest Ratio	3:1
BATTERY
Rated voltage	192Vdc
Battery type	12V sealed maintenance-free battery
Battery Number	16 nos.
Back-up time(min)	13	8	6	5
Charging time	9 hours recover to 90% capacity
System
Transfer time	AC←→battery 0 ms;AC←→bypass < 1 ms
Ingress Protection	IP20
Conversion Efficiency	≥85%(full loading)
noise	<50dB (1 meter)		<53dB (1 meter)
ENVIRONMENT
temperature	0℃~45℃
Humidity	0~95% RH,non-condensing
altitude	<1500m
Size
W×D×H(mm)	260×620×625
Weight
N. weight (kg)	75	80	95	100
