High Speed CNC ATC Spindle Motor And Spindle Servo Motor
- 10000 Piece / Pieces per Month
- Shanghai ningbo shenzhen hongkong
- T/T L/C D/P D/A Credit Card PayPal
- High precision spindle repaire, We are factory : offer High precision spindle repaire service
- High precision spindle repaire, We are factory : offer High precision spindle repaire service
- Ready to ship cnc ac servo drive TAR475CH-10-A66 frame spindle motor fan fanuc
- new type Engraving machine accessories Changsheng brand air-cooled square spindle motor output power spindle motor
- Engraving machine accessories Changsheng brand air-cooled square spindle motor 4.5kw/er32
- Engraving machine accessories Changsheng 80mm circular air-cooled spindle motor 2.2kW Changsheng spindle ER20 / 220V
Product Details
Place of Origin: | China | Brand Name: | INVT | Model Number: | GDZ/DSV |
Application: | Milling | Maximum Torque: | 0.88Nm | Drive: | Other, Inverter |
Operating Speed: | 18000rpm~60000rpm |
Product Description
High Speed CNC ATC Spindle Motor And Spindle Servo Motor
Multiple control modes,Easy to operate,Support multiple communication expansion card,such as Profibus DP,CANOpen,DeviceNet,Good performence so that it can be applied to different CNC system.
The type of servo motor is similar type with Yaskawa,Mitsubishi,Panasonic.Encoder has many options:1024 lines,2500 lines and others.It has high quality,high stability,high precision and widely used.

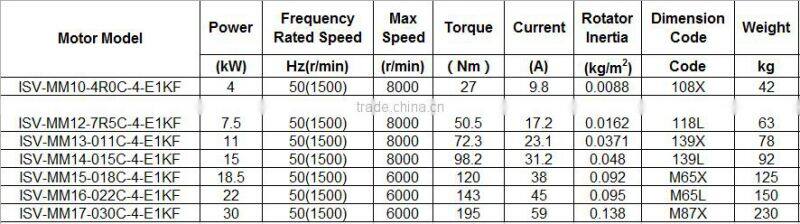

Parameters of ISV MM midium intertia spindle servo motor(High Speed CNC ATC Spindle Motor And Spindle Servo Motor)

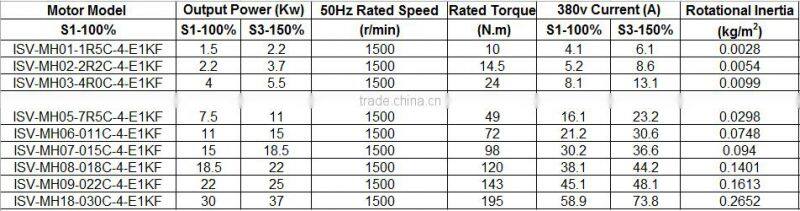

Parameters of ISV MH high intertia spindle servo motor(High Speed CNC ATC Spindle Motor And Spindle Servo Motor)

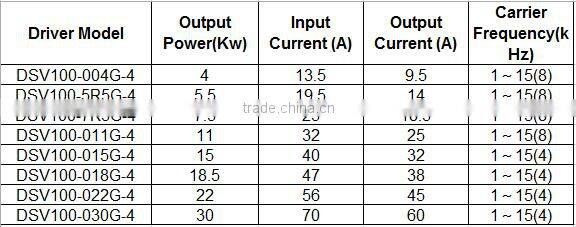

Driver parameter(High Speed CNC ATC Spindle Motor And Spindle Servo Motor)

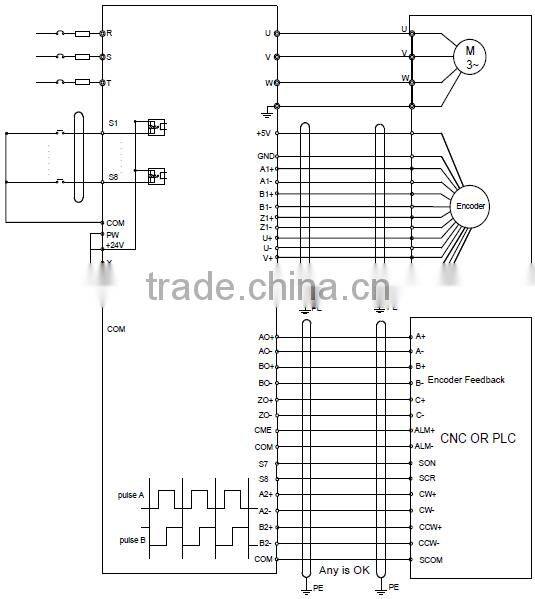

Wiring diagram

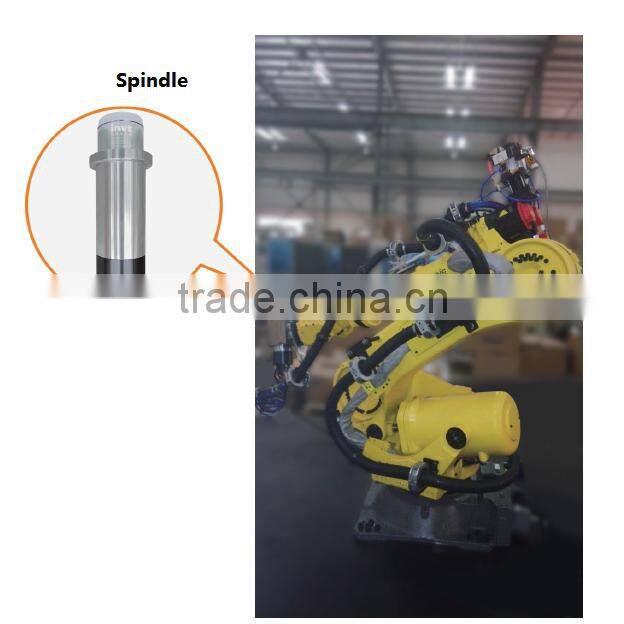

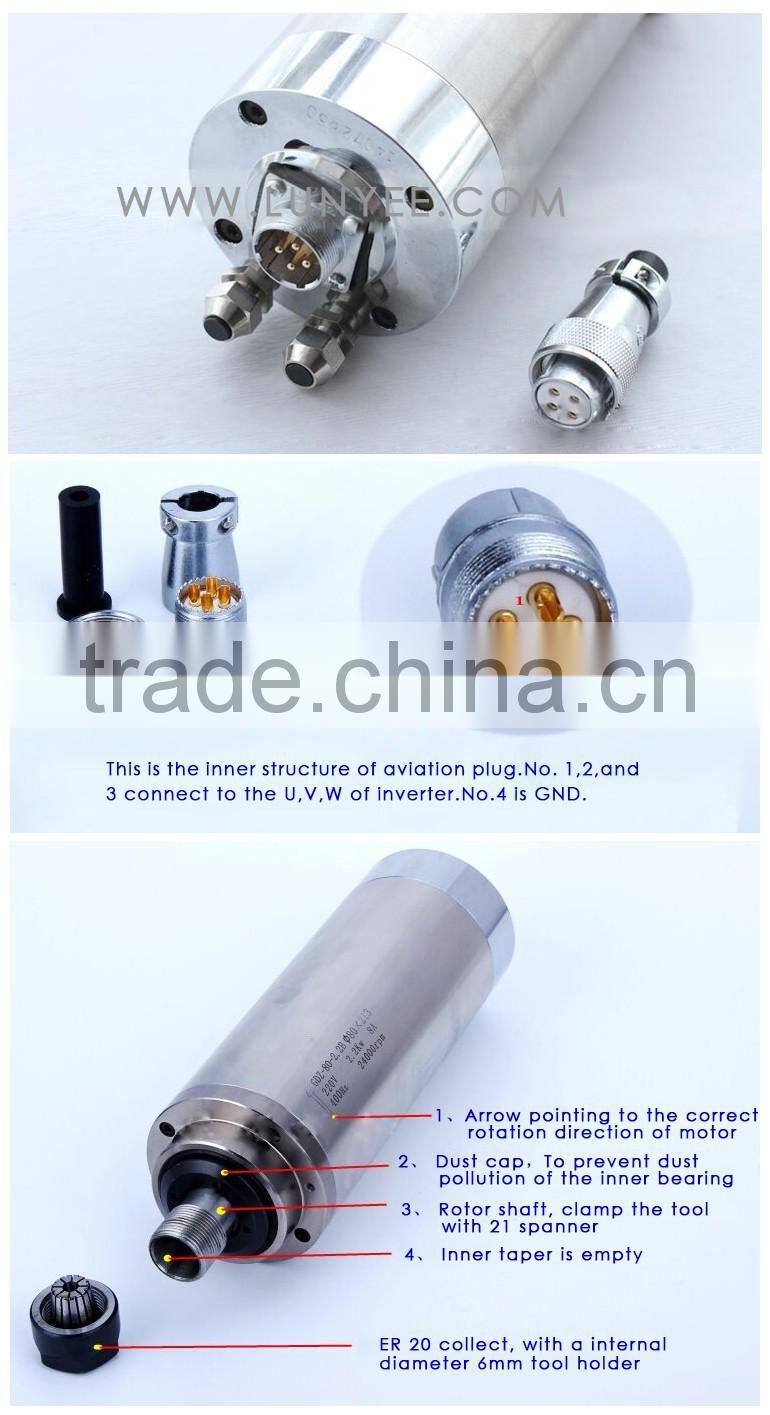

Spindle Parts

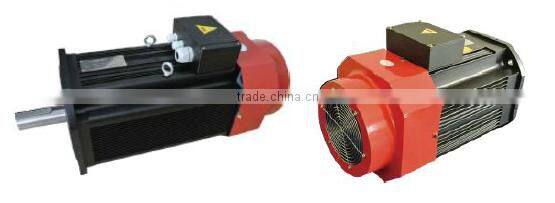

Product images
1) Electronics Manufacturing Equipment: winding machine, stripping machine, battery manufacturing equipment, LED manufacturing equipment, dispenser, plug-ins, etc.;
2) CNC Equipment: EDM, wire cutting, CNC lathe, milling machine, deep hole drilling, bending machine, spring machine, etc.;
3) Packaging Machinery: bag making machine, sealing machine, blister packing machine, pillow packing machine, labeling machine, etc.;
4) Printing Machinery: screen printing, adhesive label printing machine, paper cutting machine, cutting machine, hot stamping machine, folding machine, etc.;
5) Textile Machinery: computerized flat knitting machines, embroidery machines, air-jet looms, water jet looms, rapier looms, warp knitting machines;
6) Plastics Machinery: unloading robots, automatic blow molding machines;
7) Other: glass equipment, hoop bending machines, test equipment.
For complete servo solution,freely contact us.We will design accoridng your requirement.
High Speed CNC ATC Spindle Motor And Spindle Servo Motor
We, Chengdu Lunyee Industries Development Co., Ltd.,are a leading manufacturer for factory automation(FA) products!
1,transmission products: AC and DC(brush/brushless) gear motor
2,highprecision planetary gearbox(spur/helical gear),servo motor and stepping motor
3,linear bushing,linear guide,ball screw,locking nut and coupling and so on!
You may be also interested in other of our products! For more details please visit us at
http://lunyee.en.china.cn
Pls check our catalog
pls feel free to inform us your request power,voltage,speed, torque,qty and other informations to get our price and leading time!
