Best 7 Inch Cheap Tablet pc With Widescreen TFT LCD Touch Screen and Fanless Cooling System

Best 7 Inch Cheap Tablet pc With Widescreen TFT LCD Touch Screen and Fanless Cooling System thumbnail-1
Best 7 Inch Cheap Tablet pc With Widescreen TFT LCD Touch Screen and Fanless Cooling System photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Screen Size:
Other, 7"
Processor Manufacture:
AMD
Contact Supplier Request Quote Chat Now
Shenzhen Yanzchao Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Screen Size Other, 7"
Processor Manufacture AMD
Processor Type Other, AMD Geode
Processor Main Frequency 1.6GHz
Memory Capacity 1GB
Touch Screen Type Resistance Screen
Display resolution 800x480
Weight 0.6 Kg
Place of Origin Guangdong, China
Brand Name IEI
Model Number AFL-07A-LX

AFL-W07A-N26 7'' Intel Atom N2600 1.6GHz Processor soft touch screen industrial panel pc

Product Description



Features
  1. 7” widescreen WVGA LED backlight TFT LCD with resistive touch screen
2. 9V~28V wide range DC power input (for Intel® N2600 platform)
3. Compact design with plastic housing
4. Fanless cooling system
5. Selectable AT/ATX power mode
6. System memory up to 2 GB SDRAM
7. Built-in 802.11b/g/n Wireless LAN
8. Built-in speakers
9. One compactFlash® slot
10. IP 64 compliant front panel
11. IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggest with over 4GB storage capacity)

 Specifications

LCD Size 7"
Max Resolution 800 x 480
Brightness (cd/m2) 500
Contrast Ratio 400:1
LCD Color 262K
Pixel Pitch (mm) 0.0635 (H) x 0.1905 (V)
Viewing Angle (H-V) 140º / 110º
Backlight MTBF 50000 hrs (LED Backlight)
SBC Model AFLMB-LX800
CPU AMD Geode LX 800 (500MHz)
Chipset AMD LX800 + AMD CS5536
RAM Supports one 333MHz or 400MHz DDR SO-DIMM (1GB Max.)
I/O Ports and Switches 1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for 10/100Mbps LAN
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack
1 x Audio Jack (Line-out)
SSD CF Type II
Watchdog Timer Software programmable supports 1~255 sec. System reset
Audio AMP 1.5W + 1.5W (internal speaker)
Wireless 1 x Wireless LAN 802.11 b/g Module (internal Mini PCI interface)
Touch Screen 4-wire Resistive Type (touch controller IC is on board)
Construction Material ABS + PC Plastic front frame
Mounting Panel, Wall, Rack, Stand or Arm mounting VESA 75mm x 75mm
LED Function 1 x LED on front panel for power on/off
Front Panel Color Gray 7539U
Dimension (WxHxD) (mm) 226 x 140 x 41
Operating Temperature (°C) (Ambient with air flow) 0~50℃
Storage Temperature (℃) -20℃~60℃
EMC CE / FCC
Weight 0.6 Kg
IP Level(front panel) Front Frame IP64
Safety CE / FCC
Power Adapter P/N: 63000-FSP036RAB608-RS
36W Power Adapter (Meet PSE)
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
Power Requirement 12VDC
Power Consumption 20W

 Ordering Information

Part No. Description
AFL-07A-LX/R/512-R22 7” 500 cd/m², WVGA fanless panel PC with AMD LX-800 CPU, AT/ATX mode, 802.11b/g Wireless Module, Touch screen and 512MB DDR RAM, R22

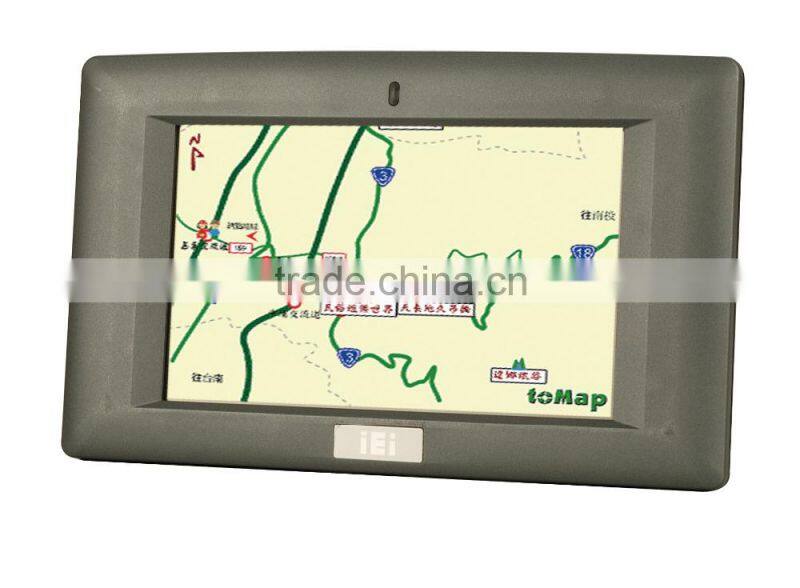

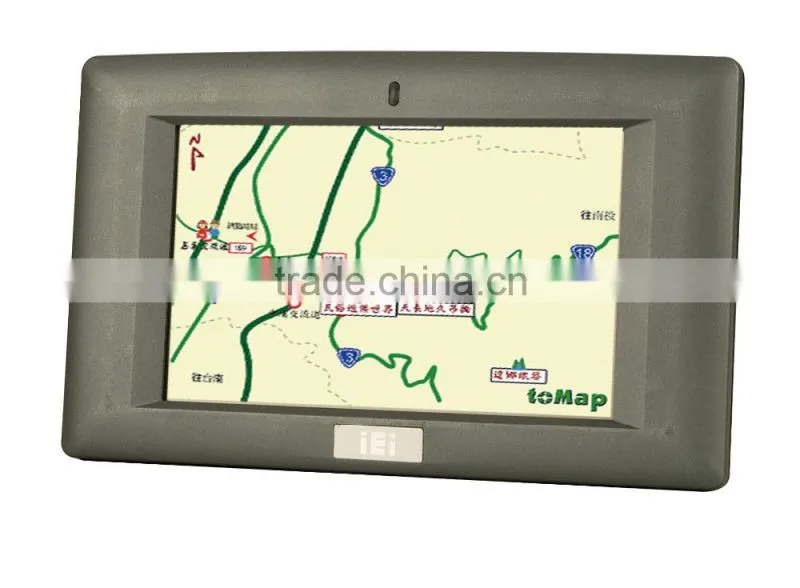

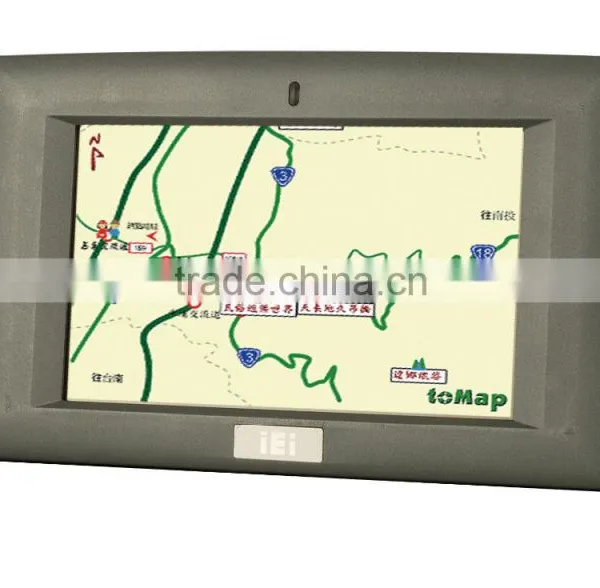

 Picture:

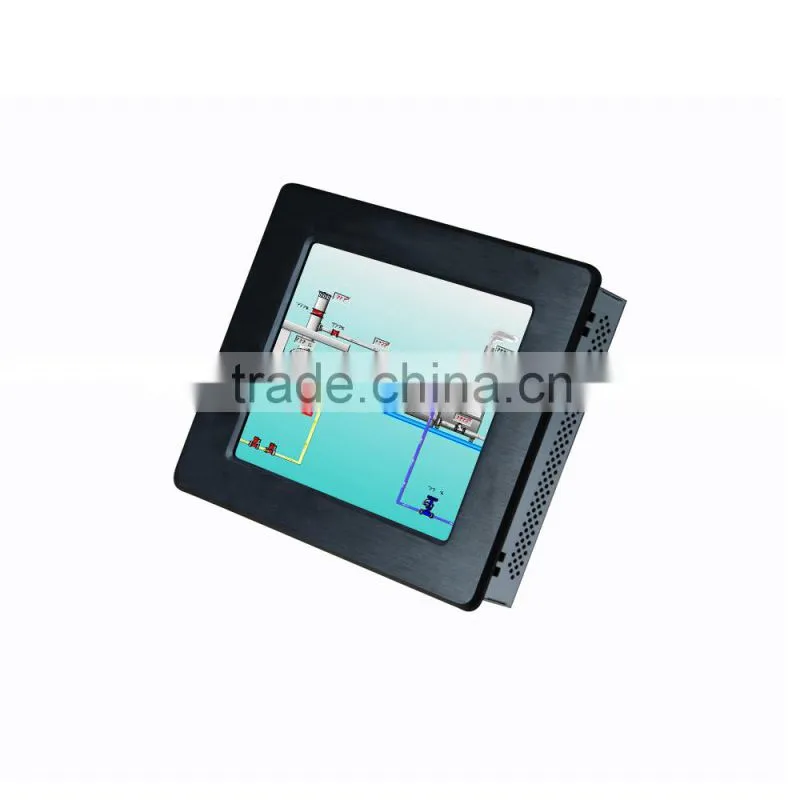

best 7 inch cheap tablet pc with widescreen TFT LCD touch screen and Fanless cooling system

The similar products:

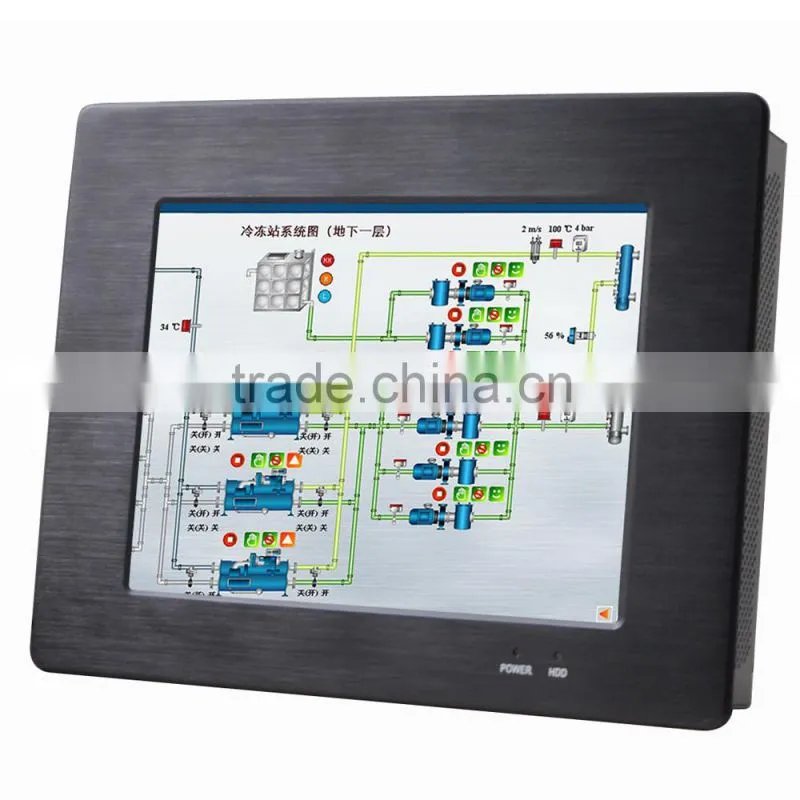

best 7 inch cheap tablet pc with widescreen TFT LCD touch screen and Fanless cooling systembest 7 inch cheap tablet pc with widescreen TFT LCD touch screen and Fanless cooling systembest 7 inch cheap tablet pc with widescreen TFT LCD touch screen and Fanless cooling system

           PPC-1700                                        PPC-1500                                             PPC-1000



best 7 inch cheap tablet pc with widescreen TFT LCD touch screen and Fanless cooling systembest 7 inch cheap tablet pc with widescreen TFT LCD touch screen and Fanless cooling systembest 7 inch cheap tablet pc with widescreen TFT LCD touch screen and Fanless cooling system

            ICP-084                                          ICP-151                                                 ICP-121

The popular products

best 7 inch cheap tablet pc with widescreen TFT LCD touch screen and Fanless cooling systembest 7 inch cheap tablet pc with widescreen TFT LCD touch screen and Fanless cooling systembest 7 inch cheap tablet pc with widescreen TFT LCD touch screen and Fanless cooling system

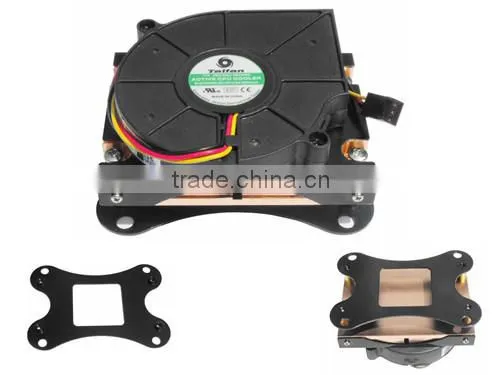

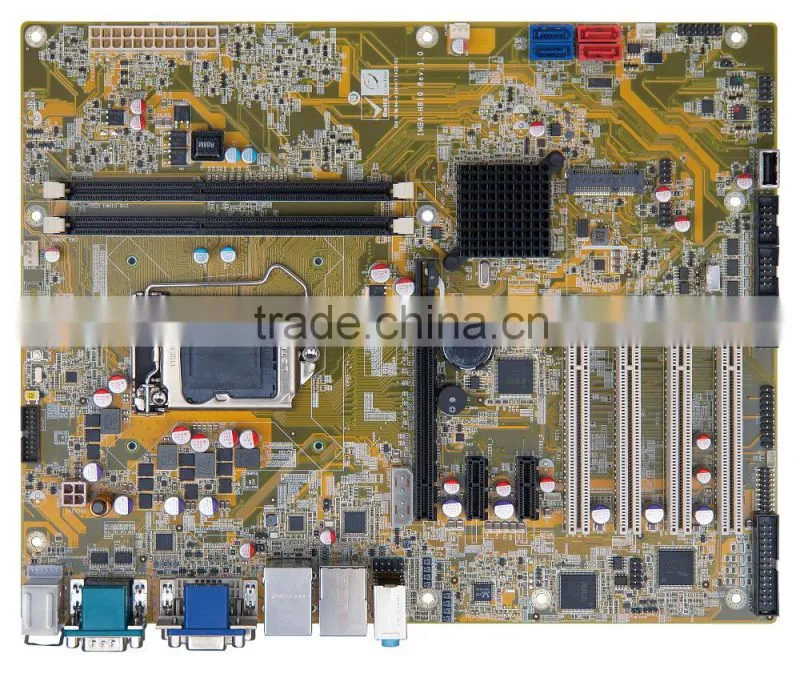

                  IMBA-H810                             478 Active CPU Cooler                               2980U



best 7 inch cheap tablet pc with widescreen TFT LCD touch screen and Fanless cooling systembest 7 inch cheap tablet pc with widescreen TFT LCD touch screen and Fanless cooling systembest 7 inch cheap tablet pc with widescreen TFT LCD touch screen and Fanless cooling system

               IPC-10251 PLUS              IPC-1025 PLUS                                           ECN-780-Q67



Company Information

Basic Information

 Business Type: Manufacturer, Trading Company

Main Products: Embedded Computers, HTPC, BOX PC, all-in-ones, industrial motherboard, industrial CPU, induatrial full-size CPU card, industrial half-size short card, industrial panel PC, industrial chassis and so on



Trade & Market



Main Markets: South Asia

Southern Europe

Northern Europe

Central America

Western Europe

Eastern Asia

Mid East

Oceania

Africa

Southeast Asia

Eastern Europe

South America

North America



Factory Information



Factory Size (ters):  square meters

Factory Location:  2F, No.4, South lane , The Fifth Industrial Area, Industrial Road, Longhua New District, Shenzhen 518109, CHINA .

Contract Manufacturing: OEM Service Offered Design Service Offered

Our Services

 FAQ

1.What's your minimum order?



A: Our minimum order quantity(MOQ) is 1pcs.



2.Can you provide OEM service?



A: Sure, you can choose RAM, storage, wifi, interface port and OS freely



3. Can you arrange the shipment? Since it's my first time to buy from China.



A: Sure, we can arrange a trustworthy shipping company the arrange the shipment for you!



4. Can you put my brand name (logo) on these products?



Yes,.We can support OEM/ODM service, the process of customization is following:



1) provide your specific requirement.



2) our design engineer draw the design draft.



3) you confirm the design draft.



4) we start produce it.



Please contact me any time , if you have any problems! We will provide you the best service!
