Products Status Stock
Screen Size Other, 21.5'
Processor Manufacture Intel
Processor Type Intel Pentium
Touch Screen Type Capacitive Screen
Display resolution Other, 1920 (W) x 1080 (H)
Place of Origin Guangdong, China
Brand Name IEI
Model Number POC-W22A-H81
Color White

21.5" Medical Grade Panel PC/Tablet PC/kits/production with Intel H81

Product Description
Features
  1. W21.5” 16:9 LED panel with FHD (1920 x 1080)
2. 4th generation Intel® Core™ i5/i3/Pentium® CPU
3. Projected capacitive touch screen supports multi-touch
4. IP65 compliant front bezel
5. Anti-bacteria cover
6. Optional 3-in-1 card reader: MSR, SCR and fingerprint
7. Optional Mifare RFID module
8. Optional internal 54W battery module
9 Optional VoIP phone handset
10. Optional handle module with barcode scanner and reading light



LCD Size (inch) W21.5'' (16:9)
Max. Resolution 1920 (W) x 1080 (H)
Brightness (cd/m²) 250
Contrast Ratio 1000 : 1
LCD Color 16.7M
Viewing Angle (H-V) 170°/160°
Touch Screen Projected capacitive type with USB interface
CPU 4th generation Intel® Core™ i5/i3/Pentium® CPU
Chipset Intel® H81
I/O Ports 1 x RS-232/422/485
2 x GbE LAN by RJ-45 (1 for iRIS)
1 x Power button
1 x VGA output
1 x HDMI output
1 x 9V~28V DC Jack
2 x USB 3.0
4 x USB 2.0 (2 for bottom and 2 for side)
1 x RJ-11 for barcode module
Audio 2 x 3W speaker
Construction Material ABS+PC plastic with anti-bacterial material
Mounting VESA 100 x 100
Dimensions (WxHxD) (mm) 542.5 mm x 349.5 mm x 52 mm
Operating Temperature (°C) 0°C~40°C
IP Level IP65 compliant front panel
Power Adapter 120W medical power adapter: Input: 100V~240V AC, Output: 19V DC
Backlight 30000 (LED backlight)
Wireless IEEE 802.11 a/b/g/n/ac 1T1R module
Webcam 2-megapixel CMOS front-facing camera with auto-focus
Microphone digital microphone
RFID Optional: Mifare 13.56 MHz card reader
Remote control 1 x iRIS-2400 slot (iRIS remote management model)



Part No. Description
POC-W22A-H81i-P/PC/4G-R11 21.5” 250cd/m² FHD medical panel PC with Intel® H81 chipset, Intel® Pentium® G3320TE processor (dual core, 2.3 GHz, TDP 35W), two 2 GB DDR3 RAM, 802.11a/b/g/n/ac Wi-Fi module, projected capacitive touchscreen, 2M camera, microphone, support iRIS-2400, R11
POC-W22A-H81i-i3/PC/4G-R11 21.5” 250cd/m² FHD medical panel PC with Intel® H81 chipset, Intel® Core™ i3-4330TE processor (dual core, 2.4 GHz, TDP 35W), two 2 GB DDR3 RAM, 802.11a/b/g/n/ac Wi-Fi module, projected capacitive touchscreen, 2M camera, microphone, support iRIS-2400, R11
POC-W22A-H81i-i5/PC/4G-R11 21.5” 250cd/m² FHD medical panel PC with Intel® H81 chipset, Intel® Core™ i5-4570TE processor (dual core, 2.7 GHz, TDP 35W), two 2 GB DDR3 RAM, 802.11a/b/g/n/ac Wi-Fi module, projected capacitive touchscreen, 2M camera, microphone, support iRIS-2400, R11

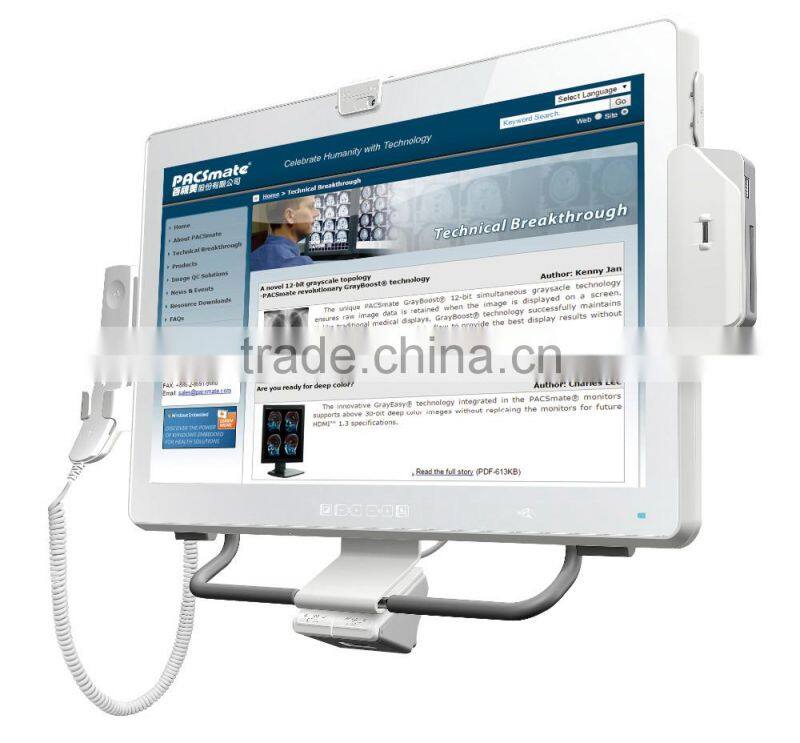

 Picture:

21.5" Medical Grade Panel PC/Tablet PC/kits/production with Intel H81

The similar products:

21.5" Medical Grade Panel PC/Tablet PC/kits/production with Intel H8121.5" Medical Grade Panel PC/Tablet PC/kits/production with Intel H8121.5" Medical Grade Panel PC/Tablet PC/kits/production with Intel H81

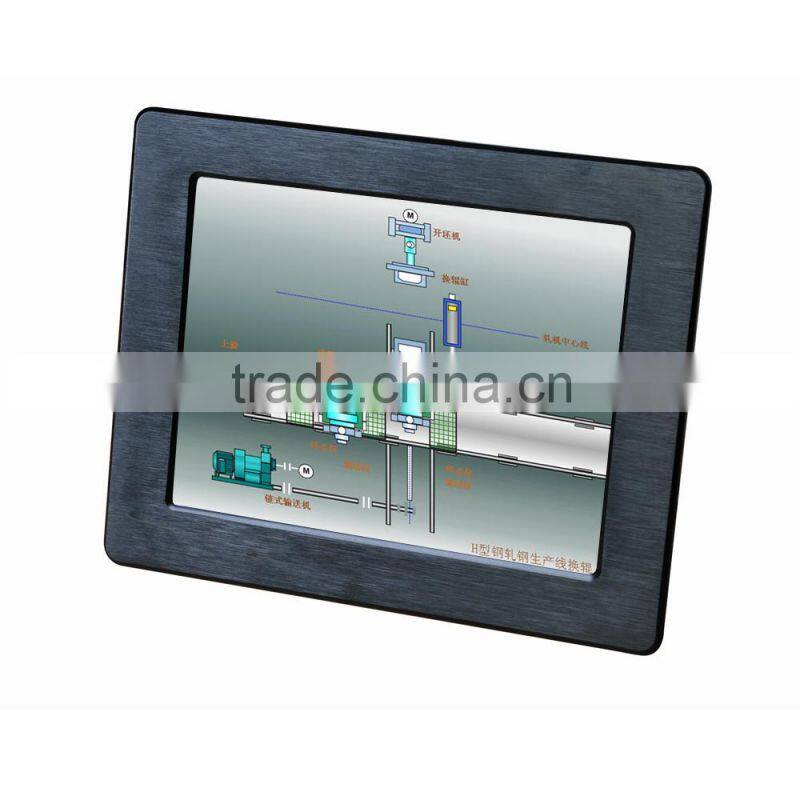

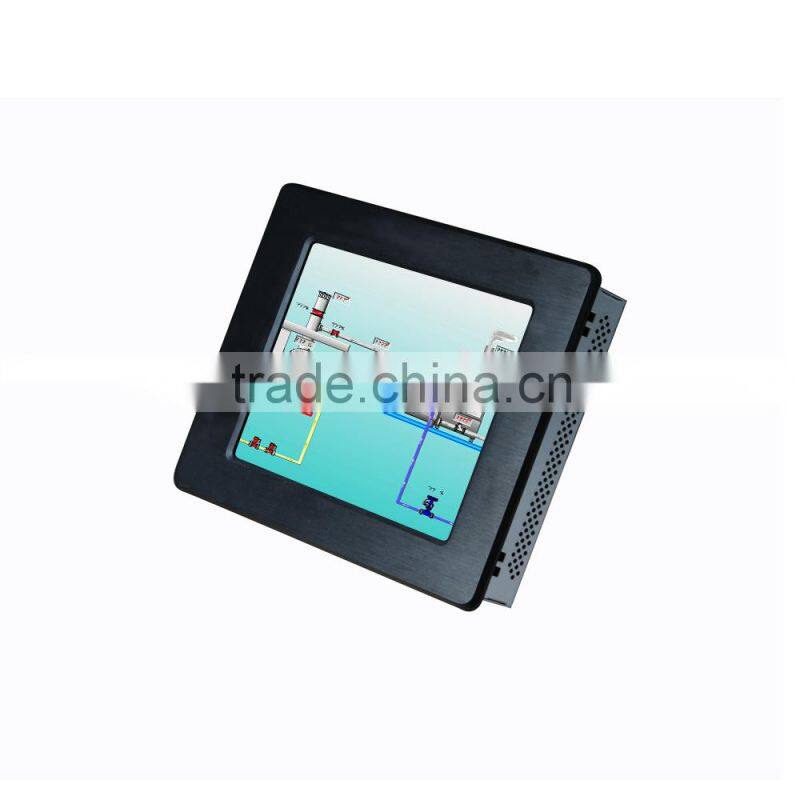

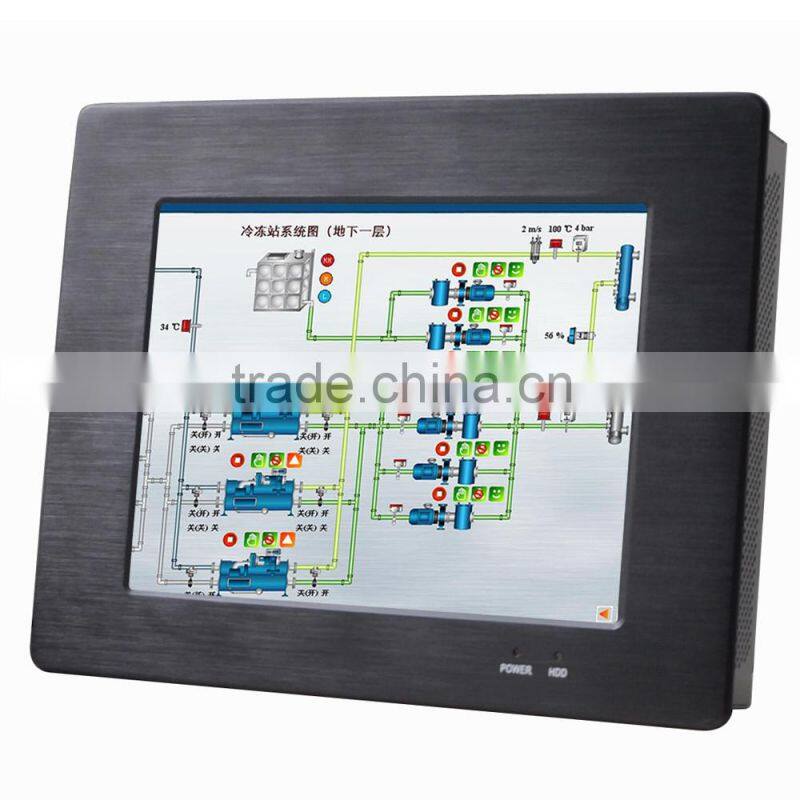

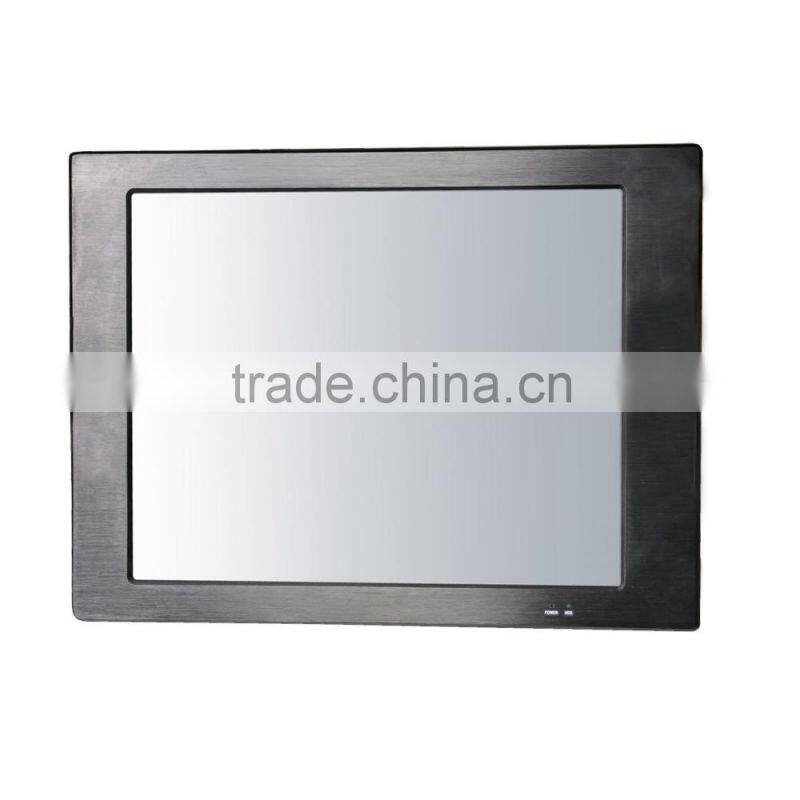

           PPC-1700                                        PPC-1500                                             PPC-1000



21.5" Medical Grade Panel PC/Tablet PC/kits/production with Intel H8121.5" Medical Grade Panel PC/Tablet PC/kits/production with Intel H8121.5" Medical Grade Panel PC/Tablet PC/kits/production with Intel H81

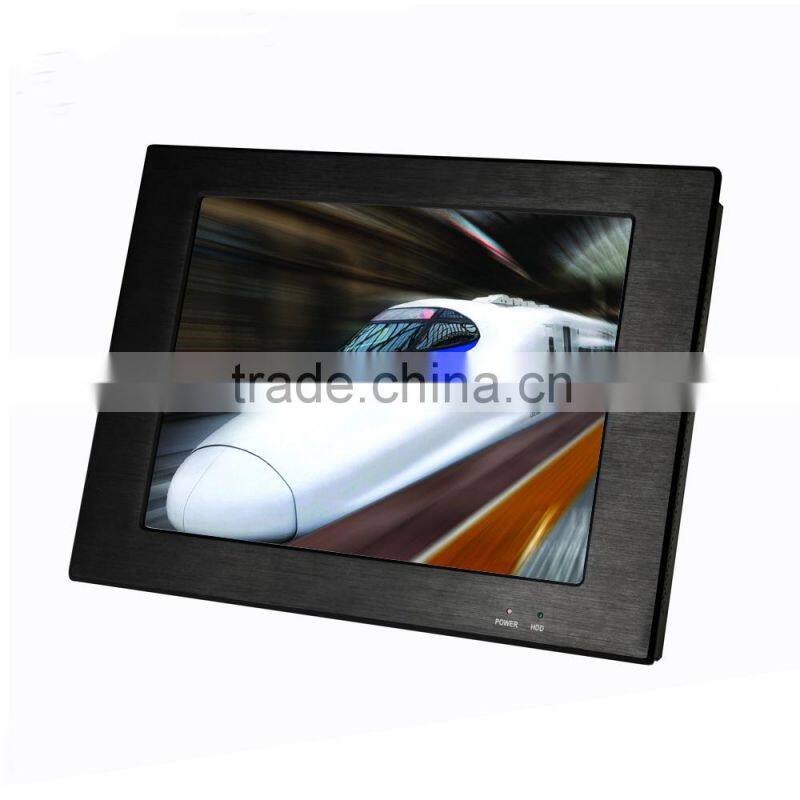

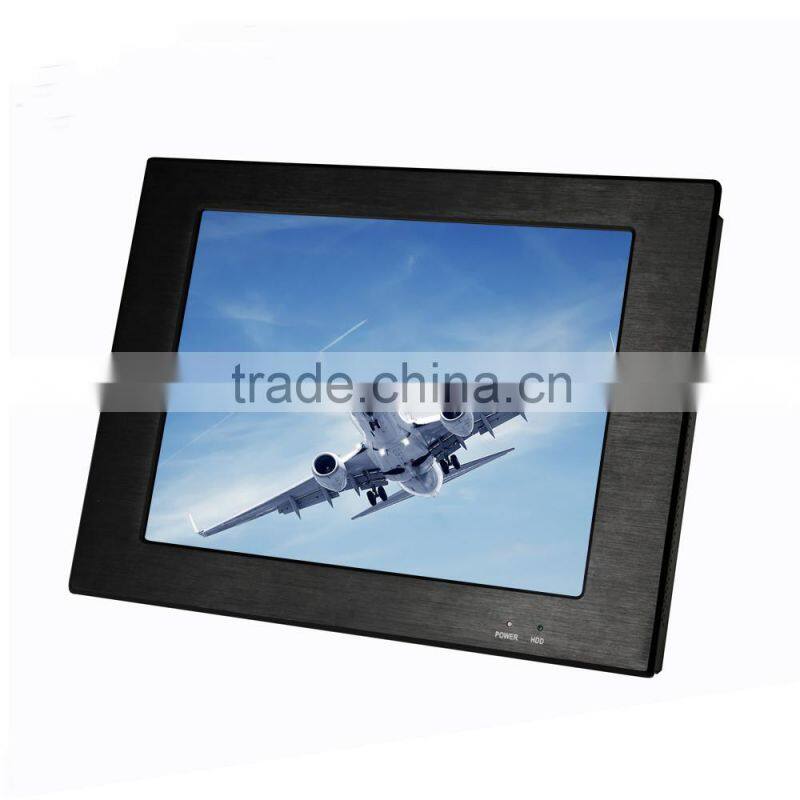

            ICP-084                                          ICP-151                                                 ICP-121

The popular products

21.5" Medical Grade Panel PC/Tablet PC/kits/production with Intel H8121.5" Medical Grade Panel PC/Tablet PC/kits/production with Intel H8121.5" Medical Grade Panel PC/Tablet PC/kits/production with Intel H81

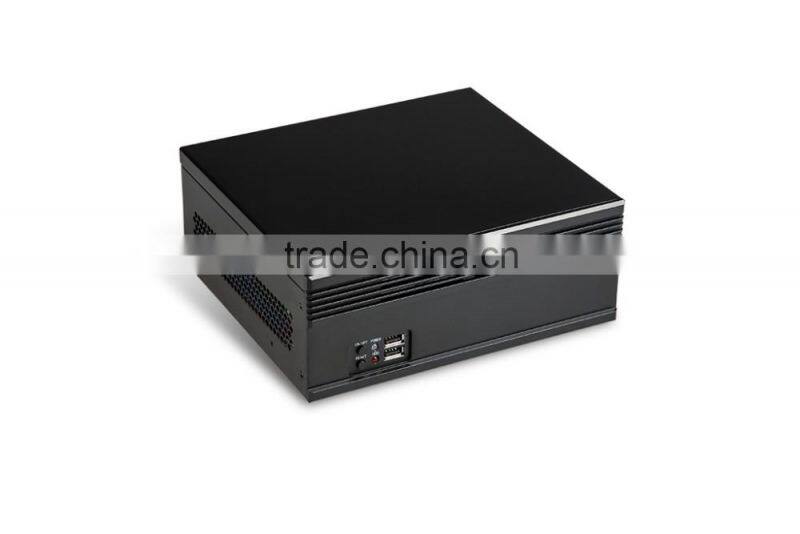

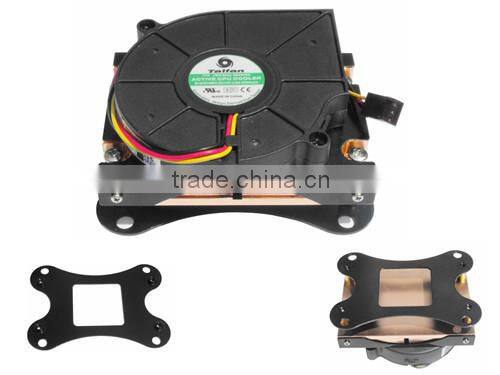

                  IMBA-H810                             478 Active CPU Cooler                               2980U



21.5" Medical Grade Panel PC/Tablet PC/kits/production with Intel H8121.5" Medical Grade Panel PC/Tablet PC/kits/production with Intel H8121.5" Medical Grade Panel PC/Tablet PC/kits/production with Intel H81

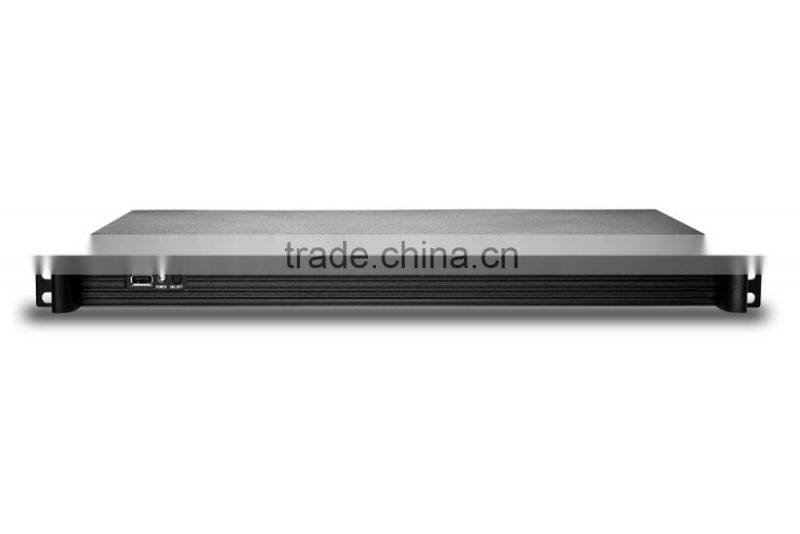

               IPC-10251 PLUS              IPC-1025 PLUS                                           ECN-780-Q67
