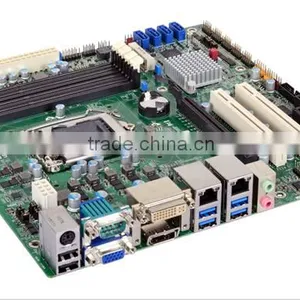

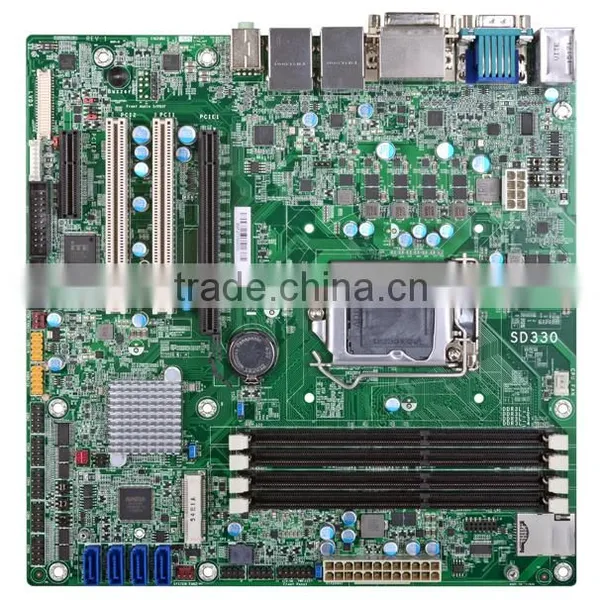

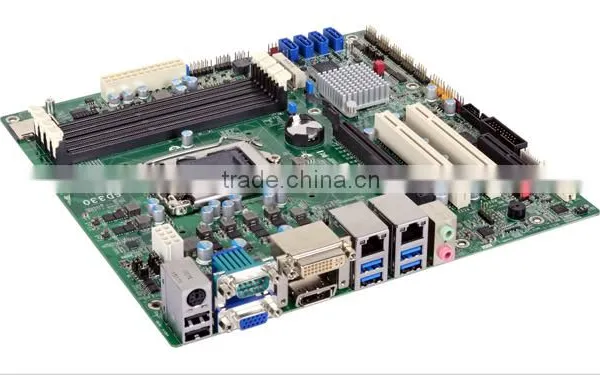

the latest Industrial Motherboard microATX ddr4 DIMM Intel Q170 i3/i5/i7
| Features | |
Processor |
6th Gen Intel® Core™ |
Chipset |
Intel® Q170 |
Memory |
4 DDR4 DIMM up to 64GB |
Expansion |
1 PCIe x16 1 PCIe x4 1 Mini PCIe 2 PCI |
Display |
1 DP++ 1 LVDS 1 DVI (DVI-D signal) 1 VGA |
Storage |
4 SATA 3.0 RAID 0/1/5/10 |
Features |
2 LAN 6 COM 6 USB 3.0 6 USB 2.0 8-bit DIO ATX |

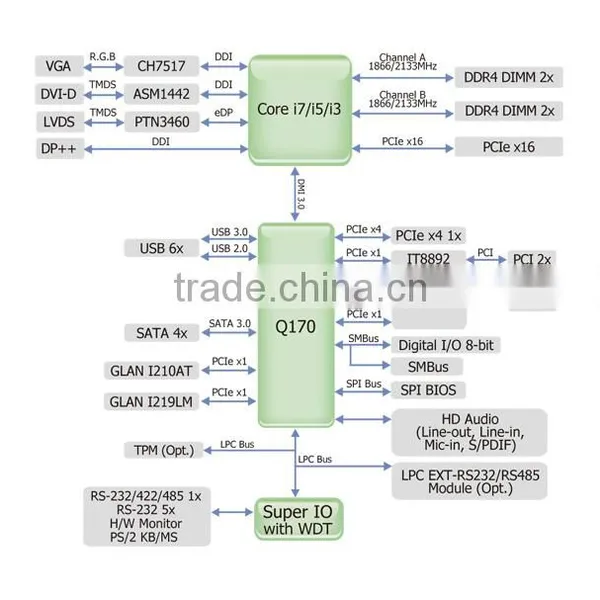

| SYSTEM | |||
| Processor | 6th Generation Intel® Core™ Processors, LGA 1151 SocketIntel® Core™ i7-6700 Processor, Quad Core, 8M Cache, 3.4GHz (4.0GHz), 65WIntel® Core™ i7-6700TE Processor, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35WIntel® Core™ i5-6500 Processor, Quad Core, 6M Cache, 3.2GHz (3.6GHz), 65WIntel® Core™ i5-6500TE Processor, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35WIntel® Core™ i3-6100 Processor, Dual Core, 3M Cache, 3.7GHz, 47WIntel® Core™ i3-6100TE Processor, Dual Core, 4M Cache, 2.7GHz, 35WIntel® Pentium® Processor G4400, Dual Core, 3M Cache, 3.3GHz, 47WIntel® Pentium® Processor G4400TE, Dual Core, 3M Cache, 2.4GHz, 35W | ||
| Chipset | Intel® Q170 | ||
| Memory |
|
||
| BIOS | Insyde SPI 128Mbit | ||
| GRAPHICS | |||
| Controller | Intel® HD Gen 9 Graphics | ||
| Feature | OpenGL 5.0, DirectX 12, OpenCL 2.1HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 | ||
| Display |
|
||
| Triple Displays |
|
||
| EXPANSION | |||
| Interface | 1 x PCIe x16 (Gen 3)1 x PCIe x4 (Gen 2)2 x PCI1 x Full-size Mini PCIe (USB/PCIe/mSATA, PCIe by default)1 x SIM | ||
| AUDIO | |||
| Audio Codec | Realtek ALC888S-VD2-GR | ||
| ETHERNET | |||
| Controller | 1 x Intel® I210AT PCIe (10/100/1000Mbps)1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT) | ||

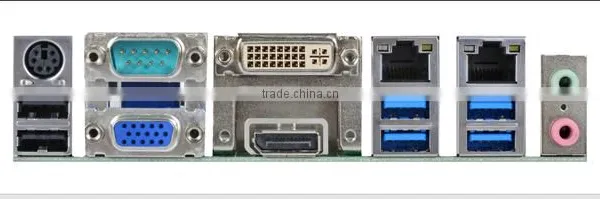

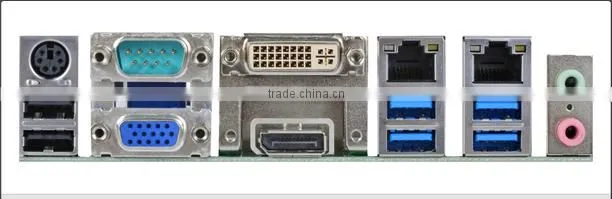

| REAR I/O | |||
| Ethernet | 2 x GbE (RJ-45) | ||
| Serial | 1 x RS-232/422/485 (RS-232 w/ power) (DB-9) | ||
| USB | 4 x USB 3.02 x USB 2.0 | ||
| PS/2 | 1 x PS/2 (mini-DIN-6) | ||
| Display | 1 x VGA1 x DVI (DVI-D signal)1 x DP++ | ||
| Audio | 1 x Line-out1 x Mic-in1 x Line-in (available upon request) | ||
| INTERNAL I/O | |||
| Serial | 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)4 x RS-232 (2.54mm pitch) | ||
| USB | 2 x USB 3.0 (2.00mm pitch)4 x USB 2.0 (2.54mm pitch) or2 x USB 2.0 (2.54mm pitch) + 1 x Vertical USB 2.0 (type A) (available upon request) | ||
| Audio | 1 x S/PDIF | ||
| SATA |
|
||
| DIO | 1 x 8-bit DIO | ||

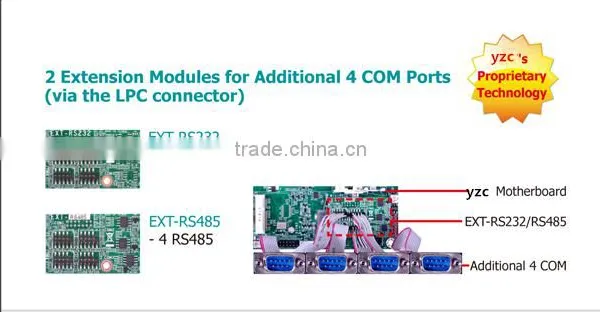

| LPC | 1 x LPC (supports LPC EXT-RS232/RS485 module) | ||
| SMBus | 1 x SMBus | ||
| WATCHDOG TIMER | |||
| Output & Interval | System Reset, Programmable via Software from 1 to 255 Seconds | ||
| SECURITY | |||
| TPM | Available Upon Request | ||
| POWER | |||
| Type | ATX | ||
| Connector |
|
||
| Consumption | TBD | ||
| RTC Battery | CR2032 Coin Cell | ||
| OS SUPPORT | |||
|
|||
| ENVIRONMENT | |||
| Temperature |
|
||
| Humidity |
|
||
