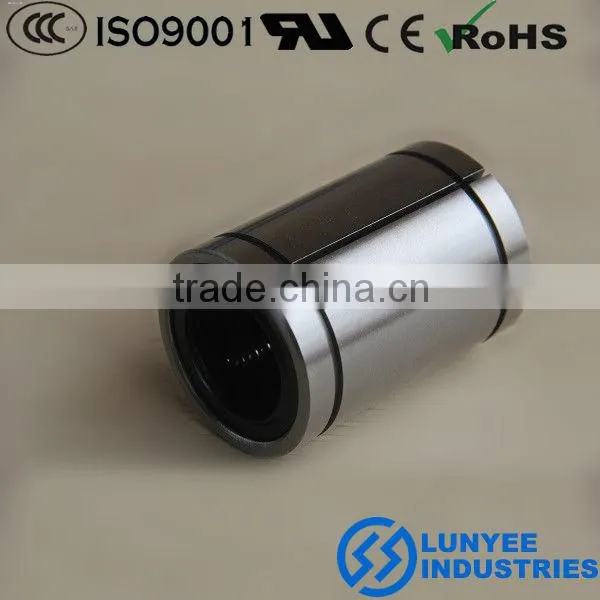

Textile Printer Machine Sliding Linear Bearing
US$ 1 - 1,000
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
LUNYEE
Precision Rating:
P0
Model Number:
LM13AJ
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LM12UU Ball Bearing LinearUS$ 1 - 30MOQ: 10 Pieces -
High Dm-N Value Ball Screw PriceUS$ 1 - 1,000MOQ: 1 Set
-
Injection Machine Ball Screw PriceUS$ 1 - 1,000MOQ: 1 Set
-
High Quality Rolled Processing Ball Screw for CNC MachinesUS$ 40 - 85MOQ: 1 Set
-
Left Thread Ball Screw PriceUS$ 1 - 1,000MOQ: 1 Set
Brand Name
LUNYEE
Precision Rating
P0
Model Number
LM13AJ
Place of Origin
Sichuan, China
Specifications
Textile printer machine sliding linear bearing1.Stainless steel
2.Double seal,dust prevention
3.POM retainer
4.ISO9001:2000
LUNYEE-Ensure linear motion more smoothly!

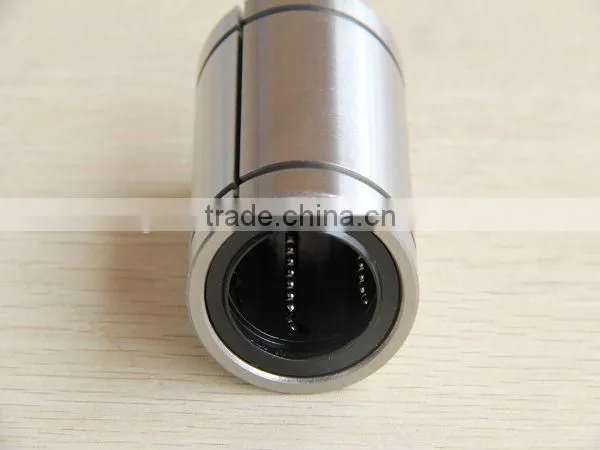

Textile printer machine sliding linear bearing
Features
• Stainless steel- longer working life
• Double seals-dust prevention, ensure balls rotary freely
Certificates

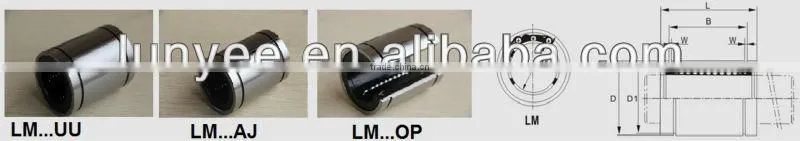

Textile printer machine sliding linear bearing -LM series linear bearing
| MODEL NO. | NUMBER OF BALL ROWS | MODEL NO. | NUMBER OF BALL ROWS | MODEL NO. | NUMBER OF BALL ROWS | BORE DIAMETER |
| LM3UU | 4 | 3 | ||||
| LM4UU | 4 | 4 | ||||
| LM5UU | 4 | 5 | ||||
| LM6UU | 4 | LM6AJ | 4 | 6 | ||
| LM8SUU | 4 | LM8SAJ | 4 | 8 | ||
| LM8UU | 4 | LM8AJ | 4 | 8 | ||
| LM10UU | 4 | LM10AJ | 4 | LM10OP | 3 | 10 |
| LM12UU | 4 | LM12AJ | 4 | LM12OP | 3 | 12 |
| LM13UU | 4 | LM13AJ | 4 | LM13OP | 3 | 13 |
| LM16UU | 5 | LM16AJ | 5 | LM16OP | 4 | 16 |
| LM20UU | 5 | LM20AJ | 5 | LM20OP | 4 | 20 |
| LM25UU | 6 | LM25AJ | 6 | LM25OP | 5 | 25 |
| LM30UU | 6 | LM30AJ | 6 | LM30OP | 5 | 30 |
| LM35UU | 6 | LM35AJ | 6 | LM35OP | 5 | 35 |
| LM40UU | 6 | LM40AJ | 6 | LM40OP | 5 | 40 |
| LM50UU | 6 | LM50AJ | 6 | LM50OP | 5 | 50 |
| LM60UU | 6 | LM60AJ | 6 | LM60OP | 5 | 60 |
Mounting Direction and Notice
When inserting the linear bearing to the housing , do not hit on the side ring which holding the retainer, but apply the cylinder circum with a proper jig and push the linear bearing into the housing by hand or lightly knok. (Fig.1)
Applications
- CNC machine, Printing machine
- Packing machine, Conveying machine
- Food processing machine, Lawn mower
- Textile machine, Electronic equipment
- Factory automation, Industry control
- Industry automation, Motion control
Our Packages
Welcome to contact us to get more detailed products specs.
