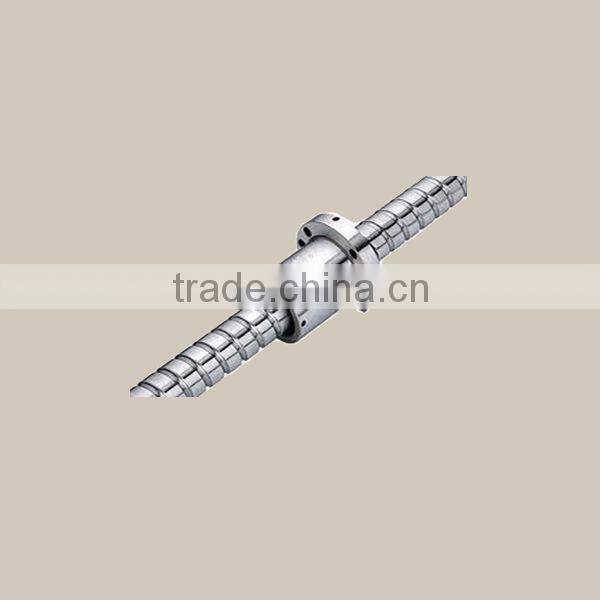

Print Machine Precise Ball Screw

Name: Print Machine Precise Ball Screw
Brand: LUNYEE
Availability: InStock

FOB Price

US$ 1 - 1,000 / Set

1 Set(Min. Order)

Port Shanghai Shenzhen Ningbo Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Manufacturing Process	Milled Thread	Material	GCr15
Length	Customized	Model Number	SCI01605
Place of Origin	Sichuan, China	Brand Name	LUNYEE

Product Description

Specifications

CNC machine high precision ball screw
1. ISO9001
2. Precision: C7
3. Shaft diameter: 16mm, leads:5
4. Length customized

LUNYEE-Ensure linear motion more smoothly!

print machine precise ball screw

Features

• High precision, high durability, high rigidity

• No back lash, high efficiency

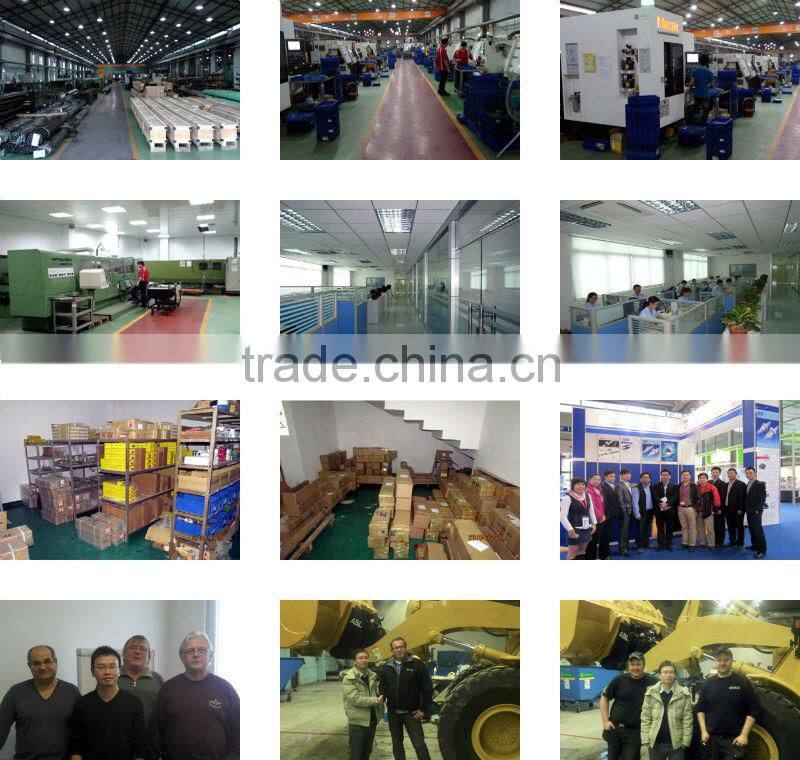

Certificates

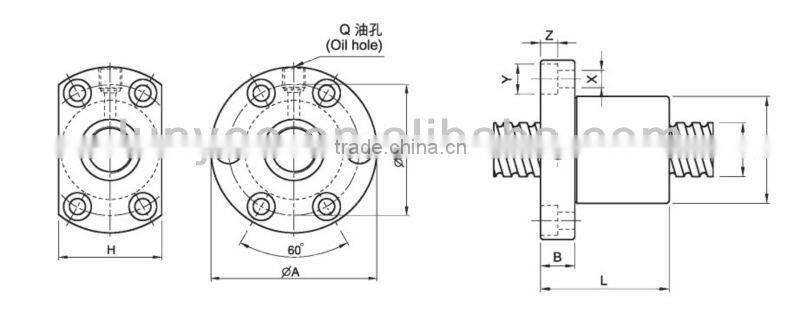

CNC machine high precision ball screw

MODEL NO.	d: DIAMETER l: Lead		MODEL NO.	d: DIAMETER l: Lead n: NUMBER OF CIRCUITS
MODEL NO.	d	l	MODEL NO.	d	l	n
SCI01604-4	16	4	SFI01604-4	16	4	1×4
♦SCI01605-4	16	5	SFI01605-4		5	1×4
SCI02004-4	20	4	SFI01610-3		10	1×4
♦SCI02005-4	20	5	SFI02004-4	20	4	1×4
SCI02504-4	25	4	SFI02005-4		5	1×4
♦SCI02505-4		5	SFI0205T-4		5.08	1×4
SCI02510-4		10	SFI02504-4	25	4	1×4
SCI03204-4	32	4	SFI02505-4		5	1×4
♦SCI03205-4		5	SFI02510-4		10	1×4
♦SCI03210-4		10	SFI03204-4	32	4	1×4
♦SCI04005-4	40	5	SFI03225-4		5	1×4
♦SCI04010-4	40	10	SFI03210-4		10	1×4
SCI05010-4	50	10	SFI04005-4	40	5	1×4
♦SCI06310-4	63	10	SFI04010-4	40	10	1×4
♦SCI08010-4	80	10	SFI05010-4	50	10	1×4
			SFI06310-4	63	10	1×4
			SFI08010-4	80	10	1×4
Note: With sign ♦ can be produced in left helix.

CNC machine high precision ball screw

SCI01604~SCI08010, SFS01205~SFS10020
DFS01605~DFS10020, SFV01205~SFV08020
DFV01510~DFV08020, SFI01604~SFI08010
DFI01604~DFI08010, SFU01204~SFU10020
DFU01604~DFU10020, SFT02005~SFT08020
DFT02005~DFT08020, SFE01616~SFE05050
SFK00401~SFK01602

Applications

Our Packages

Welcome to contact us to get more detailed products specs.

Please feel free to inform us your reqeust POWER,VOLTAGE,OUTPUT SPEED,TORQUE and QTY to get our information about sample, price, packing, leading time and any other related informations!
