Frequency power media video ups inverter dc ac converter 5kw
- 1000 Set / Sets per Month
- shanghai guangzhou qingdao
- T/T Credit Card PayPal
-
electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
-
45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
-
EM15-G3 General used Vector control Frequency inverter(3 phase )
-
EMHEATER soft starter
-
EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
-
Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | MOCHUAN | Model Number: | MH10G4T5.5G |
| Output Power: | Other, 5.5KW 7.5HP | Output Type: | Other, 3/triple / three phase | Size: | 260*140*165*260 mm |
| Weight: | 3.5KG N.W | Input Voltage: | AC380V±15% | Output Voltage: | AC380V±15% |
| Type: | Other, AC-DC-AC / DC-AC | Output Frequency: | 50hz 60hz, 0~400HZ | Output Current: | 14 A rated current |
Product Description
Frequency power media video ups inverter dc ac converter 5kw
MH10 series general vector frequency converter , simple operation ,have excellent vector control performance ,high-cost performance and easy to maintain .In printing ,textile ,machine tools and packagiing machinery ,water supply ,fan and many other fileds have outstanding performance .
| Multi-function and Easily Use of dc to ac converter | ||
| Name | Function | Inllustration |
| PID | Carry out ID operation on feedback signals control inverter's output power and improve tragert accuracy and stability , applied to pressure ,flow and temperature process control | Support PID output polarity switching |
| 485 Communication Interface | Connect with uper computer ,read and modify inverter's parameters ,and control inverter's running stats | Standard build-in RS485 interface |
| Motor Autotuning | Carry on rotation or stativ autotuning , improve control accuracy and response speed | Include ratation autotuning and static autotuning |
| Mulit-step Speed Control | Can meet the requirements of speed control in different time period via multi-speed control | Max available 16-step speed control |
| Simple PLC | Change automatically the running frequency and direction per the running time set by simple PLC to meet process need | Support mulitple running modes |
| Multiple V/F curve settings | Meet demand of fans and water pumps in energy-saving operation and variable frequency power suppliers ,adapt to various load applications | Linear ,multi-power and V/F sepeartion settings ,realize flexiable seting of V/F curves |
| Delay Switching on&off | Provide more programming and control modes | Enable the corresponding virtual terminal function in communication mode |
| Instant running in instantaneous power off | Specially apply to the situations with high requirement of instant operation ,ensure the device does not stop in instantaneous power off | At tansient voltage drop ,the inverter can keep running by feedback energy without stop in valid time |
| Various Protection Modes | Provide overall fault protection functions | Protection functions such as overcurrent ,overheating ,overload ,can save fault information |
| Optional Braking Modes | Provide mulitple braking modes ,satisfy accurate and quick stop under different loads | DC braking ,flux brakiing ,short-circuit braking |
| Battery Capacity Display | Can disply the auumulative power consumption on the inverter in no need of watt-hour meter | Can check inverter's power consumption |
| MH10/20/30 series of dc to ac converter | ||

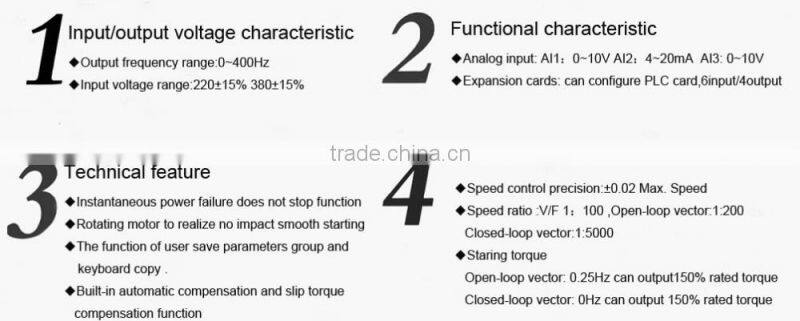

| Technical Data | ||
| Project | Description | |
| Mainly control features | Modulation mode | Magnetic flux vector PWM modulation |
| Motor type | Normal motor | |
| Converter motor | ||
| Synchronous motor | ||
| Freq accuracy | Setting number: max freq X±.02% | |
| Analog freq: max freq X±1% | ||
| Torque compensation | Automatic torque promote | |
| Manual torque promote 0.1%~30.3% | ||
| V/F Curve | A user setting V/F curve way , | |
| A variety of torque characteristics way and voltage separation control | ||
| Acceleration and deceleration curves | 2 Way: linear acceleration /deceleration | |
| S curves acceleration/ deceleration | ||
| 4 Way of aceleration / deceleration time :0.1~3600 secs | ||
| DC brake | DC brake starting freq 0.00~60.00Hz | |
| Braking time 0.1~30.0 secs | ||
| Jog | Jog freq range 0.10Hz~60.00Hz | |
| Jog acceleration / deceleration time: 0.1~60.0 secs | ||
| Jog time interval can be set | ||
| Automatic energy saving running | According to the load automatic optimization control to implement energy saving running | |
| Automatic voltage regulation (AVR) | Whem grid voltage changes can automatically to keep the pressure constant power transmission | |
| Auto-current -limit | No impact on the implementatikon of rotation of motor smooth start | |
| Textile pendulum freq | Automatic operation during the current limit to prevent frequent onver-current fault truipping | |
| Fixed length control | Textile pendulum freq control to achieve the function of center freq adjustable swing fre | |
| Busbar voltage over-voltage suppression | Travel on bus over-voltage real-time dynamic control to prevent frequent overvoltage of fault tripping | |
| Running control | Bind function | Running the command channel and frequency of a given channel to bind synchronous switch |
| Running the command channel | Operating panel to control command channel | |
| Terminal to control command channel | ||
| Modbus communication command channel | ||
| It can through a variety of ways to switch | ||
| Peripheral interface | Analog input | 3 road analog signal input : 2 road0V~10V/0~20mA ; 1 road differential input -10V~+10V |
| Anlog output | 2 road analog signal output :0~10V/0~20mA , to set the freqyuenct ,output frequyency analog output can be realized etc | |

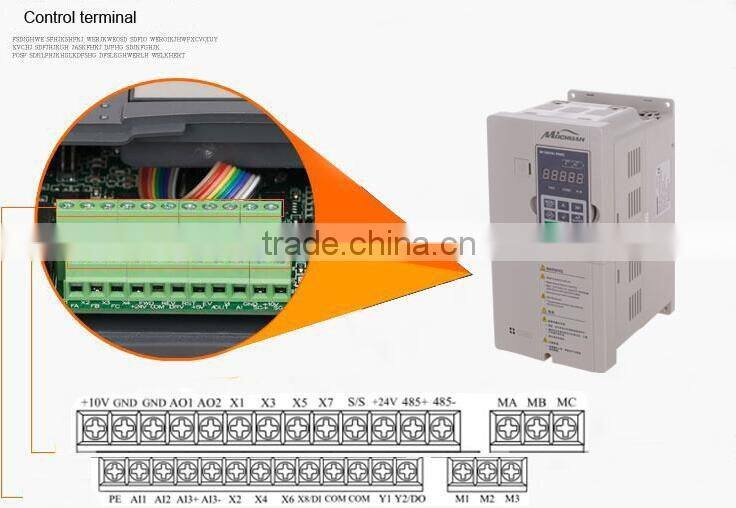

| Digital input | 8 way multi-function input terminals : X8/DO high-speed pulse input terminals ,max support (50KHz) | |
| Digital output | 2 way mulit-function output terminals :Y2/DO high-speed pulse output terminals ,max support (50KHz) | |
| Relay output | 2-way relay output : MA normally closed MB normally open MC common terminal ; M1 normally closed M2 normally open M3 common terminal | |
| Communication | 485 communication | Standard 485 differential signal , support Modubs ,To support the communication address of external and internal mapping |
| Panel | Key lock to choose | By setting can achieve some or all keys to lock to prevent the error running |

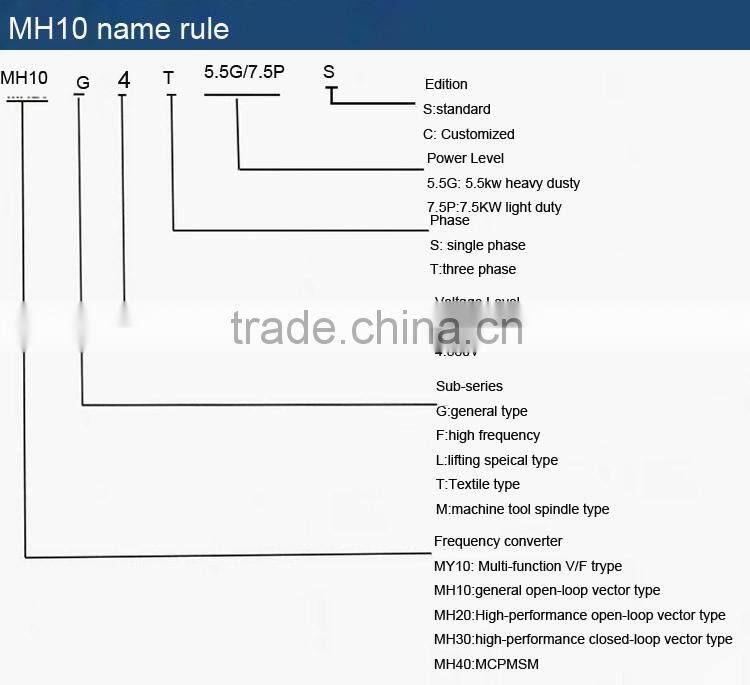

| Modles and Adaption Motor of dc to ac converter | ||||
| Model | Rated Capacity /KWA | Rated Output Current /A | Rated Ouput Current /A | Motor |
| MH10/MH20/MH30-2S0.4GS | 1.0 | 4.5 | 3.1 | 0.4 |
| MH10/MH20/MH30-2S0.75GS | 1.5 | 9.3 | 4.7 | 0.75 |
| MH10/MH20/MH30-2S1.5GS | 3 | 16.5 | 7.8 | 1.5 |
| MH10/MH20/MH30-2S2.2GS | 4 | 23 | 10 | 2.2 |
| MH10/MH20/MH30-4T0.75GS | 1.5 | 3.4 | 2.5 | 0.75 |
| MH10/MH20/MH30-4T1.5GS | 2.5 | 5 | 3.7 | 1.5 |
| MH10/MH20/MH30-4T2.2GS | 3 | 5.8 | 5 | 2.2 |
| MH10/MH20/MH30-4T4GS | 5.9 | 10.5 | 93 | 3.7 |
| MH10/MH20/MH30-4T5.5GS | 8.6 | 16.5 | 14 | 5.5 |
| MH10/MH20/MH30-4T7.5GS | 11.2 | 20.5 | 17 | 7.5 |
| MH10/MH20/MH30-4T11GS | 17 | 26 | 25 | 11 |
| MH10/MH20/MH30-4T15GS | 21 | 35 | 32 | 15 |
| MH10/MH20/MH30-4T18.5GS | 24 | 47 | 38 | 18.5 |
| MH10/MH20/MH30-4T22GS | 25 | 56 | 45 | 22 |
| MH10/MH20/MH30-4T30GS | 35 | 70 | 60 | 30 |
| MH10/MH20/MH30-4T37GS | 40 | 80 | 75 | 37 |
| MH10/MH20/MH30-4T45GS | 50 | 94 | 92 | 45 |
| MH10/MH20/MH30-4T55GS | 60 | 128 | 115 | 55 |
| MH10/MH20/MH30-4T75GS | 80 | 160 | 150 | 75 |
| MH10/MH20/MH30-4T90GS | 95 | 190 | 180 | 90 |
| MH10/MH20/MH30-4T110GS | 120 | 225 | 215 | 132 |
| MH10/MH20/MH30-4T132GS | 140 | 265 | 260 | 132 |
| MH10/MH20/MH30-4T160GS | 178 | 310 | 305 | 160 |
| MH10/MH20/MH30-4T185GS | 198 | 345 | 340 | 185 |
| MH10/MH20/MH30-4T200GS | 210 | 385 | 380 | 200 |
| MH10/MH20/MH30-4T220GS | 230 | 430 | 425 | 220 |
| MH10/MH20/MH30-4T250GS | 265 | 485 | 480 | 250 |
| MH10/MH20/MH30-4T280GS | 290 | 540 | 530 | 280 |
| MH10/MH20/MH30-4T315GS | 330 | 610 | 600 | 315 |
| MH10/MH20/MH30-4T350GS | 360 | 630 | 650 | 350 |
| MH10/MH20/MH30-4T400GS | 450 | 715 | 720 | 400 |
| System Configuration Scheme | ||||
| Model | Brake Unit | Braking Resistor Unit | Braking Torque | |
| Brake Resistor | Number | |||
| MH10/MH20/MH30-2S0.4GS | Standard build-in | 200Ω/70W | 1 | 220 |
| MH10/MH20/MH30-2S0.75GS | 200Ω/70W | 1 | 125 | |
| MH10/MH20/MH30-2S1.5GS | 100Ω/260W | 1 | 125 | |
| MH10/MH20/MH30-2S2.2GS | 70Ω/260W | 1 | 120 | |
| MH10/MH20/MH30-4T0.75GS | 75 Ω /70W | 1 | 130 | |
| MH10/MH20/MH30-4T1.5GS | 400Ω/260W | 1 | 125 | |
| MH10/MH20/MH30-4T2.2GS | 250Ω/260W | 1 | 135 | |
| MH10/MH20/MH30-4T4GS | 150Ω/390W | 1 | 135 | |
| MH10/MH20/MH30-4T5.5GS | 100Ω/520W | 1 | 135 | |
| MH10/MH20/MH30-4T7.5GS | 75Ω/780W | 1 | 130 | |
| MH10/MH20/MH30-4T11GS | 50Ω/1040W | 1 | 135 | |
| MH10/MH20/MH30-4T15GS | 40Ω/1560W | 1 | 125 | |
| MH10/MH20/MH30-5T18.5GS | 32Ω/4800W | 1 | 125 | |
| MH10/MH20/MH30-4T22GS | Optional /built-in | 27.2Ω/4800W | 1 | 125 |
| MH10/MH20/MH30-4T30GS | 20Ω/6000W | 1 | 125 | |
| MH10/MH20/MH30-4T37GS | Optional the outer | 16Ω/9600 | 1 | 125 |
| MH10/MH20/MH30-4T45GS | 13.6Ω/9600 | 1 | 125 | |
| MH10/MH20/MH30-4T55GS | 6.8Ω/1200W | 1 | 125 | |
| MH10/MH20/MH30-4T90GS | 6.8Ω/12000W | 1 | 125 | |
| MH10/MH20/MH30-4T110GS | 6.8Ω/1200 | 1 | 125 | |

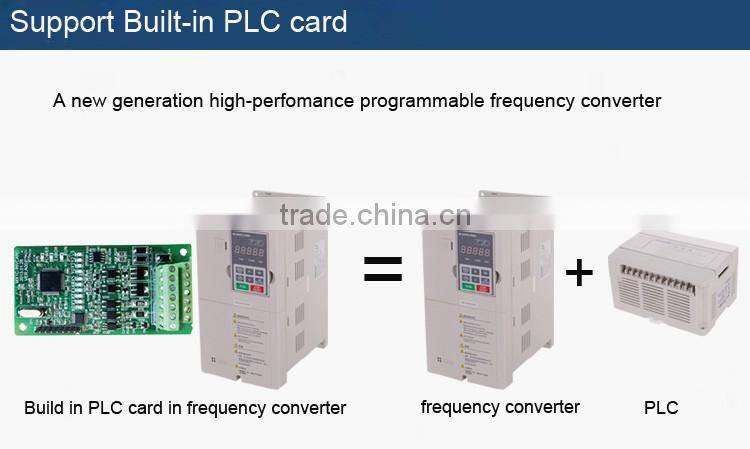

| Description |
| 1. Traditional frequency converter need to change the bottom plane to realize special function ,but PLC card just need to write a differnet ladder diagram program ,can directly read/write calls and control of each parameter , not need to change the underlying . |
| Resource |
| 1. 6in/4out ,to share converter I/O(8in/4out) and 2AI/2AO |
| 2. With PID instruction ,consititue a closed-loop system frequency converter is more reliable and acurate control equipment |
| Communication |
| 1. 1 road RS485 port, Modubs programming |
| 2. Modbus / free port/ MuLink networking |
| Programming environment |
| 1. Support the ladder diagram , the statement list , smooth function diagram(SFC) |
| 2.English editor environment , user program software encryption |
Shipping
1. Fedex/DHL/UPS/TNT for samples, door to door;
2. By air or by sea for batch goods for FCL, airport/port receving;
3. Customers specifying freight forwarders for negotiable shipping nethods.
4. Delivery time: 3~7 days for samples, 5~25days for batch goods.
Payment Terms
1. Payment : T/T, Western Uion, MoneygRAM, Paypal( 30% deposits, 70% balance before delivery); Trade assurance from Alibaba with 10000 dollars
2. MOQ: 1 set;
3. Warranty: 18 months
Why Choose Us ?
1. More than 15 Years' Experiece in Drivers Manufacturing: the complete industry chain: the strong R&D team, the powerful supply capacity, the prefect system of freight of forwarding, and the frst-class pre-sale service in any problem in operating PLC and converter.
2. Customization Production: size, model, package can be per customers' request.
3. Realizablw Quality: professional design team, strict QC system and strong transportation cooperation.
4. First-class Pre and After Service: we ensure the well processing of the practice of our products for customers.
Our warranty
3months free replacement,
18 months free maintenance
Life-time technical support and maintenance service
Due to the quality problem, free replacement part will be offered.
Due to incorrect use, unauthorized repaire, fall etc, the maintenance cost will be charged.
Q1. How to install dc to ac converter?
11KW or less ,horizontal distance should be 4cm ; Vertical distance should be 10cm .
15KW and more ,horizontal distance should be 15cm ; Vertical distance should be 35cm .

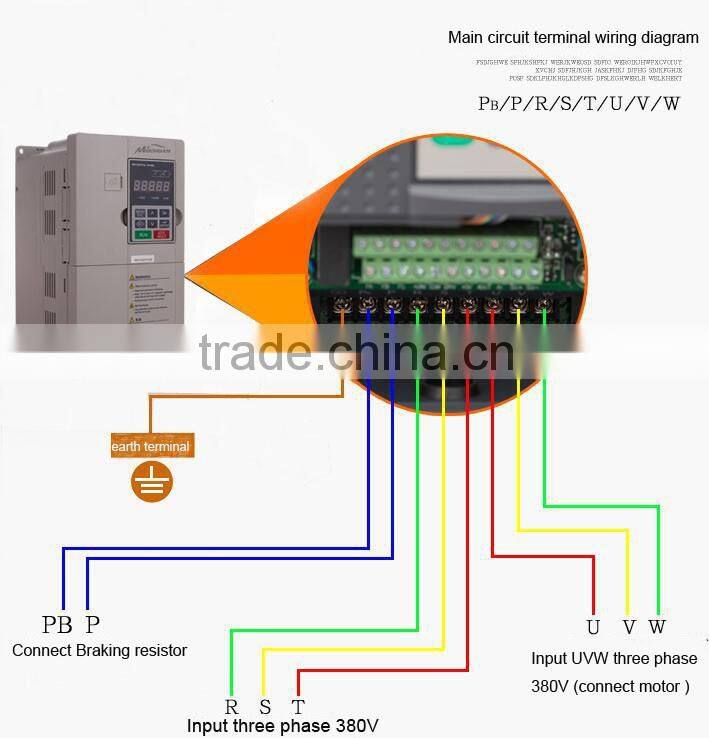

Q2. How to correct connection of dc to ac converter?
There are Single phase and 3phase ,inculding power and motor terminal . More information please click below link to know more ,thank you !
Q3. Under wrong parameter settings or after finish to setting parameter but can not running ?
Under standby condition ,Please restore the factory values . Parameters P50.20 change to be 22 then press confirm .
Q4. What information should provide ,if want to get a quotation?
You could tell us your requirements and usage or our models
Q5. Can be applied in the heavy load and high precision equipment of your dc to ac converter ?
Our MH20 vector frequency converter series ,mature application in the metal wirte drawing and plastic extrusion machine ,Widely used in high precision machining center motorized spindle and printing equipment
More suprise waiting for you to click "send " now to get it !!!
Contact Us
- Wuxi Mochuan Drives Technology Co., Ltd.
- Contact nameAnn Pan
- Phone86-0510-82718201
- AddressHuaqing Building No.18 Wuai Rd Nanchang Zone Wuxi,Jiangsu
| Frequency converter | HMI | Motor | New Products |
| PLC |
-
EMHEATER 250kw Three 3 phase 380V 400v 440V Input Motor Soft Starter for Submersible Pump Compressor
-
45kw 440v three phase star delta motor on line starter with bypass built in
-
Economical Soft Starter 90kw Electric Motor Controller 3 Phase 400v 380v Motor Soft Starter 50Hz to 60Hz for motor protection
-
Low Price 380V/480V 30KW Solid State Motor Starters Low Voltage Soft Starters with 60A Triple Output for Motor Protection
-
MITSUBISHI HC-SF102BK (AS PICTURED) NSNP
-
MITSUBISHI HC-SFS152 SERVO MOTOR
-
original Mitsubishi MITSUBISHI HC202S NSNP
-
AB 2711R-T7T
-
AB 1492 1494 1497
-
AB soft starter 150 153 156
-
480V 600KW 1200A 3 phase online working soft starter for AC motor pump mill motor air compressor no need bypass contactor
-
460V 480V 600KW 3 phase output power motor soft starter for Zimbabwe market AC motors
-
380V 500KW 1000A 3 phase input &output Soft starter for industrial pump acmotor air gas compressor fan crusher drawing machine
-
380V 500KW 1000A 3phase online working soft starter for AC motor pump mill motor air compressor no need bypass contactor
-
380v 500kw 3Phase input and output Frequency Converter Inverter speed drive Industrial ControL
-
480V 500KW 440V 3 phase Online Working Soft Starter VSD for AC motor pump mill motor air compressor no need bypass contactor
-
380V 500KW 1000A 3 phase input&output sine wave filter for variable frequency drive soft starters AC electric motor
-
380V 500KW Motor Controller Soft Starters for 3-phase Induction Motors Protection Relay
-
TOP1 Hot Sales MPPT Solar Water Pump Inverter 3 Phase Triple Output DC/AC Inverter
-
DC to AC 3-Phase 380V/220V MPPT Solar Water Pump Inverter/VFD with Variable Frequency and Triple Output Type
-
380V 450KW 900A 3 phase online working soft starter for AC motor pump fan mill motor air compressor no need bypass contactor
-
380V 600KW 800HP 3phase online working soft starter for AC motor pump motor compressor fan colloid mill built-in bypass
-
China made Inverter AAD03020DKT01 for power plant
-
Allen Bradley Soft Starter AB 150-F480NZD
Popular Searches
Recommended Products
- ABB 5SHY3545L0014 Six axis sensor
- GE VMIC VMIVME-7740-850 350-007740-850 L Microcontroller module
- ABB 5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 GVC750BE101 thyristor module
- BENTLY 3500/25 125792-01 Digital quantity control board module
- ABB UFC762AE101 3BHE006412R0101 Electrical control module
- NI GPIB-140A Fiber optic GPIB extender
- VIBRO-METER VM600 RPS6U 200-582-200-011 Vibration detection module
- VIBRO-METER 200-570-000-014 200-570-101-013 VM600 output module
- VIBRO-METER 200-560-000-018 200-560-101-015 VM600 IOC4T communication module
- ICS TRIPLEX T8110B Digital input module
- GE 04220FL11232A communication module
- FOXBORO FCP270 P0917YZ Control processor module
Find Similar Products By Category
- Electrical Equipment & Supplies > Power Supplies > Inverters & Converters
- Buy on GoldSupplier.com
- How to Buy
- Browse by Catagories
- Browse by Hot Regoins
- Private Sourcing Events
- Sell on GoldSupplier.com
- How to Sell
- Post Products
- Manage Products
- Manage Groups
- About
- About Us
- Link to Us
- Contact Us
- Sitemap
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now-
Ann Pan
Welcome to my shop! Glad to serve you!Please send your question!
Your message has exceeded the limit.
Your message has exceeded the limit.
-
-
Your inquiry content must be between 20 to 5000 characters.Send Now.
-
Please input the mailbox.
-
