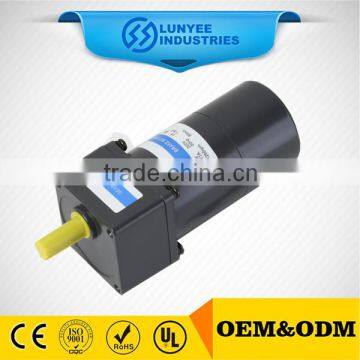

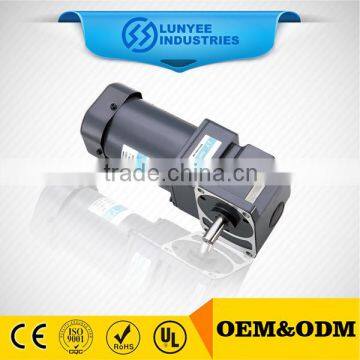

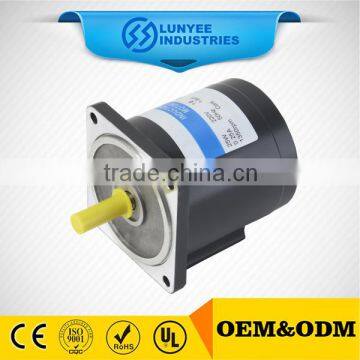

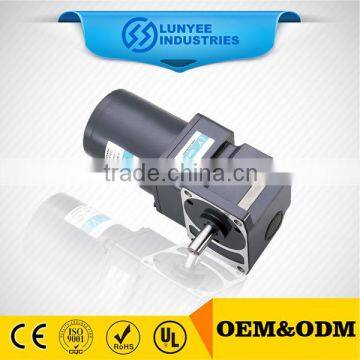

25W Reliable and Safe ac Electric Motors
reliable and safe ac electric motors
reliable and safe ac electric motors
Specification
| Model Type Lead Wire Type |
Output power W |
Voltage V |
Frequency Hz |
Current A |
Starting Torque mN.m |
Rated Torque mN.m |
Rated Speed r/min |
|
| Lead Wire Type | Terminal Box Type | |||||||
| 4IK25GN-A | 4IK25GN-AT | 25 | 1ph100 | 50 | 0.45 | 120 | 200 | 1250 |
| 60 | 0.5 | 165 | 1550 | |||||
| 4IK25GN--E | 4IK25GN--ET | 25 | 1ph110 | 60 | 0.45 | 120 | 165 | 1550 |
| 1ph120 | 0.5 | |||||||
| 4IK25GN-C | 4IK25GN-CT | 25 | 1ph220 | 50 | 0.25 | 120 | 200 | 1250 |
| 1ph230 | 0.23 | |||||||
| 4IK25GN-H | 4IK25GN-HT | 25 | 1ph220 | 60 | 0.23 | 120 | 165 | 1550 |
| 1ph230 | ||||||||
| 4IK25GN-S | 4IK25GN-ST | 25 | 3ph220 | 50 | 0.185 | 350 | 200 | 1250 |
| 60 | 0.17 | 250 | 165 | 1550 | ||||
Allowance torque unit :upside (N.m) /Belowside (kgf.cm)
Widely applied in packing machine, carton sealed machine, conveyor, food process machine, textile machine...
Please feel free to inform us your reqeust POWER,VOLTAGE,RATIO,OUTPUT SPEED,TORQUE and QTY to get our information about sample, price, packing, leading time and any other related informations!
http://lunyee.en.china.cn
