Fiber Optic Distribution Box---FTTB

Fiber Optic Distribution Box---FTTB photo-1
US$ 30.00 - 30.00 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
TDTX
Model Number:
SMC-IN-PLC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name TDTX
Model Number SMC-IN-PLC

SPECIFICATION OF SMC Material Fiber Optic Distribution Box

                                  (Insertion Type PLC Splitter)



Introduction

fiber optics distribution cabinet is currently being widely used for distributing outdoor optical cable in indoor conditions.

It is very suitable for FTTx uses. This cabinet offers ideal environment for fibers to be spliced and well organized under

outdoor environment.



Features

♦ The cabinet has functions of cable splicing, distribution and cross-connection.
♦ Solid and fully-closed structure with the advantages of good performance of dust-proof, pleasing and neat appearance.
♦ Easy installations: Wall mounted and pole mounted.
♦ Ideal for indoor uses – cable entrances & exits located on both top and bottom.
♦ Lock provided on every cabinet ensures the safety of the fibers.
♦ The central adapter board separates the incoming cables and the exiting fibers.
♦ Central adapter board is movable for easier installation (for maxmum capacity 48 cores.)
♦ Adapters are installed on our 6-position adapter holders, no screws need for installing any type adapters, which is very

   easy for future maintenance and keeps the transmission loss at low level.
♦ Adoptable adapter types: FC, SC, LC



Environment Conditions



♦ Temperature: -40℃ ~+ 60℃
♦ Relative Humidity: ≤95% (at 40℃)
♦ Atmospheric pressure : 70kPa ~ 106kPa



Techinical Specification

♦ The protection grade reaches IP65.

♦ Cable fixing units provided  for fixing  the optical cable

♦ With 1/4,1/8,1/16 PLC splitters

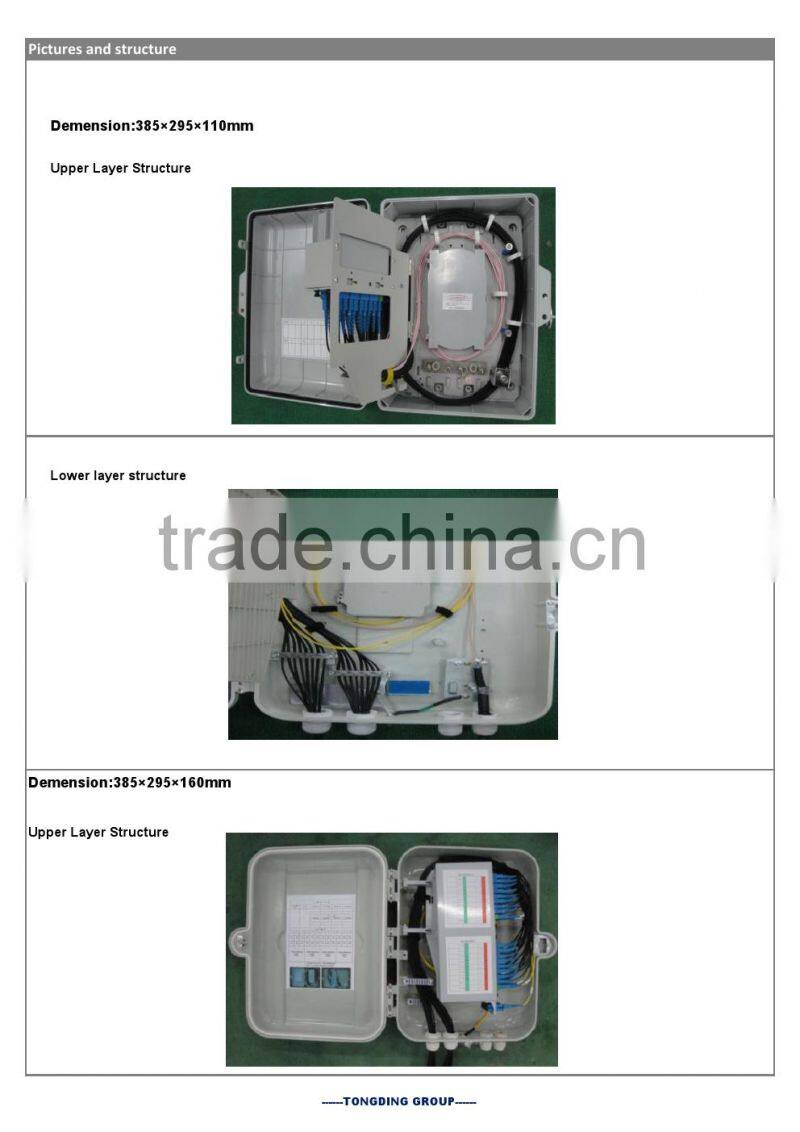

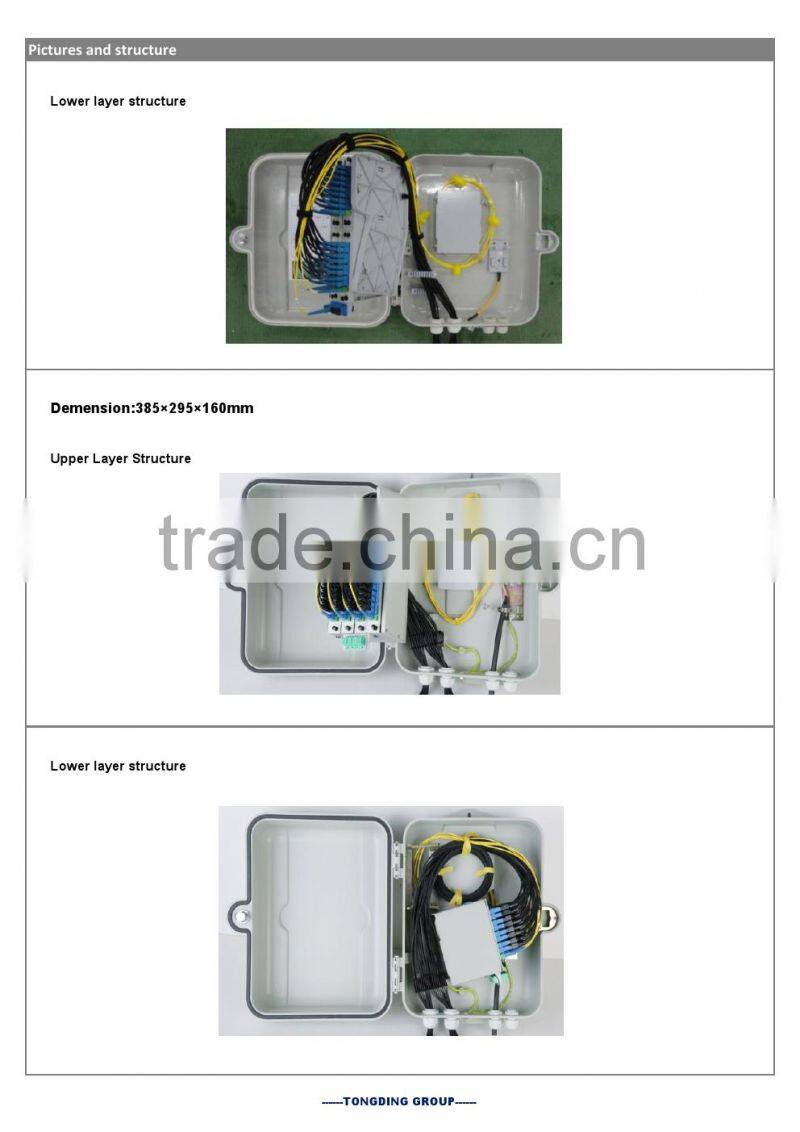

♦ Double-layer design for easier installation

♦ Upper layer for splitters and distribution

♦ Lower layer for splicing



Material

SMC / SPCC(Cold rolled steel with static spray treatment)



Installation

Pole mounted or wall mounted.



Fiber optic distribution box---FTTBFiber optic distribution box---FTTBFiber optic distribution box---FTTBFiber optic distribution box---FTTBFiber optic distribution box---FTTB
