1,Large working space
2,Light weight and easy to operate
3,Splice tray chageable
4,Waterproof

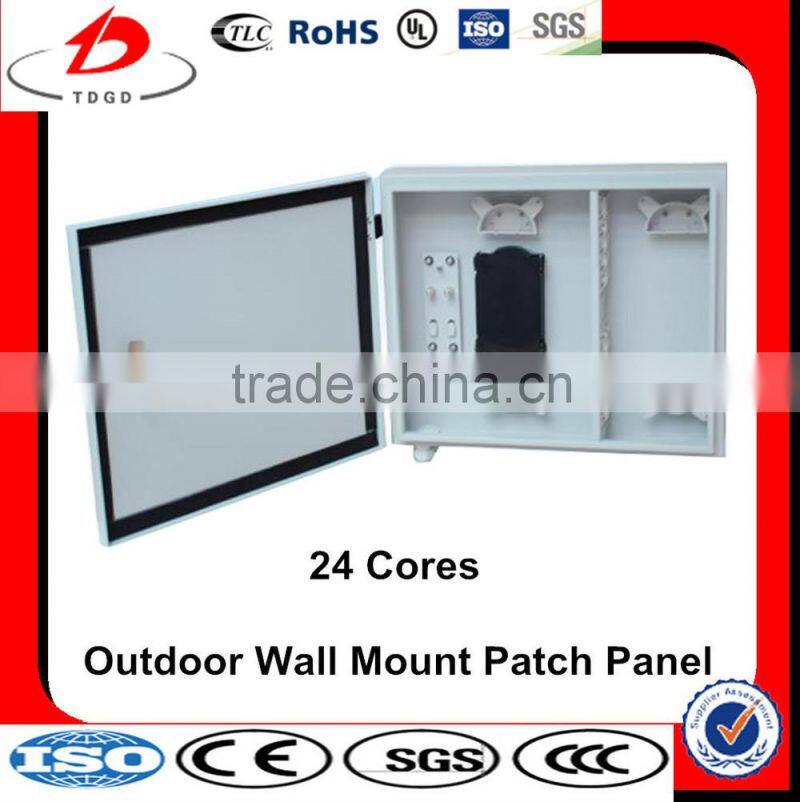

Outdoor Wall Mount 24 Core Fiber Optic Patch Panel
Outdoor Wall-mount Fiber Optic Patch Panel is mainly used for connecting the outdoor optical cables, optical patch cords and optical pigtails. It can be wall mounted or pole mounted, and facilitates the test and refit of the lines.
Outdoor Wall Mount 24 Core Fiber Optic Patch Panel Application
- Telecommunications subscriber loop
- Fiber to the home (FTTH)
- LAN/ WAN
- CATV
Outdoor Wall Mount 24 Core Fiber Optic Patch Panel Feature
- With plastic plates can manage both single, bundle and ribbon fiber cables.
- Various panel plate to fit different adapter interface
- Large working space to integrate the pigtail, cables and adapters
- Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite, easy for operation
- Special design ensures the excess fiber cords and pigtails in good order
- Standard size, light weight and reasonable structure
- Fiber splice trays can be installed in two sides of adapter panel
- Splice tray inside changeable
Outdoor Wall Mount 24 Core Fiber Optic Patch Panel Performance Index:
- Available adapter port:ST,FC,SC,LC
- Fiber capacity : Upto 24 cores
- Product size ( Length x Depth x Hight) : 465mm x 383mm x110mm
- Weight: 6.3Kg
- Pigtail typical Insertion Loss : ≤0.3dB
- ROC: ≥40mm
- Operation Temperature : -20°c~+60°c
Outdoor Wall Mount 24 Core Fiber Optic Patch Panel Component List
| Item No | Optical components | Unit | Quantity |
| 1 | ODF-72 core | pc | 1 |
| 2 | Pigtails | pc | 72-144 (Customized) |
| 3 | Adapters with dust cap | pc | 72 ( Customized) |
| 4 | Splice tray | pc | 2 |
| 5 | Splicing Protection sleeves | pc | 72-144 |
| 6 | Suporting braket | pc | 2 |
| 7 | Cable fixing ring | pc | 4 |
Package Notice:
There are different packages for different fiber optic components or devices.
The usual package is Carton. For Fiber Optic Adapter,Fiber Optic Pigtail, Fiber Optic Patch Cord,Fiber Optic Attenuator,Fiber Optic Terminal Box, Fiber Optic Splice Closure.They have an inner package individually and then will be packed into an outer carton.For Fiber Optic Cable, It is Wooden Drum.
Lead Time & Shipment Practice:
We usually send goods via DHL / UPS / Fedex / EMS / ARAMEX and airway for small order.We would arrange it for you if you have special requirements on it. Generally speaking, goods can be sent in 3-8 working days (depends on your order) after received payment.
For bulk order,We will arrange shipment by Air or by Sea after agreement with our customers.
Terms of Payment?
Usually, we accept payment by 100% T/T in advance (Telegraphic Transfer), West Union, PayPal and International Credit Card (small amount of money).
After Services:
We concentrate on our customers’ satisfaction, we have the professional after-service department, to solve the problems our customers meet in using, to enhance your benefits.We concentrate on our customers’ satisfaction, we have the professional after-service department, to solve the problems our customers meet in using, to enhance your benefits.
Q: Can you supply OEM or Odm Service?
A: We can supply OEM/ODM service absolutely!
Q: May I get free sample?
A: Normally, our product need sample fee, But we will charge your sample fee as less as we can, even sometimes free sample available. However, you have to pay us the courier cost like: DHL.FEDEX.UPS.TNT...
Q: What kind of payment methods and price term?
A: EXW, CIF, CFR, FOB ..etc. We accept Paypal, West Union, T/T usually. But we also accept L/C or OA under special situation.
Q: Warranty?
A: Products against defects are found to be defective under normal use within 1 year will be repaired without charge. If assume defects can’t be repaired will be replaced without charge within 1 year.
