Specifications
LA115 mushroom push button switchIP40 and IP65 for choices
install hole: 22/25mm
Professional manufacturer

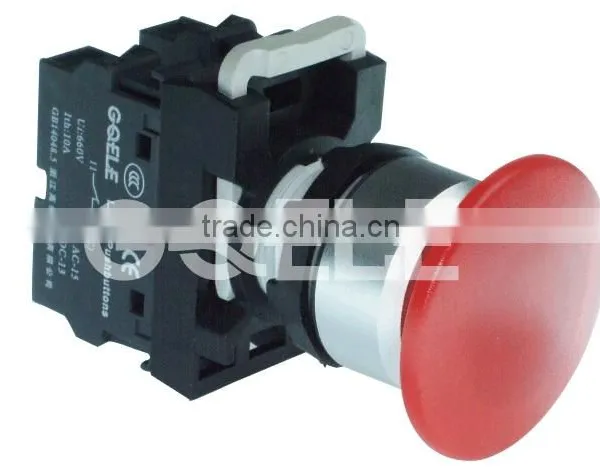

LA115 mushroom push button switch
Model
- LA115-A1-11M Mushroom push button switch
- LA115-A1-11MT maintained mushroom push button switch
Feature
- Easy to Assemble
- Φ22mm, Φ25mm mounting diameter
- Choice of Plastic or Metallic Bezels
- Colour: R G Y B W BL
- Please indicate contact request. (Default contact is 1NO+1NC)

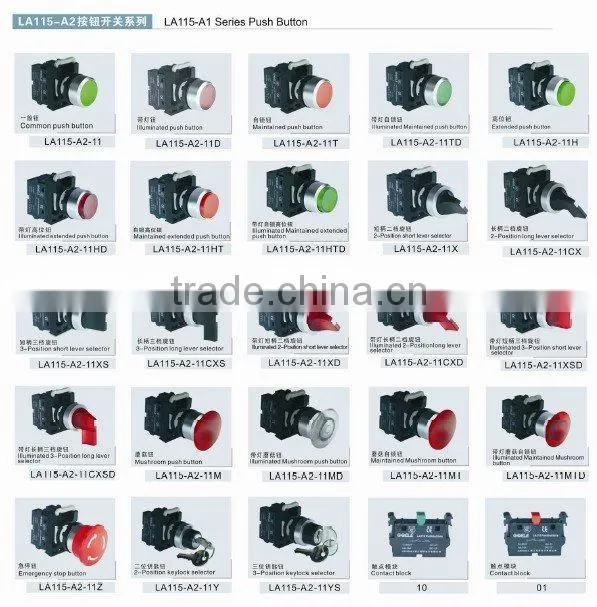

This series includes a complete range of push button switch, extended push button, illuminated push button, maintained push button, Mushroom push button, emergency stop button, selector switch, key switch, dual push button, and etc. For more information, please kindly check the other type of LA115 series push button switches
Application
Used to either close or open an electrical circuit. Used in various applications such as electric power, telecommunication, machinery, marine, textile, printing, miningindustrial equipment , and etc
Working Environment
Ambient air temperature -25°C~ +40°C
Altitude: ≤2000m
Relative air humidity: ≤90%
Pollution degree: class 3
Protection degree: IP40/IP65
Main Technical Parameter
Rated value of switch: AC-15 36V/10A 110V/10A 220V/5A 380V/2.7A 660V/1.8A
DC-13 24V/4A 48V/4A 110V/2A 220V/1A 440V/0.6A
Conventional thermal current: 1th 10A
Contact resistance: ≤50mΩ
Insulation resistance: ≥10mΩ
Mechanical durability:
common push-button≥100×104 times; selector button ≥30×104 times.
Key push-button≥5×104 times; Emergency push-button≥5×104 times

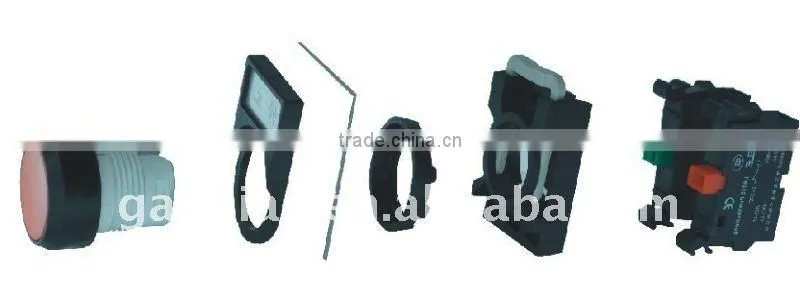

Assemble Schematic Diagram
Model and Meaning
