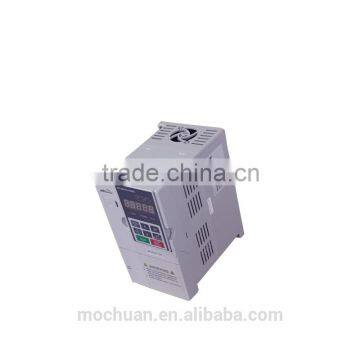

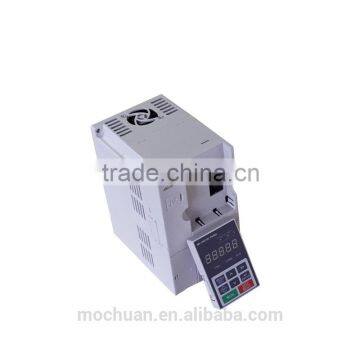

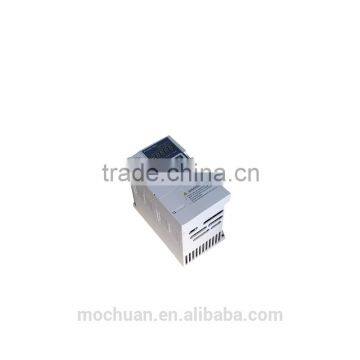

0.75kw single phase 0-400hz heavy duty vfd frequency inverter for ac motor
MH20 series is a high-performance open-loop heavy duty vfd frequency inverter, excellent performance ,strong powerful ,stable quality ,sophisticated technology ,The design fully consider the user demand , wide application scope .
MH40 series professional support permanent magnet synchronous motor .
Product Top Features
Input/Output voltage characteristic
Output frequency range: 0~400Hz
Input voltage range:AC220V±15% ,AC380V±15%
Functional Characteristic
Analog input AI1:0~10V , AI2:4~20mA AI3:0~10V
Expansion cards: Can configure PLC card , 6input and output
General Control
Speed control precision: ±002 Max speed
Closed-loop vector:0Hz can output 150% rated torque
Open-loop vector: 0.25Hz can output 150% rated torque
V/F 1:100 , Open-loop vector1:200 , Closed-loop vector1:5000
Technical Feature
Instantaneous power failure does not stop function
Rotating motor to realize no impact smooth starting
The function of user save parameters group and keyboard copy
Build-in automatic compensation and slip toreque compensation function
| Multi-function and Easily Use of 0.75kw single phase 0-400hz heavy duty vfd frequency inverter for ac motor | ||
| Name | Function | Inllustration |
| PID | Carry out ID operation on feedback signals control inverter's output power and improve tragert accuracy and stability , applied to pressure ,flow and temperature process control | Support PID output polarity switching |
| 485 Communication Interface | Connect with uper computer ,read and modify inverter's parameters ,and control inverter's running stats | Standard build-in RS485 interface |
| Motor Autotuning | Carry on rotation or stativ autotuning , improve control accuracy and response speed | Include ratation autotuning and static autotuning |
| Mulit-step Speed Control | Can meet the requirements of speed control in different time period via multi-speed control | Max available 16-step speed control |
| Simple PLC | Change automatically the running frequency and direction per the running time set by simple PLC to meet process need | Support mulitple running modes |
| Multiple V/F curve settings | Meet demand of fans and water pumps in energy-saving operation and variable frequency power suppliers ,adapt to various load applications | Linear ,multi-power and V/F sepeartion settings ,realize flexiable seting of V/F curves |
| Delay Switching on&off | Provide more programming and control modes | Enable the corresponding virtual terminal function in communication mode |
| Instant running in instantaneous power off | Specially apply to the situations with high requirement of instant operation ,ensure the device does not stop in instantaneous power off | At tansient voltage drop ,the inverter can keep running by feedback energy without stop in valid time |
| Various Protection Modes | Provide overall fault protection functions | Protection functions such as overcurrent ,overheating ,overload ,can save fault information |
| Optional Braking Modes | Provide mulitple braking modes ,satisfy accurate and quick stop under different loads | DC braking ,flux brakiing ,short-circuit braking |
| Battery Capacity Display | Can disply the auumulative power consumption on the inverter in no need of watt-hour meter | Can check inverter's power consumption |
| MH10/20/30 series of 0.75kw single phase 0-400hz heavy duty vfd frequency inverter for ac motor | ||
| Technical Data of heavy duty vfd frequency inverter for ac motor | ||
| Project | Description | |
| Mainly control features | Modulation mode | Magnetic flux vector PWM modulation |
| Motor type | Normal motor | |
| Converter motor | ||
| Synchronous motor | ||
| Freq accuracy | Setting number: max freq X±.02% | |
| Analog freq: max freq X±1% | ||
| Torque compensation | Automatic torque promote | |
| Manual torque promote 0.1%~30.3% | ||
| V/F Curve | A user setting V/F curve way , | |
| A variety of torque characteristics way and voltage separation control | ||
| Acceleration and deceleration curves | 2 Way: linear acceleration /deceleration | |
| S curves acceleration/ deceleration | ||
| 4 Way of aceleration / deceleration time :0.1~3600 secs | ||
| DC brake | DC brake starting freq 0.00~60.00Hz | |
| Braking time 0.1~30.0 secs | ||
| Jog | Jog freq range 0.10Hz~60.00Hz | |
| Jog acceleration / deceleration time: 0.1~60.0 secs | ||
| Jog time interval can be set | ||
| Automatic energy saving running | According to the load automatic optimization control to implement energy saving running | |
| Automatic voltage regulation (AVR) | Whem grid voltage changes can automatically to keep the pressure constant power transmission | |
| Auto-current -limit | No impact on the implementatikon of rotation of motor smooth start | |
| Textile pendulum freq | Automatic operation during the current limit to prevent frequent onver-current fault truipping | |
| Fixed length control | Textile pendulum freq control to achieve the function of center freq adjustable swing fre | |
| Busbar voltage over-voltage suppression | Travel on bus over-voltage real-time dynamic control to prevent frequent overvoltage of fault tripping | |
| Running control | Bind function | Running the command channel and frequency of a given channel to bind synchronous switch |
| Running the command channel | Operating panel to control command channel | |
| Terminal to control command channel | ||
| Modbus communication command channel | ||
| It can through a variety of ways to switch | ||

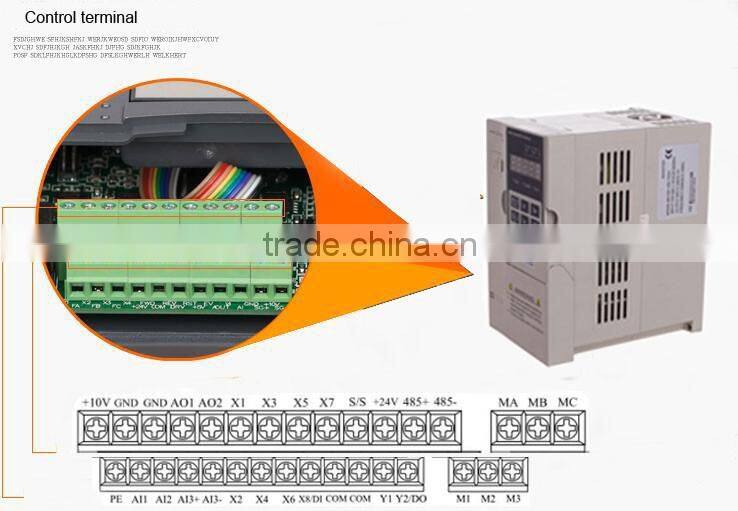

| Peripheral interface | Analog input | 3 road analog signal input : 2 road0V~10V/0~20mA ; 1 road differential input -10V~+10V |
| Anlog output | 2 road analog signal output :0~10V/0~20mA , to set the freqyuenct ,output frequyency analog output can be realized etc | |
| Digital input | 8 way multi-function input terminals : X8/DO high-speed pulse input terminals ,max support (50KHz) | |
| Digital output | 2 way mulit-function output terminals :Y2/DO high-speed pulse output terminals ,max support (50KHz) | |
| Relay output | 2-way relay output : MA normally closed MB normally open MC common terminal ; M1 normally closed M2 normally open M3 common terminal | |
| Communication | 485 communication | Standard 485 differential signal , support Modubs ,To support the communication address of external and internal mapping |
| Panel | Key lock to choose | By setting can achieve some or all keys to lock to prevent the error running |
Shipping
1. Fedex/DHL/UPS/TNT for samples, door to door;
2. By air or by sea for batch goods for FCL, airport/port receving;
3. Customers specifying freight forwarders for negotiable shipping nethods.
4. Delivery time: 3~7 days for samples, 5~25days for batch goods.
Payment Terms
1. Payment : T/T, Western Uion, MoneygRAM, Paypal( 30% deposits, 70% balance before delivery); Trade assurance from Alibaba with 20000 dollars
2. MOQ: 1 set;
3. Warranty: 18 months

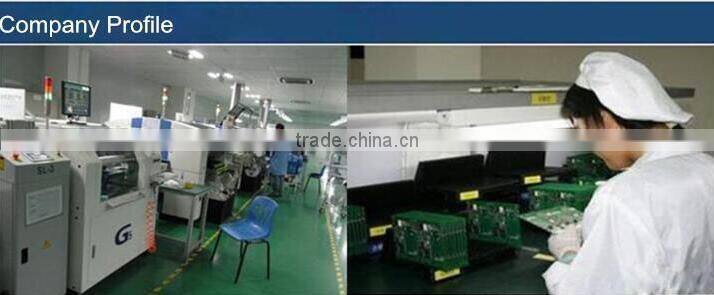

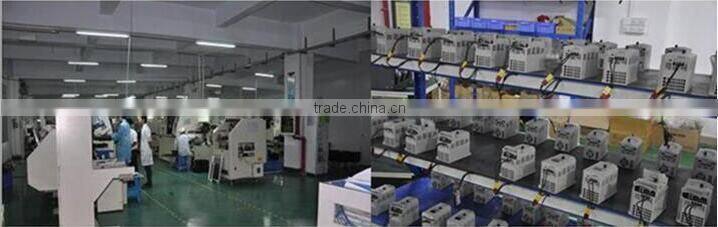

Mochuan Drives Group owns the complete industry chain , strong R&D research team ,powerful supply capacity perfect system of freight forwarding and first-class pre-sale and after-sale service on solutions ,installation ,operating faults , and other related question of PLC , heavy duty vfd frequency inverter for ac motor,permanent magnet Motor ,HMI(capacitance hmi , resistance hmi and metal hmi) etc .
Each product is finished by the strictly quality test system to ensure customer's benefit ,Except that , every order is checked by our professional engineer before shipping .
For every order ,correspondent user manual , installing video , diagram of wiring , operating principle ,even other cabinet ( not our products ) are made and sent to entirely free our customer .
Payment :20,000 dollars trade assurance from alibaba really relieve you of worries for the future .
Good after-sale service: Free replacment for 3months
Free maintenance for 18mohts
Technical and maintenance service for life-time
Due to the quality problem , free replacement part will be offered
Due to incorrect use , unauthorized repaire, fall etc , the maintenance cost will be chareged .
Why Choose Us ?
1. More than 15 Years' Experiece in Drivers Manufacturing: the complete industry chain: the strong R&D team, the powerful supply capacity, the prefect system of freight of forwarding, and the frst-class pre-sale service in any problem in operating PLC and converter.
2. Customization Production: size, model, package can be per customers' request.
3. Realizablw Quality: professional design team, strict QC system and strong transportation cooperation.
4. First-class Pre and After Service: we ensure the well processing of the practice of our products for customers.
Q1. How to install 0.75kw single phase 0-400hz heavy duty vfd frequency inverter for ac motor ?
11KW or less ,horizontal distance should be 4cm ; Vertical distance should be 10cm .
15KW and more ,horizontal distance should be 15cm ; Vertical distance should be 35cm .
Q2. How to correct connection of 0.75kw single phase 0-400hz heavy duty vfd frequency inverter for ac motor ?

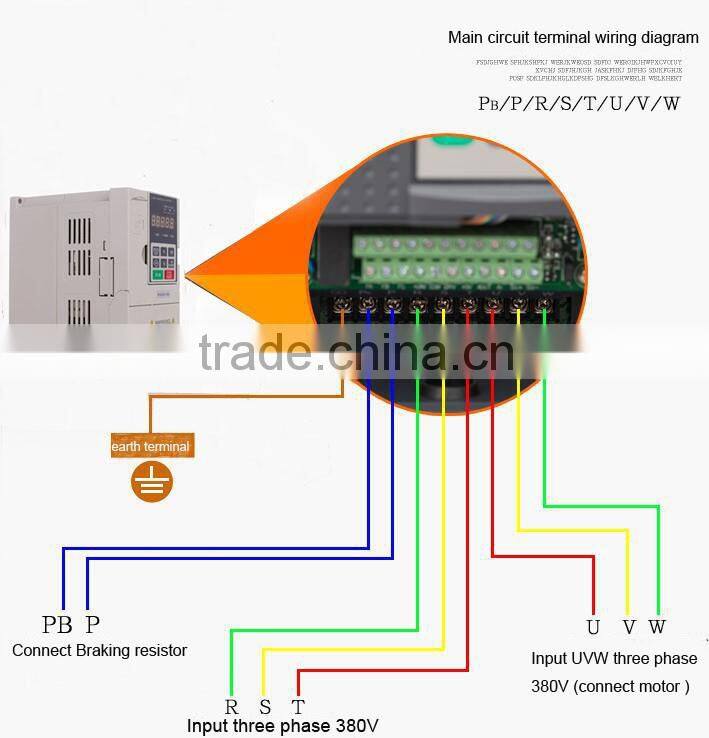

There are Single phase and 3phase ,inculding power and motor terminal . More information please click below link to know more ,thank you !
Q3. Under wrong parameter settings or after finish to setting parameter but can not running ?
Under standby condition ,Please restore the factory values . Parameters P50.20 change to be 22 then press confirm .
Q4. What information should provide ,if want to get a quotation?
You could tell us your requirements and usage or our models
Q5. Can be applied in the heavy load and high precision equipment of 0.75kw single phase 0-400hz heavy duty vfd frequency inverter for ac motor ?
Our MH20 vector frequency converter series ,mature application in the metal wirte drawing and plastic extrusion machine ,Widely used in high precision machining center motorized spindle and printing equipment
