Help CenterFuse Disconnector Vertical Type Fuse Switch Disconnector 3P
Related Products
-
Screw Fuse Base for D Type Fuse LinkUS$ 1 - 2MOQ: 500 Pieces -
Screw Fuse Switch for D Type Fuse & Cylindrical Fuse SwitchUS$ 1 - 2MOQ: 500 Pieces
-
Low Voltage Fuse Base RT NT Series for NH Fuse LinkUS$ 1 - 2MOQ: 500 Pieces
-
Low Voltage Fuse Links /HRC Fuse Link NH Series/Cylindrical Fuse Link/screw Fuse Link D Type-DIZDUS$ 1 - 2MOQ: 500 Pieces
-
Low Voltage Fuse Links /HRC Fuse Link/HN Series/Cylindrical Fuse Link/screw Fuse Link D Type-DIZD/Inner Device of CabinetsUS$ 1 - 2MOQ: 500 Pieces

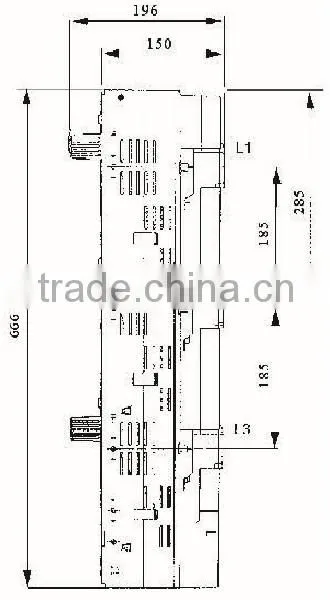

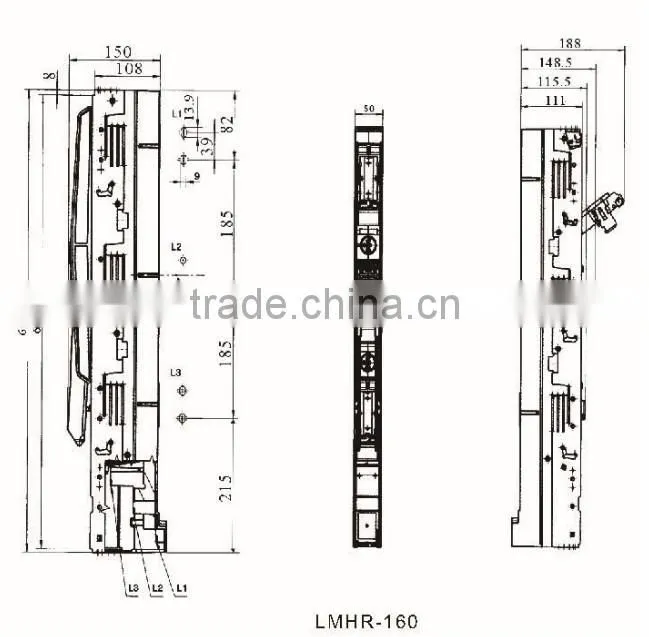

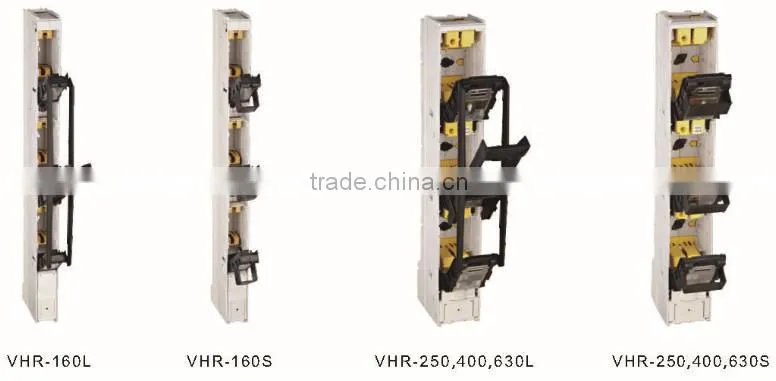

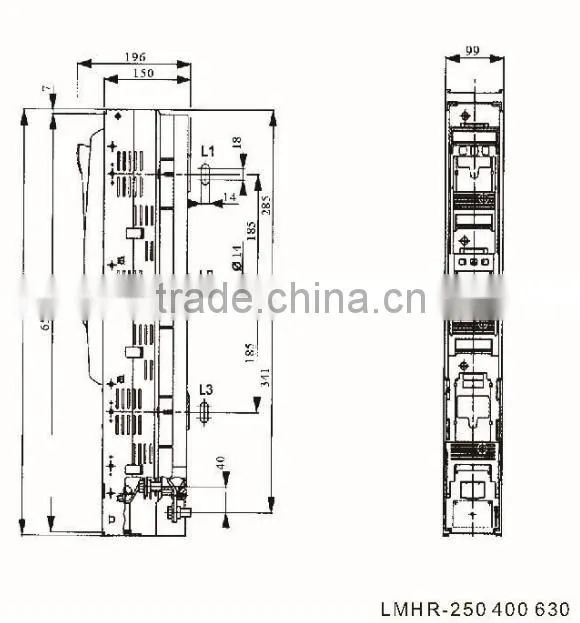

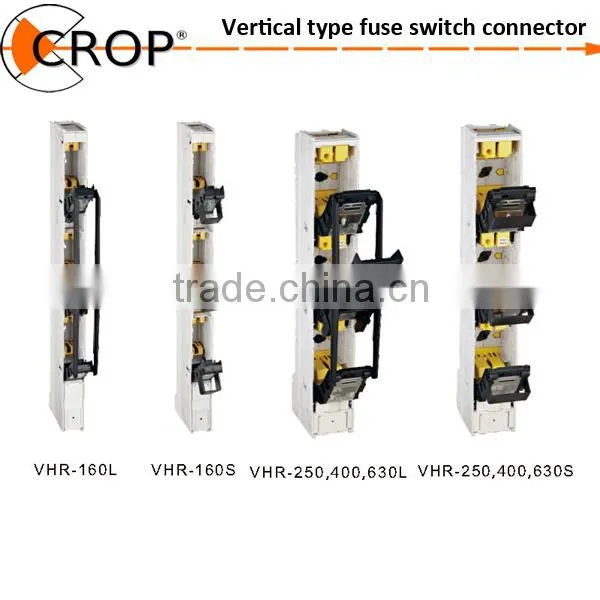

CRVR7 Vertical type Fuse switch disconnector
| Type of fuse switch | VHR160 | VHR250 | VHR400 | VHR630 | ||||||||
| Ue | 415,500,690 | |||||||||||
| Ith | 160 | 250 | 400 | 630 | ||||||||
| Hz | 50/60 | 50/60 | 50/60 | 50/60 | ||||||||
| Ui | 1000V | 1000V | 1000V | 1000V | ||||||||
| Uimp | 10kv | 10kv | 10kv | 10kv | ||||||||
| Use classes | 415V | 500V | 690V | 415V | 500V | 690V | 415V | 500V | 690V | 415 | 500V | 690V |
| AC23B | AC22B | AC21B | AC23B | AC22B | AC21B | AC23B | AC22B | AC21B | AC23B | AC22B | AC21B | |
| Degree of protection | IP30 | IP30 | IP30 | IP30 | ||||||||
| fuse size | 0 | 2 | 2 | 3 | ||||||||
| Ue | 415V | 500V | 690V | 415V | 500V | 690V | 415V | 500V | 690V | 415V | 500V | 690V |
| Ie | 160 | 160 | 100 | 250 | 250 | 200 | 400 | 400 | 350 | 630 | 630 | 500 |
| Wire specifiations | 70mm² | 120 mm² | 240 mm² | 300 mm² | ||||||||
| The default connection mode | Pressure | V-clamp | v-clamp | v-clamp | ||||||||
| The other connection mode | Screw&cable lug | |||||||||||
| Installation of busbar | Punched rectangle busbar;Unpunched rectangle busbar ;Other | |||||||||||
| Fixed way | Screw;Hook;Other custom accessories | |||||||||||
1. The quoted price is always valid for 30days due to the fluctuation of raw material cost.
Please feel free to contact us for the catalogues or prices.
2. Please kindly inform us which items you are interested & the best price will be provided you upon
receipt of your new inquiry ASAP.
3. Samples will be offered to you for our future cooperation.

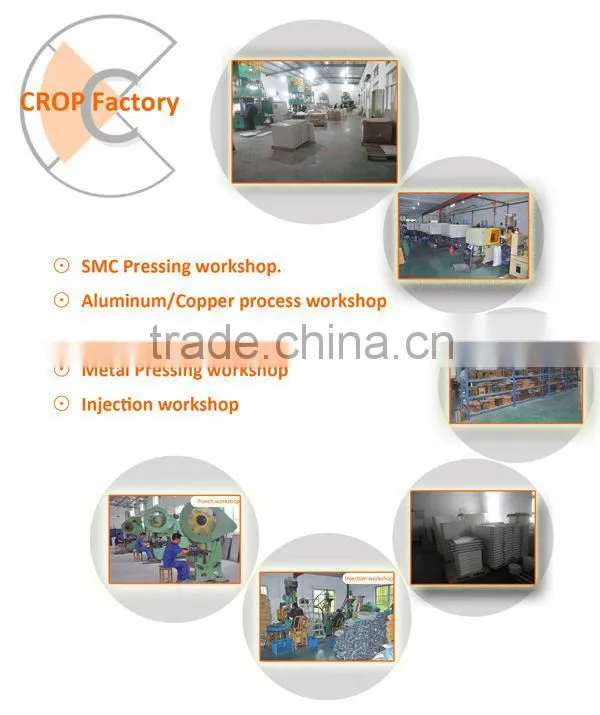

CROP started factory in 2001 from producing distribution box and ABC accessories , and then expands the whole line of ABC accessories and protection device for distribution box.
Lead the manufacturing of hospital furniture after 10 years' of development.
Export volume doubles every year. The dramatic growing speed enables us to set factory oversea.
Export to over 60 countries/region. Registered in EU, Russia, Panama, Costa Rica, Egypt, Kazakhstan, UAE, Algeria, Philippines etc.
Over 400 employees work in shift ensure the punctual delivery time.
R&D team is qualified to do customized project, OEM services.
Inspection is carried out all through the production process, warranty card provided.
Export sales team is professional to serve customers, quick respond and excellent after-sales.
Convenient and economy transportation, ship from Shanghai the biggest sea port of China, only 150KM away.
CE,ISO9001Certificate
