Waterproof Insulation Piercing Wire Connector

Waterproof Insulation Piercing Wire Connector thumbnail-1
Waterproof Insulation Piercing Wire Connector thumbnail-2
Waterproof Insulation Piercing Wire Connector thumbnail-3
Waterproof Insulation Piercing Wire Connector photo-1
Waterproof Insulation Piercing Wire Connector photo-2
Waterproof Insulation Piercing Wire Connector photo-3
US$ 0.1 - 10 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CROP
Model Number:
PCT13C 95-95
Contact Supplier Request Quote Chat Now
Yueqing Crop Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai or NingBo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name CROP
Model Number PCT13C 95-95
Type Other, Insulation Piercing Connector
Application Other, power
Gender Other, N/M

Under Volatge Cable Insulation Piercing Connector





Clamp PCT13C 95/95




PRODUCT DESCRIPTION:

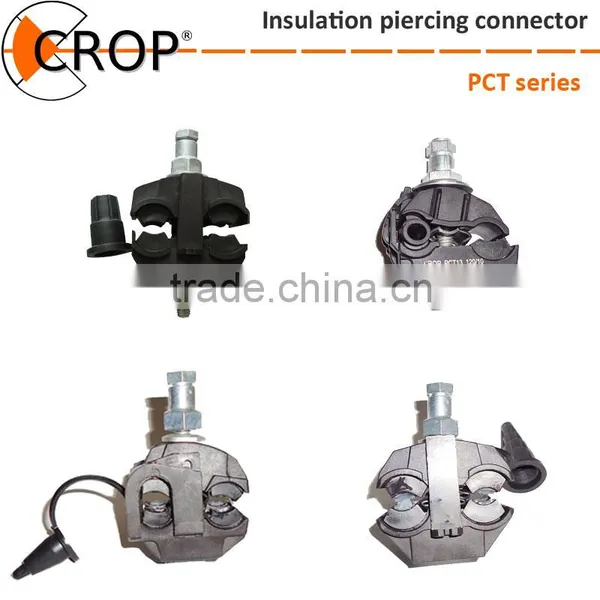

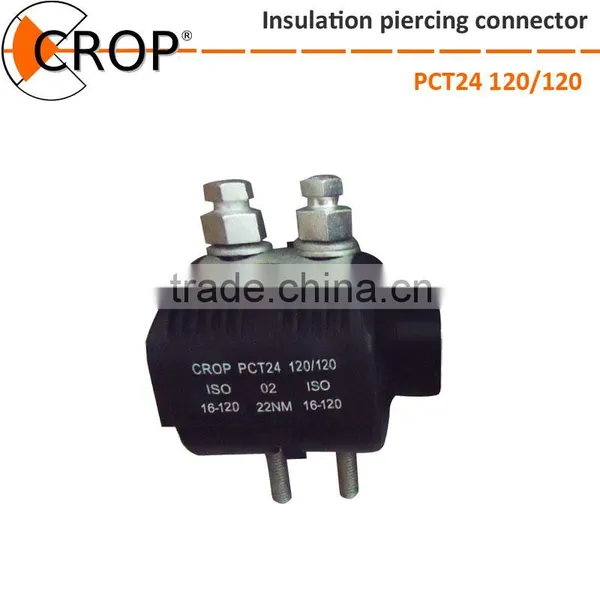

Purpose of Insulation piercing connectors(IPC) is to connect main and one(PC13),two(PC24) tap conducor's of section,how is written on IPC body.Type without letter B serves to connect isolated conductors,with letter B bare conductors.IPC for one tap conductor is equipped with cable termination cap PCEC16/120, for two output wires-no cap.

IPC consists from two glass-fiber reinforced plastic parts,which are fited with two brass tinned teeth's,which are coated with UV-curing silica grease and the teeth are fitted with rubber insulation.This set is associated with the bolt,nut and pinch fixation segment.The terminals marked T are equipped with tear head. The lower part of the clamp is designed to be hold by the key 17 and the ventilation chamber,providing optimal ventilation of IPC.

Product can be also used as tap connector inside low boltage boxes.

PRODUCT RANGE:

Model number     Cable type      Section
PCT13C 95/95 RE/RM,isolated to isolated,Cu/Al  Main:16-95 sqmm   Tap:16-95 sqmm
PCT13C 120/120  RE/RM,isolated to isolated,Cu/Al  Main:16-120 sqmm Tap:16-120 sqmm
PCT13C 150/150  RE/RM,isolated to isolated,Cu/Al  Main:16-150 sqmm Tap:16-150 sqmm
Model number     Cable type      Section
PCT13CB 95/95 RE/RM,isolated to bare,Cu/Al  Main:16-95 sqmm   Tap:16-95 sqmm
PCT13CB 120/120  RE/RM,isolated to bare,Cu/Al  Main:16-120 sqmm Tap:16-120 sqmm
PCT13CB 150/150  RE/RM,isolated to bare,Cu/Al  Main:16-150 sqmm Tap:16-150 sqmm



Material:
UV & fire resistant PA66,PVC, dacromet or H.D.G steel(Optional)finished.
Blade: Copper Tinned ( Brass Tinned,aluminum can be required)











About CROP



CROP, as a professional manufacturer and supplier, is specialized in developing, producing electric equipments fitting all over the world.



Please kindly contact with us freely. High quality, reasonable price, best service are offered to you.

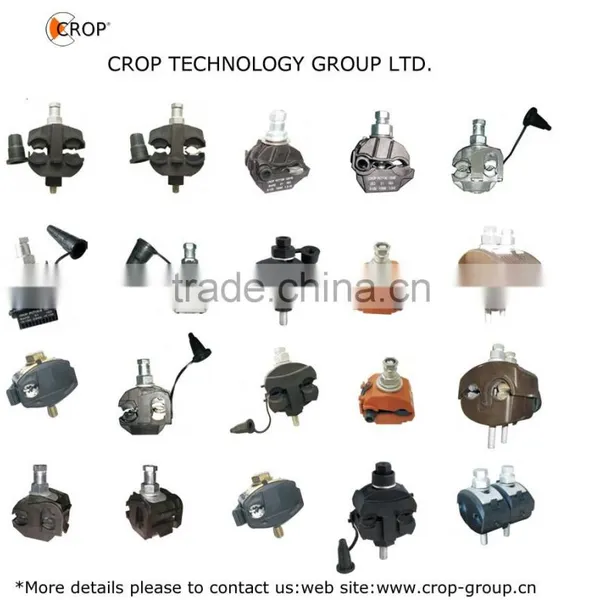

CROP CHINA is manufacturer of



* SMC, DMC, plastic mold for distribution box



* LV Piercing clamp for voltage 1-10kv



* Low voltage Aerial Bundled Cable Accessories



* Electrical safety and security device



* Mini circuit breakers, fuse fittings



* Overhead lines clamps and accessories



* Cable accessories for electrical system
