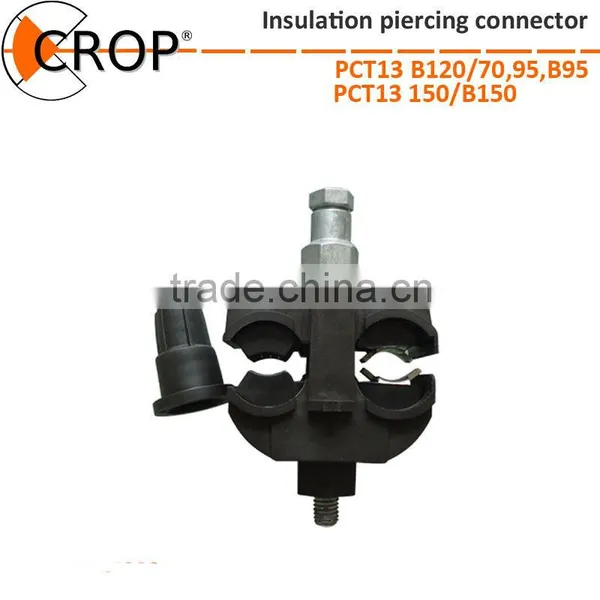

Insulated Piercing Connector PCT13B 150/150
PRODUCT DESCRIPTION:
IPC consists from two glass-fiber reinforced plastic parts,which are fited with two brass tinned teeth's,which are coated with UV-curing silica grease and the teeth are fitted with rubber insulation.This set is associated with the bolt,nut and pinch fixation segment.The terminals marked T are equipped with tear head. The lower part of the clamp is designed to be hold by the key 17 and the ventilation chamber,providing optimal ventilation of IPC.
Product can be also used as tap connector inside low boltage boxes.
PRODUCT RANGE:
| Model number | Cable type | Section |
| PCT13 120/B70 | RE/RM,isolated to bare,Cu/Al | Main:16-120 sqmm Tap:4-70 sqmm |
| PCT13 B120/70 | RE/RM,bare to isolated,Cu/Al | Main:16-120 sqmm Tap:4-70 sqmm |
| PCT13 120/B95 | RE/RM,isolated to bare,Cu/Al | Main:16-120 sqmm Tap:10-95 sqmm |
| PCT13 B120/95 | RE/RM,bare to isolated,Cu/Al | Main:16-120 sqmm Tap:10-95 sqmm |
| PCT13 150/B150 | RE/RM,isolated to bare,Cu/Al | Main:6-150 sqmm Tap:6-150 sqmm |
