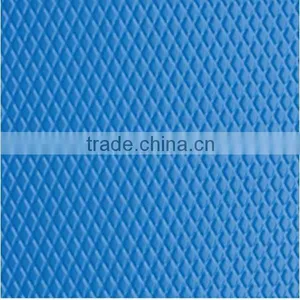

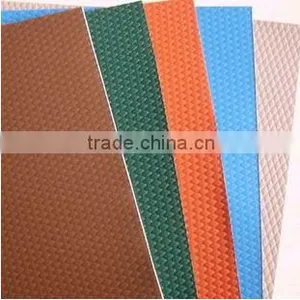

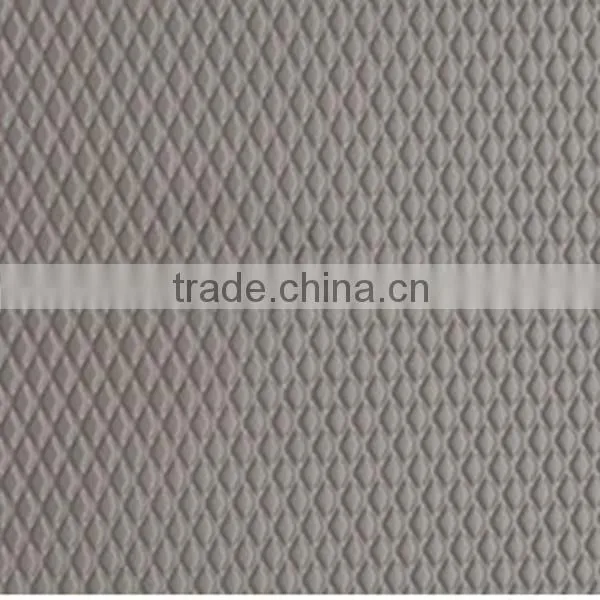

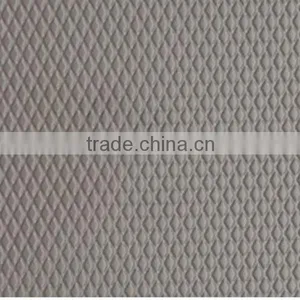

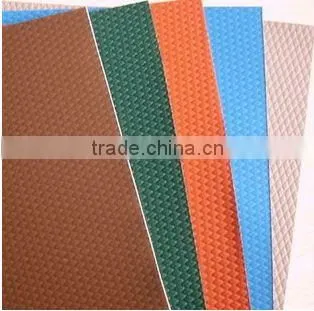

Diamond Embossed Aluminum Coil
We are the exporter of diamond pattern embossed aluminum coil, prepainted aluminum coil, color coated aluminum coil & stucco embossed aluminium coils in China. Mainly produce aluminium thickness is from 0.02mm-3.0mm with PVDF,PE & ACRYLIC coating, and the max width is 2000mm. stucco embossed aluminium coils include Gridirion pattern,Diamond pattern,Indication pattern etc.
Features
1) Process: pre-treatment, continuous painting and baking for times.
2) Our products can keep excellent quality and stability
3) Applications:color coated aluminum coils are used for curtain walls, ceilings, roof and packing.
4) Thickness: 0.018 - 0.7mm; width: 30 - 1350mm.
Alloy |
A1100,A3003, A8011,etc |
Temper |
H16,H18,H26 |
Thickness |
0.10mm -1.5mm |
Width |
Standard width:1200mm |
900mm-1600mm | |
Diameter |
Standard diameter:1200mm,1000mm,1240mm |
Interior diameter:405mm,505mm | |
Weight |
1.5MT/coil,2.5MT/coil,3.0MT/coil |
Coating |
PE, PVDF, |
Surface |
Color coated |

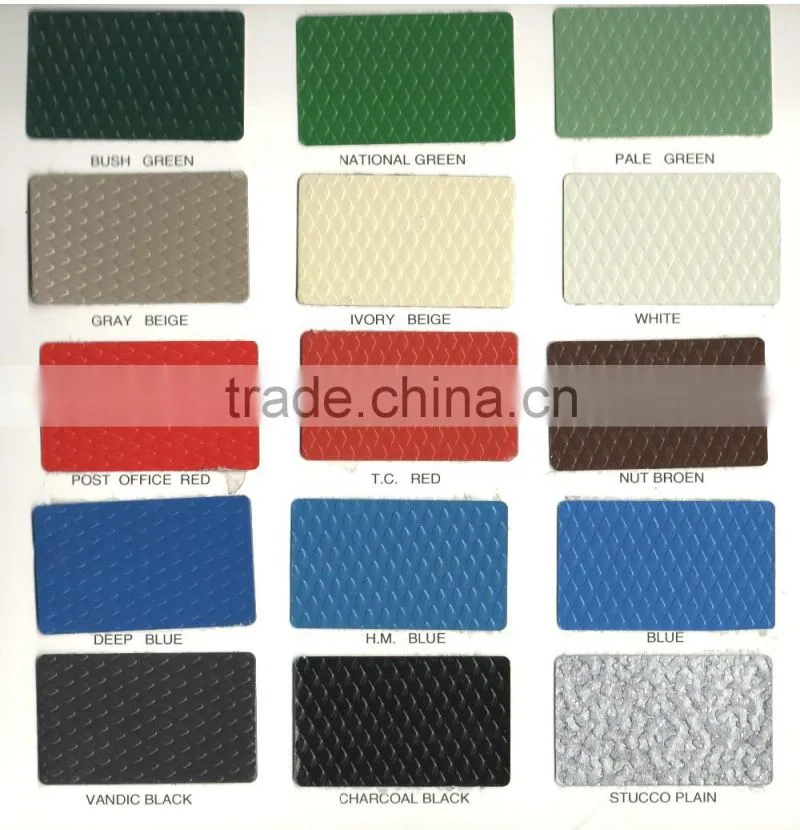

Color |
As to RAL |
Gloss |
10 - 90%(EN ISO-2813:1994) |
Coating Thickness |
P E : more than 18 micron |
PVDF: more than 25 micron | |
|
Coating Hardness (pencil resistance) |
More than 2h |
Coating adhesion |
5J(EN ISO-2409:1994) |
Impact Resistance |
No peeling or cracking(50 kg/cm,ASTMD-2794:1993) |
|
Flexibility (T-bend) |
2T |
MEK resistance |
More than 100 |
Company Information
Beijing Jing Chuang Jiuzhou Aluminum Co., Ltd. was founded in 2011. It is located in the capital of China, Beijing City,The company is near from the Tianjin Port.Our company occupies 100,000 square meters and has more than 300 employees. We are a private enterprise, as well as a professional manufacturer integrating research, production and management. And we have formed a large sales net at home and abroad.
Our company is engaged in researching, producing and marketing aluminum sheets, aluminum coils,aluminum checkered plate, prepainted aluminum plate and alloy aluminum plate . Annual production is about 36,000 tons. We can produce almost 1-8 series of aluminium alloy. Especially, 1, 3, 5, 8 series products have reached the leading level in the world and are favored and recognized by many customers. They are widely used in packaging, electronics & electrics, construction, transportation, oil reserve, aeronautics & astronautics and light industries. We have established a long-term cooperation with hundreds of domestic and foreign enterprises.
We are also increasing customers' demands and enlarge expansion of production capacity, in order to provide customers with a full range of services and make unremitting efforts. JINGCHUANGJIUZHOU aluminum not only provides quality product and complacency, but also considers to meet customers' demands as its mission.
