Help CenterRigging Screw Eye&Fork
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
K-Wing
Model Number:
Europe Type
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rigging Screw Terminal&TerminalNegotiableMOQ: 1 -
Stainless Steel Rigging Screw Fork&TerminalNegotiableMOQ: 1
-
Stainless Steel Rigging ScrewNegotiableMOQ: 1000 Units
-
Stainless Steel Wire Rope Swage FittingsNegotiableMOQ: 1000 Units
-
Stainless Steel Architectural Rigging HardwareUS$ 0.8 - 20MOQ: 1000 Pieces
Place of Origin
Shandong, China
Brand Name
K-Wing
Model Number
Europe Type
Application
marine hardware
Material
Stainless steel
Dimensions
M5 To M16
Specifications

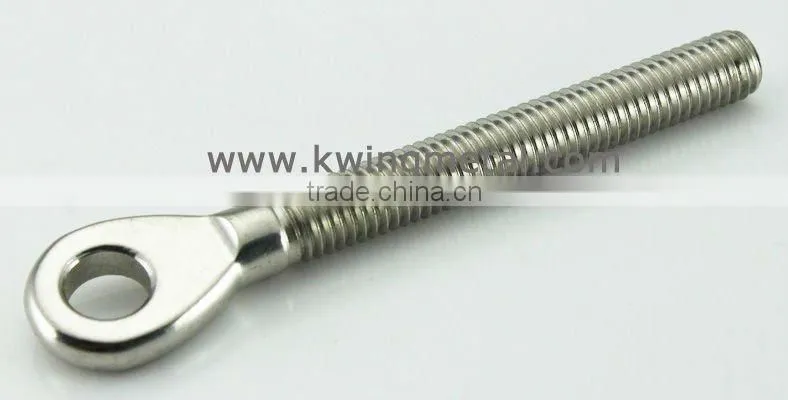

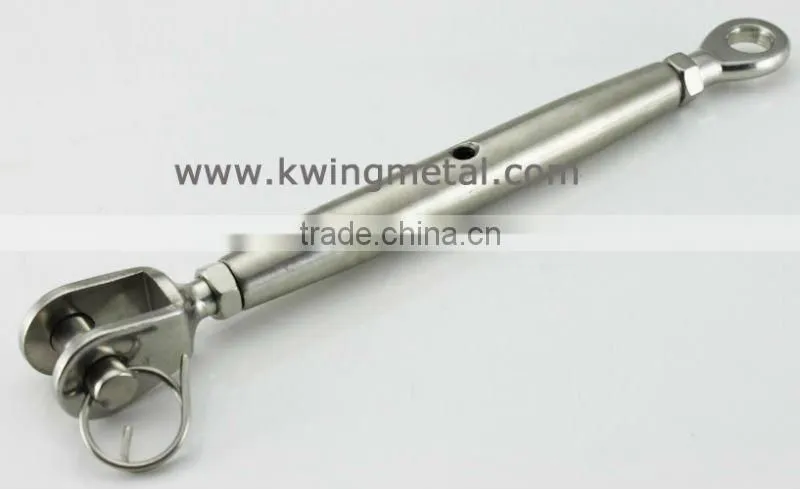

Rigging Screw Eye&ForkHigh Polished Stainless Steel - AISI 316
Rigging Screw Eye&Fork
High Polished Stainless Steel - AISI 316
| Art. No. | G | L1 | L2 | L3 | D1 | D2 | D3 | A1 | A2 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| MR0158-0005 | M5 | 188 | 129 | 12 | 5 | 5.5 | 12.0 | 7.5 | 3.0 |
| MR0158-0006 | M6 | 206 | 138 | 12 | 5 | 6.5 | 14.0 | 7.5 | 4.0 |
| MR0158-0008 | M8 | 244 | 164 | 13 | 6 | 8.5 | 17.0 | 9.5 | 5.0 |
| MR0158-0010 | M10 | 271 | 188 | 15 | 8 | 10.5 | 21.0 | 11.0 | 6.0 |
| MR0158-0012 | M12 | 343 | 235 | 25 | 12 | 13.0 | 25.0 | 14.5 | 8.0 |
| MR0158-0014 | M14 | 381 | 262 | 25 | 12 | 13.0 | 28.0 | 14.5 | 9.0 |
| MR0158-0016 | M16 | 426 | 296 | 33 | 14 | 14.5 | 31.0 | 18.0 | 10.0 |
| MR0158-0020 | M20 | 518 | 364 | 50 | 19 | 19.5 | 40.0 | 24.0 | 15.0 |
Send Inquiry to This Supplier
Business Type
Trading Company
Year Established
2008
Factory Size
Below 1,000 square meters
Total Employees
5 - 10 People
