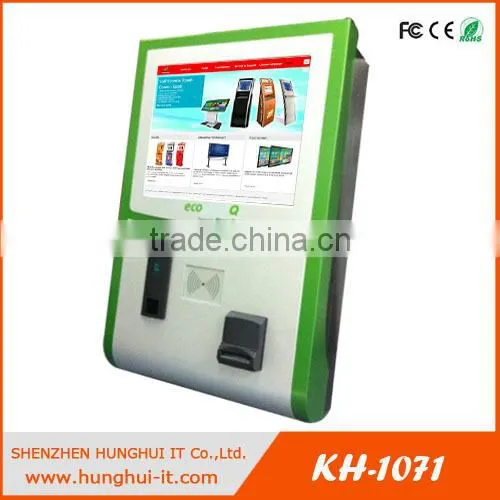

Wall Mounted Self-service Touch Screen Lottery Terminal
Quick Information
~Robust 1.5mm-2.0mm cold-rolled cabinet
~Easy service access through back
~Ideal for lottery selling with Non-cash payment
~Easily customizable appearance
Shenzhen Hunghui IT Co., Ltd product range Information kiosk, Touch Screen Kiosk, Self-service Payment Kiosk, Digital Signage Kiosk, Advertising Device etc.
Lottery Terminal Basic Configuration | |||
Items |
Specification Details |
||
Monitor |
Screen Size |
15", 17", 19", 22"...etc |
|
Resolution |
WSXGA+, 1024*768 / 1280*1024 |
||
Brightness |
350cd/m2 |
||
Contrast |
1000:1 |
||
View Angle |
178 V/H |
||
Touch Screen |
Screen Size |
15", 17", 19", 22" |
|
Screen Type |
SAW(Surface Acoustic Wave) touch, Infre Red Touch, Optical |
||
Resolution |
4096x4096 |
||
Feature |
High Transparence, Precision and Durability |
||
Computer Parts (can be customized) |
Motherboard |
Gigabyte H61, H81 |
|
CPU |
Intel Pentium G2030, dual core 3.0GHz, Cache 3MB, Intel HD Graphics (I3/I5/I7 optional) |
||
RAM |
DDR3 1333 2G/4G/8G |
||
H.D.D |
3.5inch 500G HDD, 16Mb Cache, 7200rpm, SATA 2.0 interface |
||
Audio Chip |
Integrated Realtek ALC887 8 channel audio chip |
||
NIC |
Onboard Gigabit Network Card |
||
I/O Interface |
10*USB2.0, 1*VGA, 1*LTP, 10*RS-232, 1*RJ-45, Integrated Network Card, Sound Card |
||
Power Supply |
Delta / Li-teon / Great Wall / HUNT-KEY |
||
| Speaker | Stereo loudspeaker, 8Ω, 2x5W |
||
Kiosk Cabinet |
Material |
Cold-rolled Steel ST12 SPCC with1.5mm-2.0mm thickness |
|
Coating |
Car painting technology / powder coated Steel cabinet sprayed metallic paint, Anti-rust, Anti-acid, Anti-dust |
||
Feature |
Easy service access through front and back |
||
Color or Logo |
Customizable |
||
Parts |
*Independent power supply *Multimedia speakers *Internal ventilation system |
||
| Power Supply | Input Voltage |
AC 110V-240V |
|
| Frequency | 50Hz to 60Hz | ||
| OS | Windows 7 / Windows 8 | ||
Package |
Safe packing with bubble foam, PE cotton and in poly wood case |
||
Additional Functions Depending on Your Requirements | |||
Printer |
Thermal printer |
58mm/76mm/80mm/112mm paper width RS-232 / USB interface |
|
Card Reader |
Magnetic Card Reader |
Magnetic card (Tr 1/2/3) compliant with ISO and compatibility standard |
|
Chip Card Reader |
Chip card reader, Compliant with EMV standard, IC card reading and writing |
||
RFID Card Reader |
Contact / Contactless card reader /NFC Reader |
||
Keyboard |
3DES Metal EPP; 16 keys, waterproof, dustproof, vandal proof IP65 |
||
Bar Code Scanner |
1D barcode scanner (Honeywell /Barcode Hand Scanner...etc), single-line scanner, multi-line barcode scanner |
||
QR / 2D code scanner(Honeywell brand) | |||
Other Peripherals |
wifi/GPRS/Webcamera/3G |
||
Kiosk Application
Public places: Bus, Sub Way, Airport, Gas Station, Book store, Exihibition Hall, Park,
Stadium, Museum, Convention Center, Ticket agency
Business Organization:Supermarket, large-scale shopping mall, chain shops,
star-rated hotels, restaurant, travel agency, Pharmacy
Financial Organization: Banks, negotiable securities, funds, insurance company, Pawnshop
Non-profit Organization: Telecommunications, post office, hospital, school
Entertainments: Movie theaters, fitness halls, country clubs, massage room, bars, cafe,
internet bar, beauty shop, golf course
Shipping
Sample 3-7 days to the World by air or DHL/Fedex etc express
bulk order to the world by sea or air upon the country
