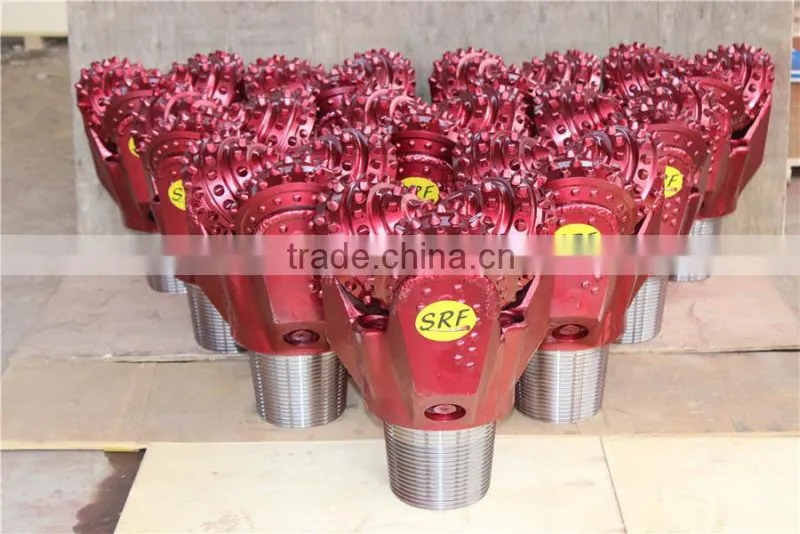

Help CenterBrand New 26" Tricon Bit IADC 115 Conn 7-5/8 Reg. Pin Inch
Related Products
-
17 1/2" Steel Tooth Tricone Bits for Oil and Gas Well DrillingUS$ 3,000 - 3,000MOQ: 1 Piece -
PDC Drag Drill Bit With 4 WingsUS$ 100.00 - 100.00MOQ: 1 Piece
-
Tricone Rock Bit NozzlesUS$ 1,200 - 1,200MOQ: 1 Piece
-
8 1/2 IADC 127 Steel Tooth Tricone BitUS$ 800 - 2,000MOQ: 1 Piece
-
Tricone Single CuttersNegotiableMOQ: 1 Piece
1. Cutting structure this type TCI tricone bits:
The durability of premium tungsten carbide insert is improved with new formulas and new techniques for insert bit.
2. Gauge structure this type TCI tricone bits:
Multiple gauge protection with gauge trimmers on the heel of cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
3. Bearing structure of this type TCI tricone bits:
High precision bearing with two thrust faces. Ball lock the cone. Hardfaced head bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved.
4. Seal and Lubrication of this type TCI tricone bits:
Premium O-ring, optimal seal compression and curved seal structure can enhance the seal performance. The pressure compensator system and advanced grease can greatly increase
The lubricating reliability.
5. Product Application of this type TCI tricone bits:
It can receive high WOB in the conventional drilling. It is suitable for various formations by matching cutting structure with different tooth shape, tooth density and tooth exposure height.
| IADC | WOB (KN/mm) |
RPM (r/min) |
Applicable Formations |
| 114/116/117 | 0.3~0.75 | 180~60 | Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, etc. |
| 124/126/127 | 0.3~0.85 | 180~60 | Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc. |
| 134/135/136/137 | 0.3~0.95 | 150~60 | Soft to medium formations with low compressive strength and high drillability, such as medium soft shale, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc. |
| 214/215/216/217 | 0.35~0.95 | 150~60 | Medium formations with high compress strength, such as medium soft shale, hard gypsum , medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc. |
| 227 | 0.35~0.95 | 150~50 | Medium hard formations with high compressive strength, such as abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble,etc |
| Note: The upper limits of WOB and RPM in above table should not be used simultaneously. | |||
