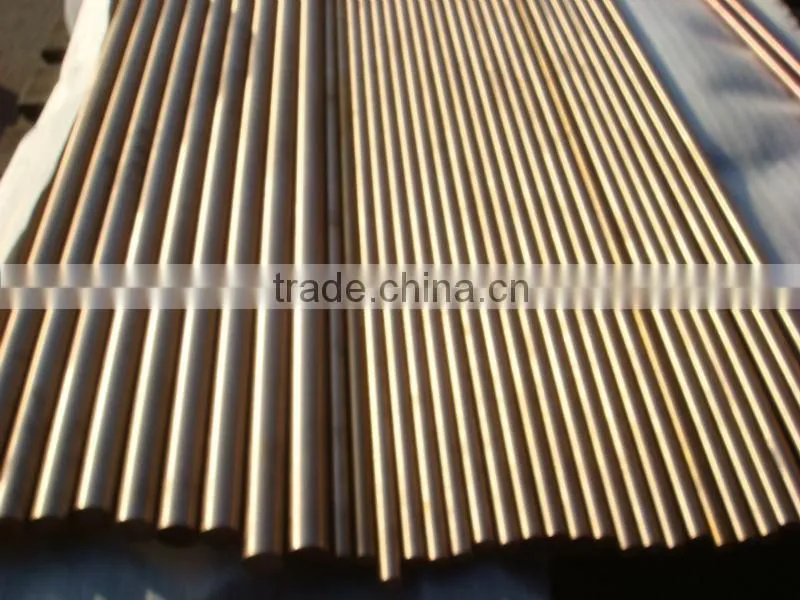

Round Bar C18135 Cadmium Chromium Copper ASTM B624
- 30 Ton / Tons per Month
- xiamen china
- T/T
- Hot Selling High Fatigue C83600 Bronze Solid Bar Copper Bars Rods Non-ferrous Metal For Industrial Fittings
- Large Diameter Tin Bronze Copper Bars Factory C95400 C90710 C86300 Posphor Bronze Aluminium Bronze Brass Bars
- Cylindrical Customized C83600 Copper Alloy Non-ferrous Metal RG6 RG5 C95400 Bronze Solid Bars Rods Mold Accept Cut
- C1020/c1100/c1221/c1201/c1220 Brass Flat Bar Rods Hot Sale High Density Copper Bar/copper Rod
- C1221/c1201/c1220/c1020/c1100 Copper Alloy Rod/bar China High Quality China Factory Large Size
- Competitive Price Copper Alloy Rod/bar C1221/c1201/c1220/c1020/c1100 Chinese Manufacturer Price
Product Details
Place of Origin: | Fujian, China | Brand Name: | ALB-ALLOY | Model Number: | C18135 |
Application: | Connector Industry | Diameter: | from dia.1mm to dia.50mm | Shape: | Round |
Length: | 3000mm | Grade: | Copper | Cu (Min): | abt. 98.50% |
Alloy Or Not: | Is Alloy |
Product Description
Specifications
Round Bar C18135 Cadmium Chromium Copper ASTM B6241,higher tensile strength
2,higher conductivity
Round Bar C18135 Cadmium Chromium Copper ASTM B624
CuCrCd-UNS.C18135 Cadmium Chromium Copper alloys
A). CuCrCd-UNS.C18135 Cadmium Chromium Copper alloys Details
CuCrCd-UNS.C18135 Chromium Cadmium Copper alloys
CuCrCd-UNS.C18135 Chromium Cadmium Copper alloys is as the commonly copper alloys for the conductor material, and it is notable for it higher tensile strength, higher conductivity and excellent resistance to the softening.
C18135 Chromium Cadmium Copper Alloys include abt. 0.40% Cadmium and 0.40% Chromium, which can reach abt. 470 MPA tensile strength and 85% Min. % IACS electrical conductivity respectively.
Typical Application for CuCrCd-UNS.C18135 Cadmium Chromium Copper:
Electrical Industry: Resistance Welding Electrodes, Electrical Components, Contacts and Studs, Electrical Conductor Material
Industrial: Aerospace and Cable industry, and Military material application
Available Sizes:
Custom Diameter & Sizes, Random Mill lengths
Available Products (forms):
Round bars, Flat bars, Square bars, Wires
Custom shapes are available upon request.
B).
CuCrCd-UNS.C18135 Cadmium Chromium Copper
Chemical Composition:
Cr: 0.20-0.60%
Cd: 0.20-0.60%
Cu: Reminder
Note: Copper including the silver content.
C).
CuCrCd-UNS.C18135 Cadmium Chromium Copper
Typical Physical Properties:
Density at 68°F: 0.323 Lbs./In.3
Specific Gravity: 8.94
Melting Point (Liquidus): 1080°C (1976°F)
(Solidus): 1070°C (1958°F)
Coefficient of Thermal Expansion per °F: 9.8 x 10-6 (77-212°F)
Electrical Conductivity at 68°F (volumetric): 90% IACS (aged and drawn)
Thermal Conductivity Btu/ft.2/ft./hr./°F at 68°F: 210
Modulus of Elasticity - Tension: 20,000 ksi
Note:
1). the units are based upon US Customary.
2). the typical physical properties apply to age hardened products.
D). CuCrCd-UNS.C18135 Cadmium Chromium Copper
International Specification/Production Standards:
Rods/Bars/Wires: UNS.C18135, CDA 18135, ASTM B624
European Standards: CuCrCd, DIN 17666
Note:
ASTM: American Society for Testing and Materials
Note: Unless otherwise specified, material will be produced to ASTM.
E).
CuCrCd-UNS.C18135 Cadmium Chromium Copper
Mechanical Properties:
The detailed Mechanical Properties will be available on request from customers.
F). CuCrCd-UNS.C18135 Cadmium Chromium Copper
Most Commonly Temper Used:
Rods/Bars/Wires: 1/2 H (TD02), H (TD04), HT(TH04)
