car dvb t2 digital tv receiver with CE certificate

car dvb t2 digital tv receiver

(Thailand, Russia, Turkey, Greece, Colombia)

Specifications
Support H.264/AVC,MPEG-2,MPEG-4 video Decode
Available to upgrade the firmware via USB slot.
 support  speed: 60KM/H
USB Recorder, PVR.
Standard for DVB-T and DVB-T2
Auto searching and upgrading bit rate information
Storage for 2000 channels
Memory function after power off.
Support OSD TELETEXT

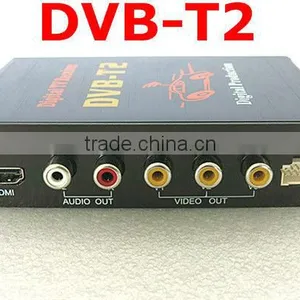

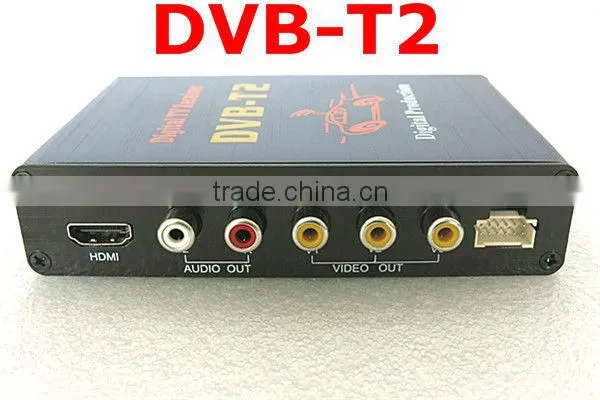

4 video output (Composite video CVBS) and 2 audio output (Double track stereo output)
Multi language Support: English, Russian, French, Germany, Spanish, Italian, Portuguese, Danish, Czech, Thailand (We can do what you need).
 EPG program guide and PIG (Picture in Graphics) Function.
6MHZ,7MHZ,8MHZ Band-wide
HDMI output(One Route)
Video Output(Three Route)
Audio-R, Audio-L Output.
Support TR output and extended remote sensor receiver.
Google DVB-T2C to get perfect technology support and upgrade software.

Technical Parameters
Input frequency: VHF 177.5 MHz-226.5 MHz, UHF 474MHz-858MHz
Modulate: QPSK/16-QAM/256-QAM
Decode standard: MPEG4,MP@ML,MP@HL,H.264/AVC
Audio decode standard: MPEG-1,MPEG-2,Layer and 2,MPEG-4,HE-AAC
4 Way video output(One way from power socket if need):
Output Resistance: 75 ohm
Output Voltage:1.0’20mVp-p
Audio output:2Vp-p
Power supply: DC 12V-24V 6W
Connecting Terminal:

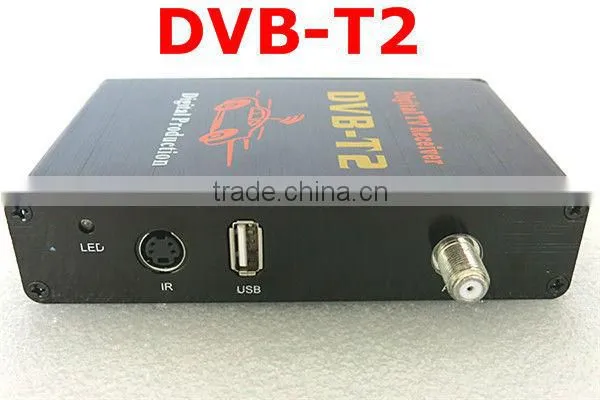

Active amplifier antenna input jack (5V supply), Quadrate car power input jack (Battery+, Battery-, ACC+) , R/L Audio 3X Video output External remote control IR cord jack, external power supply input jack, USB upgrade socket, HDMI High-definition output jack.
8>. Applicable Power Supply: Car storage battery (12V~ 24V)
9>. Outer dimension: 125mm x 85mm x 26mm
10>. Application Temperature: -5 ~40 degree
11> . Storage Temperature: -20~60 degree
