13.56Mhz RFID Reader HF M1 Handheld Reader/writer

FOB Price

Negotiable / Piece

50 Pieces(Min. Order)

Port Shenzhen
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Used	Interface Type	Other, RS232
Optical Resolution	0.15mm (smallest) 0.125mm (largest)	Scan Speed	100 times for one sec
Brand Name	OEM	Model Number	HTD3000
Place of Origin	Guangdong, China

Product Description

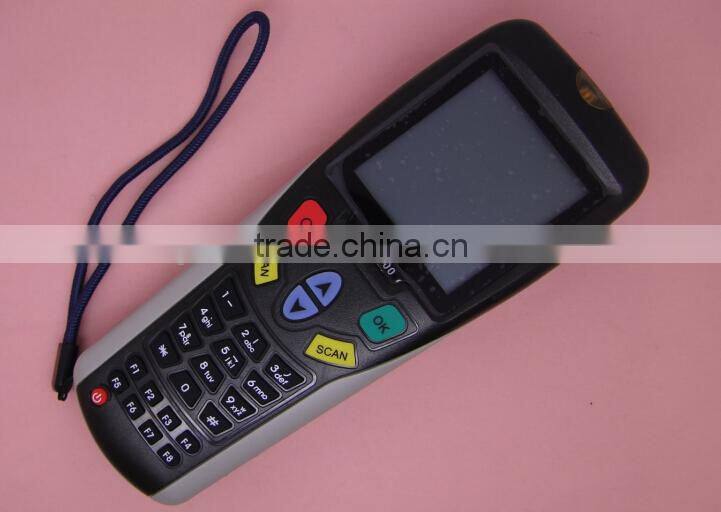

13.56Mhz RFID reader HF M1 handheld reader/writer

The off line hand held reader designed for the Barcode

(EAN barcode, UPC barcode, ITF barcode as well as 128 barcode etc.),

its unique character display can read the information of the corresponding sector of the card through LCD large screen. Can be widely used in security certification, fake prevention, inspection, goods checking, information collection and other applications.

Function

♦ Can be identify many barcodes: UPC-A/UPC-E/EAN(8,13,128), code(128,39,93) etc.

♦ Laser barcode engine

♦ Speed of scanning: 100 times for one sec.

♦ CPU:ARM9, up to 140MHz;

♦ Display resolution factor:160*160 lattice(Words :10 rows and 10 lines);

♦ Waterproof key-press: 27 individual, includes of number key, function key and power switch key;

♦ Data memory: large capacity with low power consumption; RAM 64 Mbits; Flash Memory:16~144Mbit;

♦ Power systems: lithium ion power(capacity:2000mAh);

♦ Security module: 2 PSAM cards standard;

♦ Real-time clock, backup power suit

Technical index

Type of barcode	UPC-A/UPC-E/EAN(8,13,128)/CODE (128,39,93)etc.
Resolution	0.15mm (smallest) 0.125mm (largest)
PSAM card protocol	ISO7816
Communication port	Standard serial port
Charger	KW006-A
Size(mm) Weight(g)	1857035mm 280g
Charge power	Special charger
temperature ² work ² storage	-5℃-50℃ -20℃-70℃
Humidity level	30% till 85%RH
Industry grade	IP54
Attack text height	1.5 meters
color	Picture reference
Program	Support development Language :C
