PFXGP4203TAD PROFACE Hmi GP-4203T
US$ 1.00 - 1.00
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
proface
Model Number:
PFXGP4203TAD
Payment & Shipping
Payment Methods:
Port of Shipment:
SHEN ZHEN/ HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PFXGP4201TAD PROFACE Hmi GP-4201TUS$ 1.00 - 1.00MOQ: 1 Piece -
PFXGE4408WAD PROFACE Hmi GC-4408WUS$ 1.00 - 1.00MOQ: 1 Piece
-
PFXGP4501TMD PROFACE Hmi GP-4501TUS$ 1.00 - 1.00MOQ: 1 Piece
-
New Original Touch Screen GP4501TMA / PFXGP4501TMAUS$ 1.00 - 1.00MOQ: 1 Piece
-
PFXGP4105W1D PROFACE Hmi GP4105W1DUS$ 1.00 - 1.00MOQ: 1 Piece
Place of Origin
Japan
Brand Name
proface
Model Number
PFXGP4203TAD
Kwoco Automation Co.,ltd have good price on PLC+HMI+INVERTER+SERVO
The Advantages Of Brand: brand:Mitsubishi, Simatic Siemens, Panasonic, Delta, NAIS, Yaskawa, ABB, Omron, Mitsubishi, Proface, Weinview, Hitech,Yaskawa,Fuji;Sick, Keyence,Koyo, Ifm
NEW Original productS!!!
more information contact:
Functional Specification
| Display Type | TFT Color LCD |
|---|---|
| Display Size | 3.5" |
| Resolution | 320 x 240 pixels (QVGA) |
| Effective Display Area | W70.56 x H52.92 mm [W2.78 x H2.08 in.] |
| Display Colors | 65,536 Colors (No blink)/16,384 Colors (Blink) |
| Backlight | White LED (User nonreplaceable parts. When replacement is required, contact your local distributor.) |
| Brightness Control | 16 Levels (Adjusted with the touch panel or the software) |
| Backlight Service Life | 50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%) |
| Language Fonts | Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.) |
| Character Sizes | Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts |
| Font Sizes | Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times. |
| 8 x 16 dots | 40 char. x 15 rows |
| 16 x 16 dots | 20 char. x 15 rows |
| 32 x 32 dots | 10 char. x 7 rows |
| 8 x 8 dots | 40 char. x 30 rows |
| Program Area | FLASH EPROM 132 KB (Equivalent to 15,000 steps)*1 |
| Variable Area | SRAM 64 KB (Rechargeable Lithium battery for backup memory) |
| Application Memory | FLASH EPROM 16 MB (including a logic program area) |
| Data Backup | SRAM 320 KB (Rechargeable Lithium battery for backup memory) |
| Clock Accuracy | ±65 sec/month (deviation at room temperature and power is OFF)*2 |
| Touch Panel Type | Resistive Film (analog) |
| Touch Panel Resolution | 1,024 x 1,024 |
| Touch Panel Service Life | 1,000,000 times or more |
| Serial (COM1) | RS-485 (isolation) Asynchronous Transmission, Data Length: 7 or 8 bits, Parity: none, Even or Odd, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5 kbps (MPI), Connector: D-Sub9 (socket) |
| Serial (COM2) | None |
| Ethernet (LAN) | IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1 |
| USB (TYPE-A) | Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m [16.4ft.] or less |
| USB (mini-B) | Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4ft.] or less |
| SD Card | None |
General Specification
| International Safety Standards | CE UL |
|---|---|
| Rated Input Voltage | DC 24V |
| Input Voltage Limits | DC 19.2 to 28.8V |
| Allowable Voltage Drop | 2 ms or less |
| Power Consumption | 9.6 W or less |
| In-Rush Current | 30 A or less |
| Voltage Endurance | AC 1,000 V, 20 mA for 1 min (between charging and FG terminals) |
| Insulation Resistance | DC 500 V, 10 MΩ or more (between charging and FG terminals) |
| Surrounding Air Temperature | 0 to 50 °C (32 to 122 °F) |
| Storage Temperature | -20 to 60 °C (-4 to 140 °F) |
| Ambient Humidity | 10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.) |
| Storage Humidity | 10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.) |
| Dust | 0.1 mg/m³ (10<sup>-7</sup> oz/ft³) or less (non-conductive levels) |
| Pollution Degree | For use in Pollution Degree 2 environment |
| Atmosphere | Free of corrosive gases |
| Air Pressure (altitude range) | 800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less) |
| Vibration Resistance | IEC/EN61131-2 compliant, 5 to 9 Hz Single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz Fixed acceleration: 9.8 m/s², X, Y, Z directions for 10 cycles (approx. 100 min) |
| Concussion Resistance | IEC/EN61131-2 compliant 147 m/s², X, Y, Z directions for 3 times |
| Noise Immunity | Noise Voltage: 1,000 Vp-p, Pulse Duration: 1 µs, Rise Time: 1 ns (via noise simulator) |
| Electrostatic Discharge Immunity | Contact Discharge Method: 6 kV (IEC/EN61000-4-2 Level 3) |
| Grounding | Functional grounding: Grounding resistance of 100Ω, 2mm² (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals) |
| Structure | IP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure)*3 |
| Cooling Method | Natural air circulation |
| Weight Approx. | 0.4 kg [0.9 lb] or less (display unit only) |
| External Dimensions | W132 x H106 x D42 mm [W5.2 x H4.17 x D1.65 in.] |
| Panel Cut Dimensions | W118.5 x H92.5 mm [W4.67 x H3.64 in.], Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*4 |

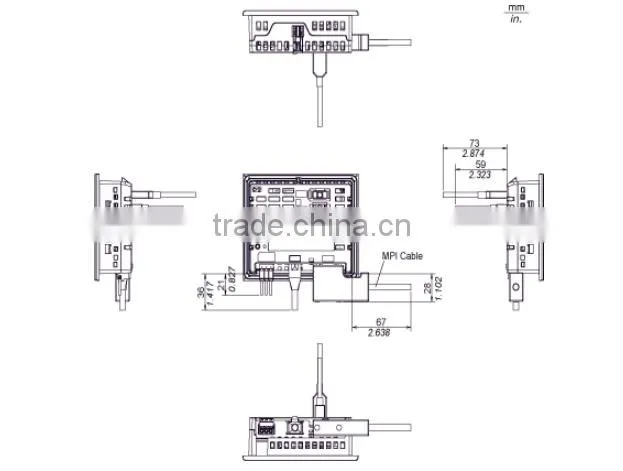

External Dimensions
Panel Cut-out
External Dimensions
