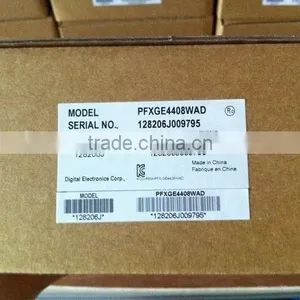

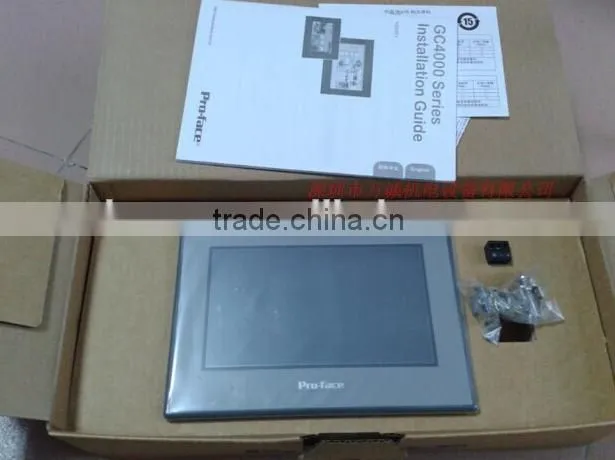

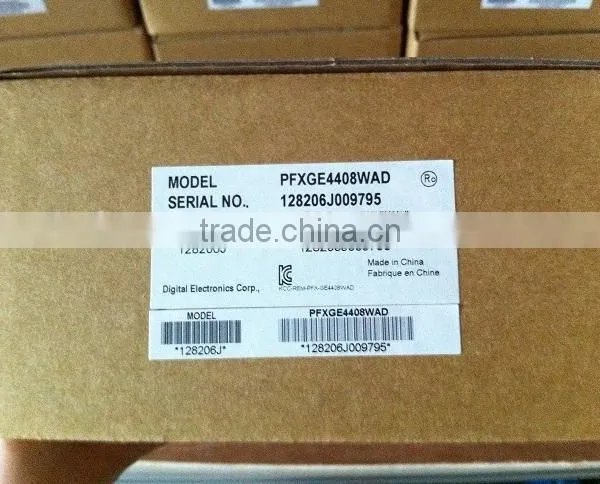

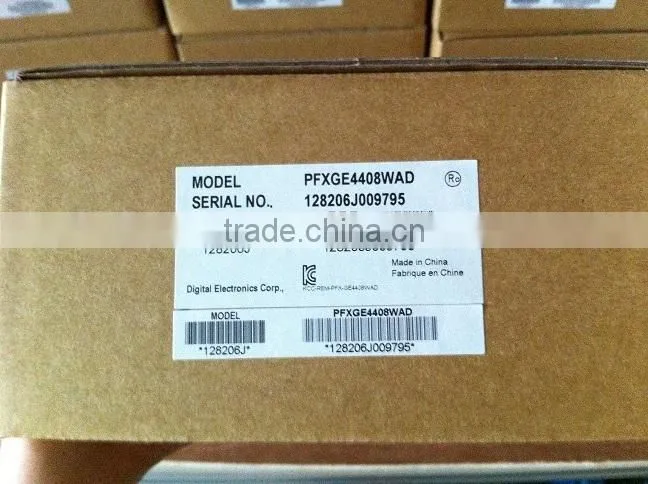

PFXGE4408WAD PROFACE Hmi GC-4408W
US$ 1.00 - 1.00
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
proface
Model Number:
PFXGE4408WAD
Payment & Shipping
Payment Methods:
Port of Shipment:
SHEN ZHEN/ HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PFXGP4501TMD PROFACE Hmi GP-4501TUS$ 1.00 - 1.00MOQ: 1 Piece -
New Original Touch Screen GP4501TMA / PFXGP4501TMAUS$ 1.00 - 1.00MOQ: 1 Piece
-
PFXGP4105W1D PROFACE Hmi GP4105W1DUS$ 1.00 - 1.00MOQ: 1 Piece
-
PFXGP4106G1D PROFACE Hmi GP4106G1DUS$ 1.00 - 1.00MOQ: 1 Piece
-
PFXGP4105G1D PROFACE Hmi GP4105G1DUS$ 1.00 - 1.00MOQ: 1 Piece
Place of Origin
Japan
Brand Name
proface
Model Number
PFXGE4408WAD
Kwoco Automation Co.,ltd have good price on PLC+HMI+INVERTER+SERVO
The Advantages Of Brand: brand:Mitsubishi, Simatic Siemens, Panasonic, Delta, NAIS, Yaskawa, ABB, Omron, Mitsubishi, Proface, Weinview, Hitech,Yaskawa,Fuji;Sick, Keyence,Koyo, Ifm
NEW Original productS!!!
more information contact:
Functional Specification
| Display Type | TFT Color LCD | ||
|---|---|---|---|
| Display Size | 7.0" Wide | ||
| Resolution | 800 x 480 pixels (WVGA) | ||
| Effective Display Area | 154.08 x 85.92 mm [6.066 x 3.382 in.] | ||
| Display Colors | 65,536 Colors | ||
| Backlight | LED | ||
| Brightness Control | 8 levels available via touch panel | ||
| Backlight Service Life | 20,000 hours or more (continuous operation at 25°C [75°F] before backlight brightness decreased to 50%) | ||
| Language Fonts | English | ||
| Character Sizes | Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts | ||
| Font Sizes | Width can be expanded 1, 2, 4, and 8 times. Height can be expanded 1/2, 1, 2, 4, and 8 times. | ||
| Text | 8 x 8 dots | 40 char. x 30 rows | |
| 8 x 16 dots | 40 char. x 15 rows | ||
| 16 x 16 dots | 20 char. x 15 rows | ||
| 32 x 32 dots | 10 char. x 7 rows | ||
| Application Memory | FLASH ROM 8 MB | ||
| Data Backup | - | ||
| Clock Accuracy | Uses the clock of an external device | ||
| Touch Panel Type | Resistive Film (analog) | ||
| Touch Panel Service Life | 1 million switch and 100 thousand slide operations | ||
| Interface | Serial (COM1) | RS-232C Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: None, Odd or Even, Stop Bit:1 or 2 bit, Data Transmission Speed:2,400 bps to115,200 bps D-Sub 9 pin (plug) | |
| Serial (COM2) | RS-422 / RS-485 Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: None, Odd or Even, Stop Bit:1 or 2 bit, Data Transmission Speed:2,400 bps to187,500 bps D-Sub 9 pin (plug) | ||
| USB (TYPE-A) | Conforms to USB2.0 (Type A) x 1, Maximum Transmission Distance: 5m (16.40 ft) | ||
| USB (mini-B) | Used for application download | ||
General Specification
| International Safety Standards | |||
|---|---|---|---|
| Rated Input Voltage | DC 24 V | ||
| Allowable Voltage Drop | 1 ms or less with lowest input voltage, 10 ms or less with rated input voltage | ||
| Power Consumption | 5 W | ||
| In-Rush Current | 50 A or less | ||
| Voltage Endurance | AC600V 20mA for 1 min. | ||
| Insulation Resistance | 10MΩ or higher at DC500V | ||
| Surrounding Air Temperature | 0 to 50 °C [32 to 122 °F] | ||
| Storage Temperature | -20 to 60 °C [-4 to 140 °F] | ||
| Ambient Humidity | 85 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.) | ||
| Storage Humidity | 85 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.) | ||
| Dust | 0.1 mg/m³ (10-7 oz/ft³) or less (non-conductive levels) | ||
| Pollution Degree | For use in Pollution Degree 2 environment | ||
| Atmosphere | Free of corrosive gases | ||
| Air Pressure (altitude range) | 800 to 1,114 hPa (2,000 m above sea level or less) | ||
| Vibration Resistance | IEC/EN60068-2-6, 5 to 150 Hz, 3.5 mm (0.38 in) max., 1gn pm 3 axes | ||
| Concussion Resistance | IEC 60068 - 2 - 27, 1/2 sinusoidal pulse for 11 ms, 15g on 3 axes | ||
| Electrostatic Discharge Immunity | EN/IEC 61131-2 4 kV contact, 8 kV air | ||
| Electromagnetic Compatibility (EMC) | IEC 61000 - 4 - 5, 0.5 kV (Differential Mode on power supply), 1 kV (Common Mode on power supply) | ||
| Grounding | Observe local codes and standards. The ground connection must have a resistance 0.1Ω or less and the ground wire must have a cross section of at least 2 mm2 (AWG 14). | ||
| Structure | Front Panel: IP 65 (IEC60529), Enclosure type 4 indoor use only (Ul50) with screw installation fasteners, Rear Panel: IP 20 (IEC 60529) | ||
| Cooling Method | Natural air circulation | ||
| External Dimensions | 207.8 mm [8.18 in] x 153.2 mm [6.03 in] x 59.8 mm [2.36 in] | ||
External Dimensions
Panel Cut-out
External Dimensions
Company Information
Kwoco Automation Co.,ltd have good price on PLC+HMI+Inverter+SERVO product
PLC: Mitsubishi, Simatic Siemens, Panasonic, Delta, Omron, NAIS, and Schneider types.
Inverter: Mitsubishi, Siemens, Yaskawa, Delta, ABB, Panasonic, Fuji, Omron,
HMI: Mitsubishi, Proface, Omron,Siemens, Panasonic, Delta, Weinview, Hitech, and Beijer types
AC Servo: Mitsubishi, Yaskawa, Panasonic, Delta, Fuji ,and Omron types.
Sensor: Sick, Keyence,Omron,Koyo, Ifm
