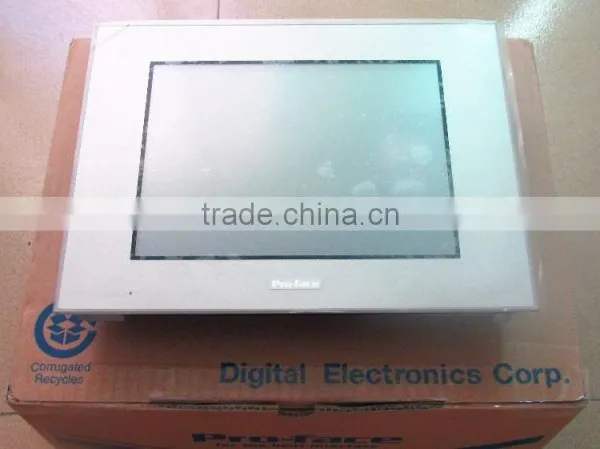

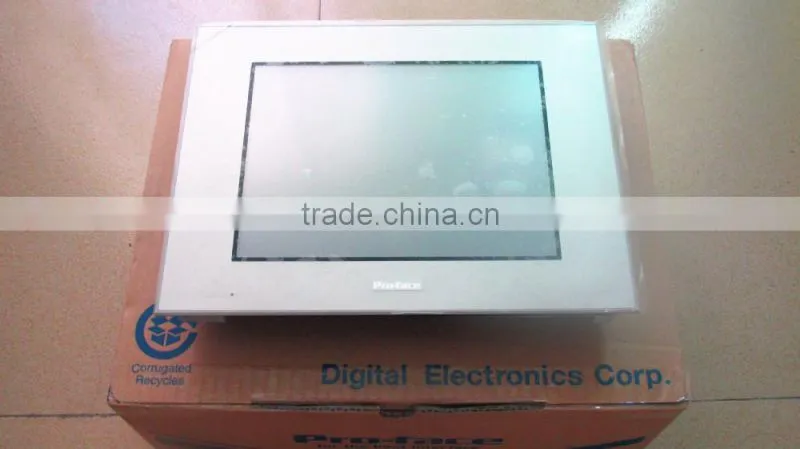

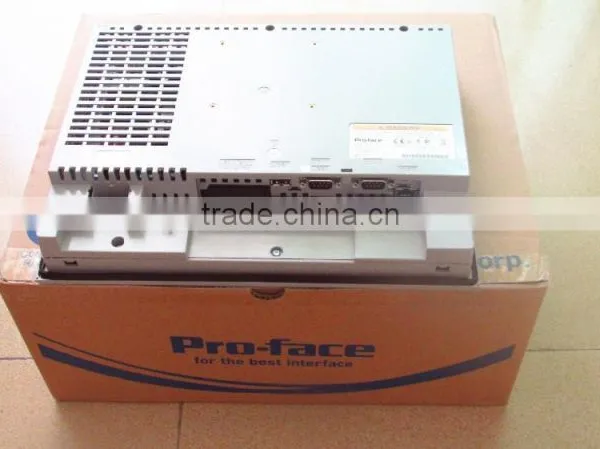

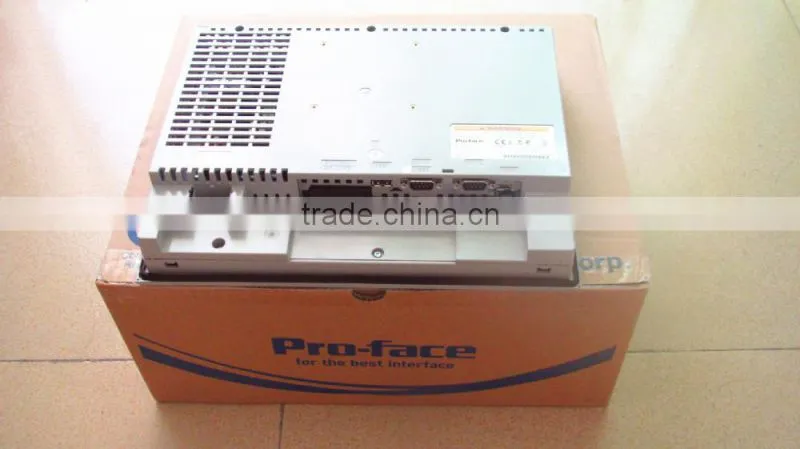

Help CenterPROFACE 7.5 Inch HMI PFXGP4401TAD
Related Products
-
PROFACE 10.4 Inch HMI PFXGP4501TADUS$ 1 - 2,000MOQ: 1 Piece -
PROFACE 5.7 Inch HMI AST3301W-B1-D24US$ 1 - 2,000MOQ: 1 Piece
-
PROFACE 10.4 Inch HMI GP2501-TC41-24VUS$ 1 - 2,000MOQ: 1 Piece
-
PFXGE4501WAD PROFACE 10.1 Inch HMIUS$ 1 - 2,000MOQ: 1 Piece
-
PROFACE 3.5 Inch HMI PFXGM4201TAD (GP-4201TM)US$ 1 - 2,000MOQ: 1 Piece
PFXGP4401TAD ( GP4401T)
Display Type |
TFT Color LCD |
|
Display Size |
7.5" |
|
Resolution |
640 x 480 pixels (VGA) |
|
Effective Display Area |
W211.2 x H158.4 mm [W8.31 x H6.24 in.] |
|
Display Colors |
65,536 Colors (No blink)/16,384 Colors (Blink) |
|
Backlight |
White LED (User nonreplaceable parts. When replacement is required, contact your local distributor.) |
|
Brightness Control |
8 Levels (Adjusted with the touch panel or the software) |
|
Backlight Service Life |
50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%) |
|
Language Fonts |
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.) |
|
Character Sizes |
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts |
|
Font Sizes |
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.*1 |
|
Control Memory |
Variable Area |
None |
Program Area |
FLASH EPROM 512 KB (Equivalent to 15,000 steps) |
|
Application Memory |
FLASH EPROM 32 MB (including a logic program area) |
|
Data Backup |
SRAM 320 KB (Replaceable Lithium battery for backup memory) |
|
Clock Accuracy |
±65 sec/month (deviation at room temperature and power is OFF) |
|
Touch Panel Type |
Resistive Film (analog) |
|
Touch Panel Resolution |
1,024 x 1,024 |
|
Touch Panel Service Life |
1,000,000 times or more |
|
Interface |
Serial (COM1) |
RS-232C, Connector: D-Sub9 (plug) |
Serial (COM2) |
RS-422/485, Connector: D-Sub9 (plug) |
|
Ethernet (LAN) |
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1 |
|
USB (TYPE-A) |
Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, |
|
USB (mini-B) |
Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4ft.] or less |
|
SD Card |
SD Card Slot x 1 |
|
