PROFACE 10.4 Inch HMI GP2501-TC41-24V

Name: PROFACE 10.4 Inch HMI GP2501-TC41-24V
Brand: PROFACE
SKU: 116748799
Availability: InStock

US$ 1 - 2,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Japan

Brand Name:

PROFACE

Model Number:

GP2501-TC41-24V

Shenzhen Kwoco Automation Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Japan

Brand Name PROFACE

Model Number GP2501-TC41-24V

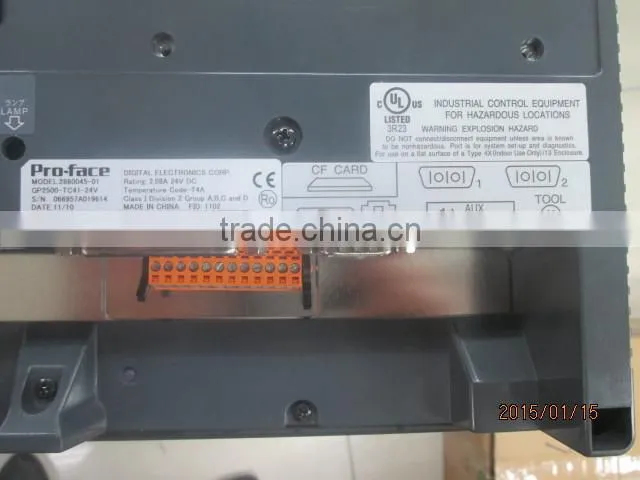

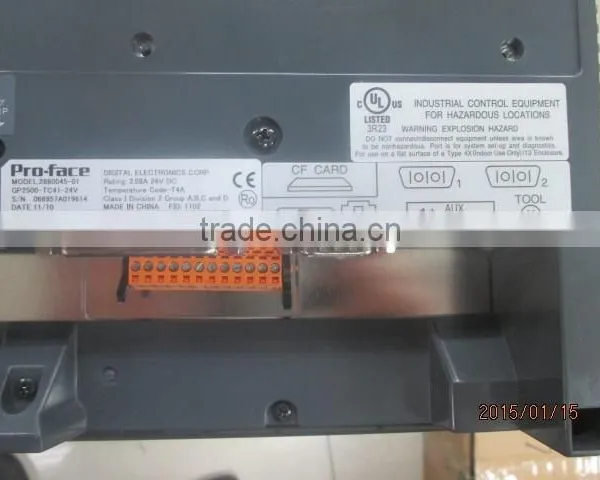

Detailed Images

Model		GP2501-TC41-24V
Electrical	Rated Voltage	DC24V
	Rated Voltage Range	DC19.2 - 28.8V
	Power Consumption	50W or less
	Allowable Voltage Drop	10ms or less
	Voltage Endurance	AC1000V, 20mA for up to 1 minute (between charging and FG terminals)
	Insulation Resistance	20MΩ or higher at DC500V (between charging and FG terminals)
Environmental	Ambient Operating Temperature*1	0 - 50℃
	Storage Temperature	-20 - 60℃
	Ambient Humidity	10 - 90% RH (non-condensing wetbulb temperature 39℃ or less)
	Storage Humidity	10 - 90% RH (non-condensing wetbulb temperature 39℃ or less)
	Vibration Resistance	Compatible with IEC61131-2 When vibration is NOT continuous: 10Hz to 57Hz 0.075mm, 57Hz to 150Hz 9.8m/s2 When vibration is continuous: 10Hz to 57Hz 0.035mm, 57Hz to 150Hz 4.9m/s2 X, Y, Z directions for 10 times (80min.)
	Noise Immunity	Noise Immunity: 1000Vp-p Pulse Duration: 1µs Rise Time: 1ns (via noise simulator)
	Electrostatic Discharge Immunity	6kV (complies with IEC 61000-4-2 Level 3)
	Corrosive Gases	Free of corrosive gasses
Structural	Grounding	100Ω or less, or your country's applicable standard
	Ratings	Equivalent to IP65f (JEM1030), NEMA#250 TYPE 4X/12*2
	External Dimensions (mm)	317W × 243H × 58D
	Weight	1.2kg (2.6lb) or less
	Cooling Method	Natural air circulation
