Help CenterPROFACE 12.1 Inch HMI AGP3600-T1-D24
Related Products
-
PROFACE 12.1 Inch HMI GP2601-TC11US$ 1 - 2,000MOQ: 1 Piece -
New Original PROFACE PFXGP4301TADW/ GP4301TWUS$ 1 - 2,000MOQ: 1 Piece
-
New Original PROFACE 7 Inch Hmi PFXGP4401WADW/ GP4401WWUS$ 1 - 2,000MOQ: 1 Piece
-
PROFACE 12.1 Inch HMI PFXGP4601TADUS$ 1 - 2,000MOQ: 1 Piece
-
PROFACE 7.5 Inch HMI PFXGP4401TADUS$ 1 - 2,000MOQ: 1 Piece
Product Specification
Display Type |
TFT Color LCD
|
Display Size |
12.1"
|
Resolution |
800 x 600 pixels (SVGA)
|
Dot pitch |
W0.3075 x H0.3075 mm [W0.01 x H0.01 in.]
|
Effective Display Area |
W248 x H186.5 mm [W9.76 x H7.34 in.]
|
Display Colors |
65,536 Colors (No blink)/16,384 Colors (Blink)
|
Brightness Control |
8 Levels (Adjusted with the touch panel)
|
Contrast Control |
Not applicable
|
Backlight Service Life |
50,000 hrs. or more (continuous operation at 25℃ before backlight brightness decreases to 50% or backlight starts to blink)
|
Program Area |
FLASH EPROM 132 KB
|
Variable Area |
SRAM 64 KB (uses lithium battery)*4
|
Application Memory |
FLASH EPROM 16 MB*5
|
Data Backup |
SRAM 320KB (uses lithium battery)*6
|
Clock Accuracy |
±65 sec./month (deviation at room temperature and power is OFF)*7
|
Touch Panel Type |
Resistive Film (analog)
|
Touch Panel Resolution |
1,024 X 1,024
|
Touch Panel Service Life |
1,000,000 times or more
|
Serial (COM1) |
RS-232C/422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
|
Serial (COM2) |
RS-422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI), Connector: D-Sub9 (socket)
|
Ethernet (LAN) |
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, Connector: Modular jack (RJ-45) x 1
|
Expansion Unit 1 |
Communication Expansion Unit x 1
|
Expansion Unit 2 |
VM/DVI Input Expansion Unit x 1
|
USB (TYPE-A) |
Conforms to USB1.1 (TYPE-A) x 2, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m or less
|
Expansion Memory |
Function Expansion Memory x 1 (Inside interface cover)
|
CF Card |
Compact Flash CF Card Slot (TYPE-II) X 1
|
Sound Output |
Speaker Output, 70 mW (Rated Load: 8 Ω, Frequency: 1 kHz), Connector: 2-piece terminal block (AUX) x 1
|
AUX Input/Output |
Alarm Output, RUN Output, Buzzer Output, Rated Voltage: DC24V, Rated Current: 50mA, Remote Reset Input, Input Voltage: DC24V, Connector: 2-piece terminal block (AUX) X 1
|

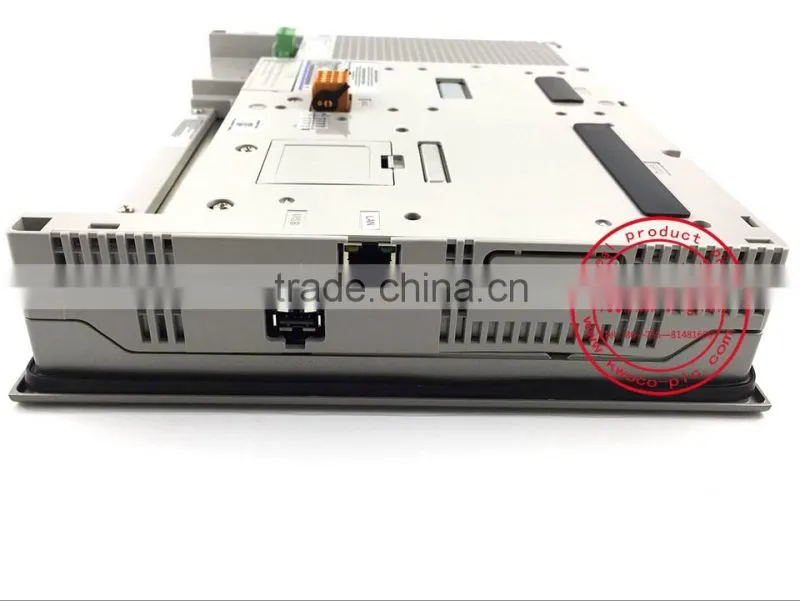

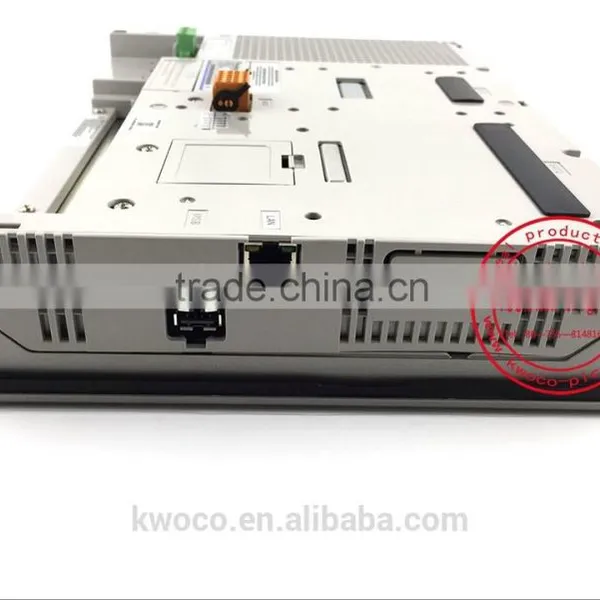

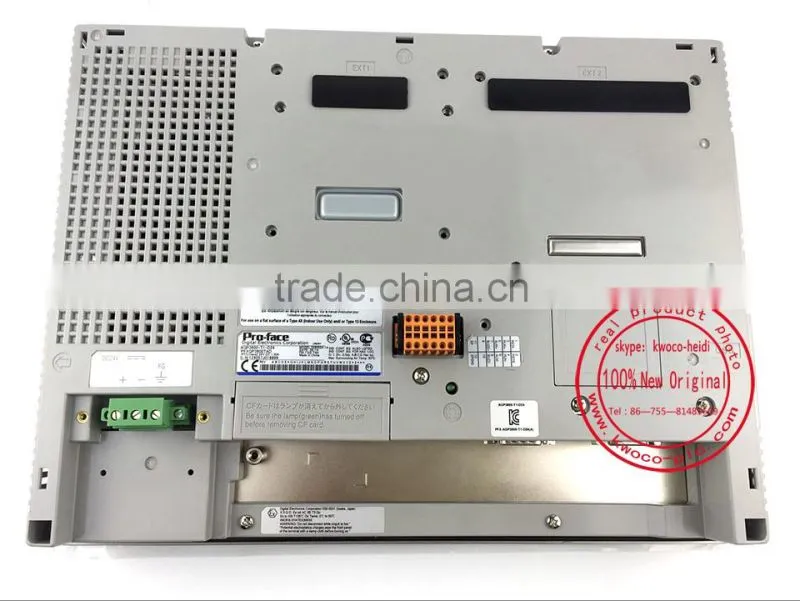

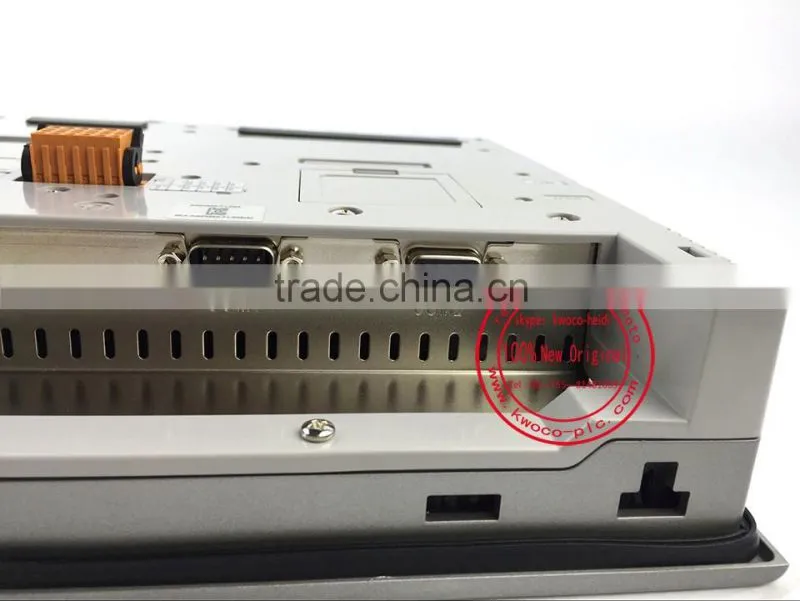

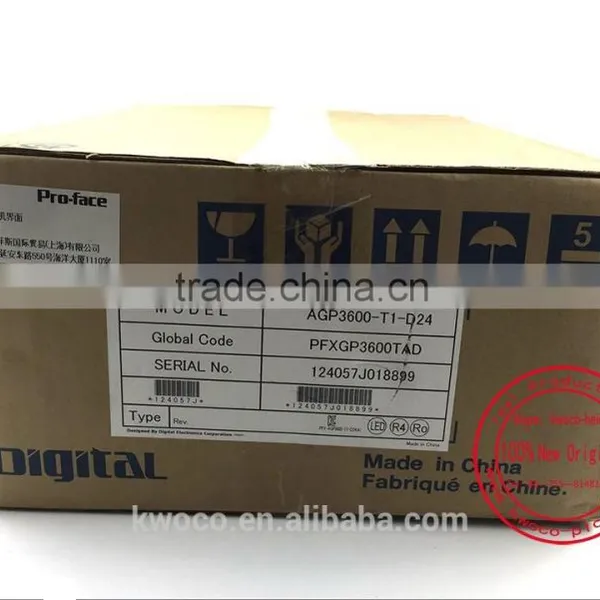

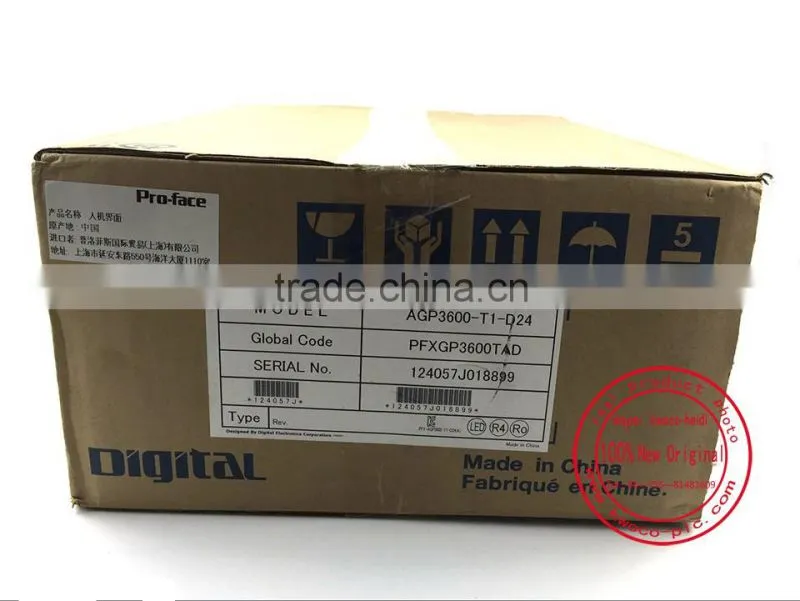

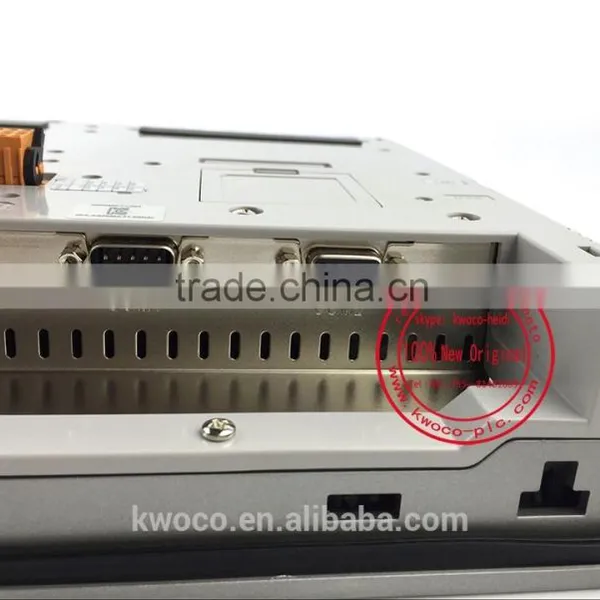

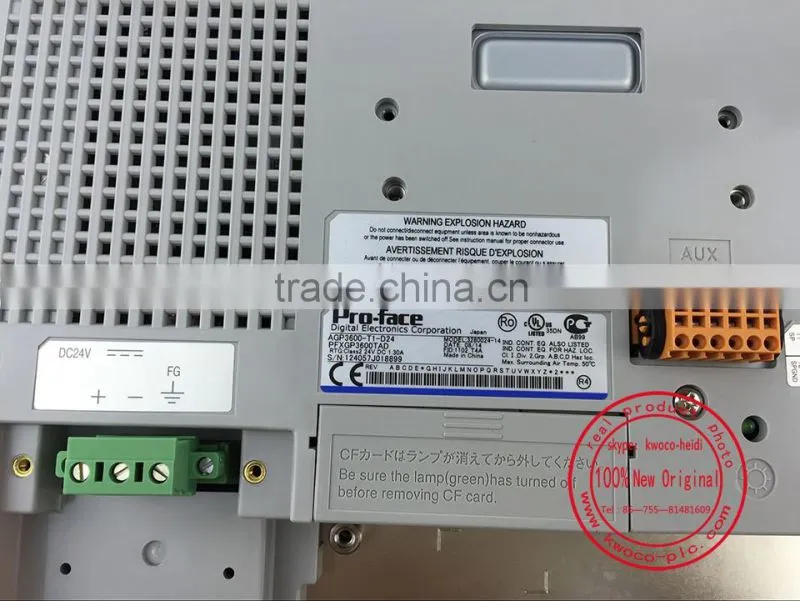

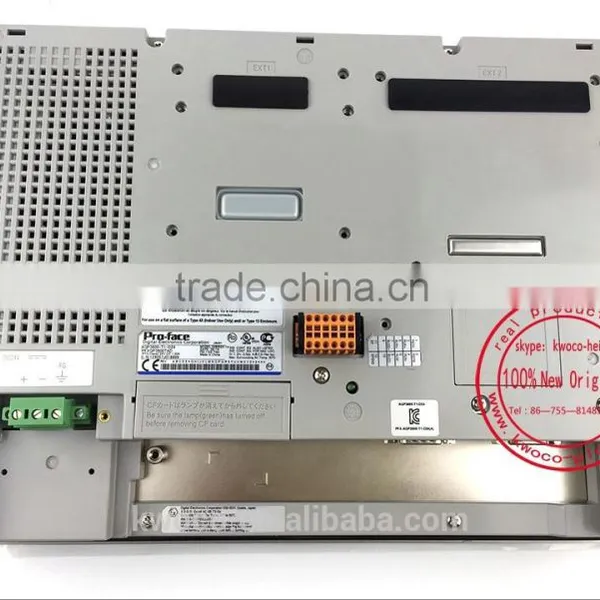

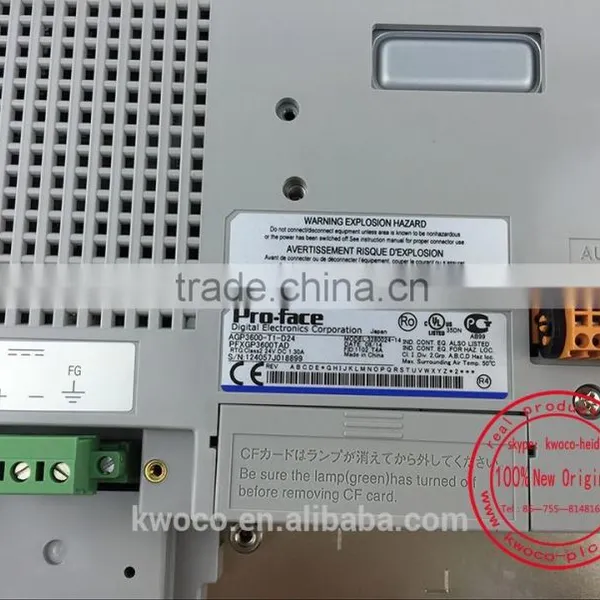

Product Photo Gallery
