Original Contactor A30-30-10 220-230V 50HZ / 230-240V 60HZ

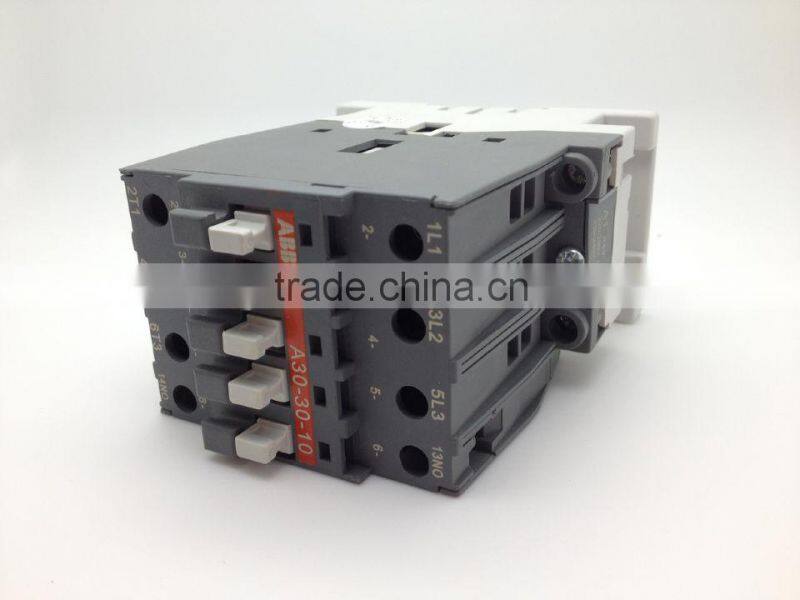

Original Contactor A30-30-10 220-230V 50HZ / 230-240V 60HZ thumbnail-1

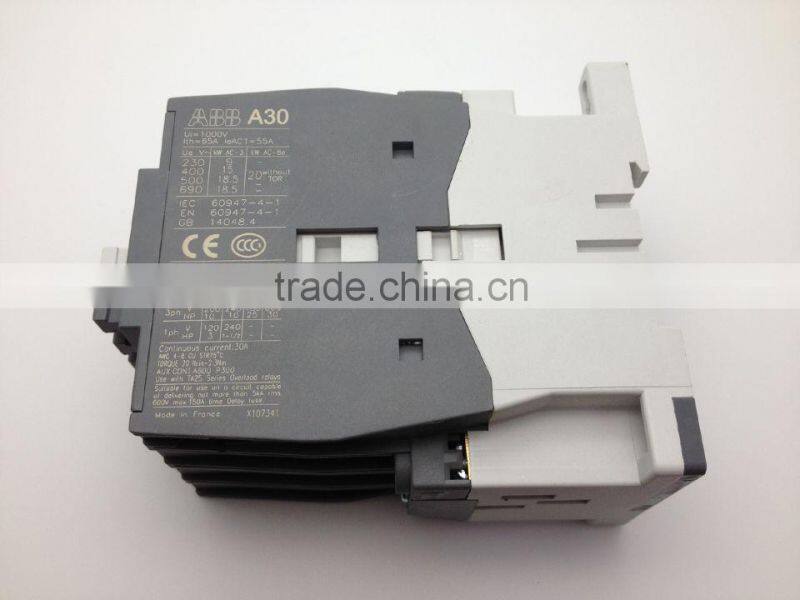

Original Contactor A30-30-10 220-230V 50HZ / 230-240V 60HZ thumbnail-2

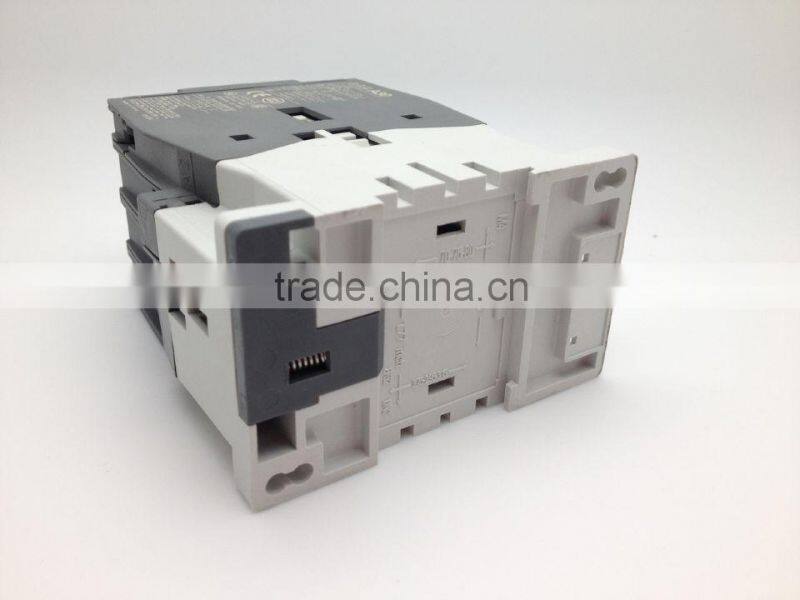

Original Contactor A30-30-10 220-230V 50HZ / 230-240V 60HZ thumbnail-3

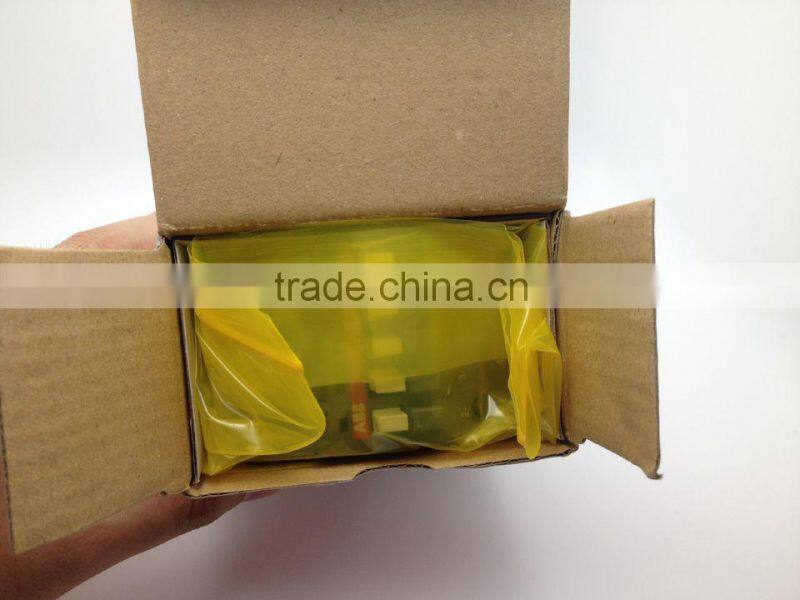

Original Contactor A30-30-10 220-230V 50HZ / 230-240V 60HZ thumbnail-4

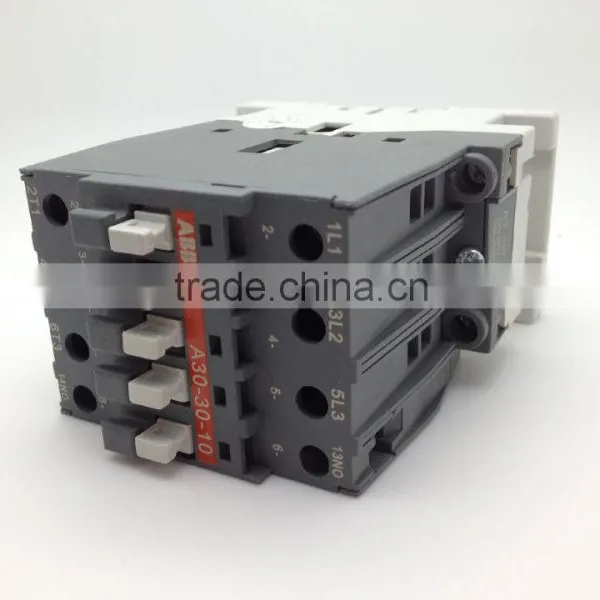

Original Contactor A30-30-10 220-230V 50HZ / 230-240V 60HZ photo-1

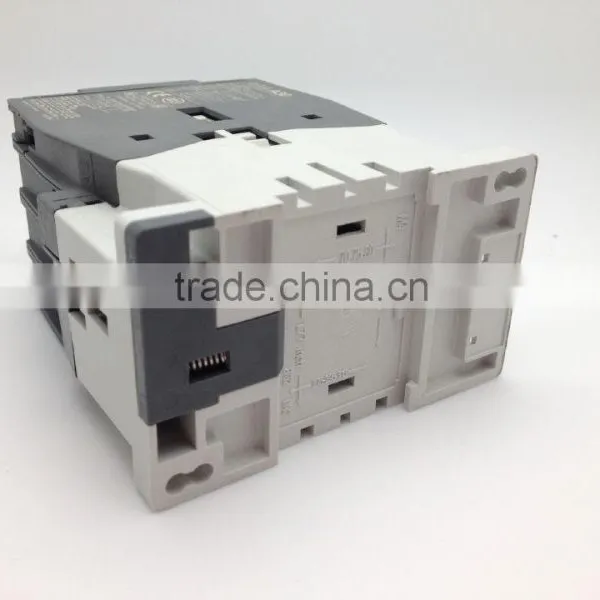

Original Contactor A30-30-10 220-230V 50HZ / 230-240V 60HZ photo-2

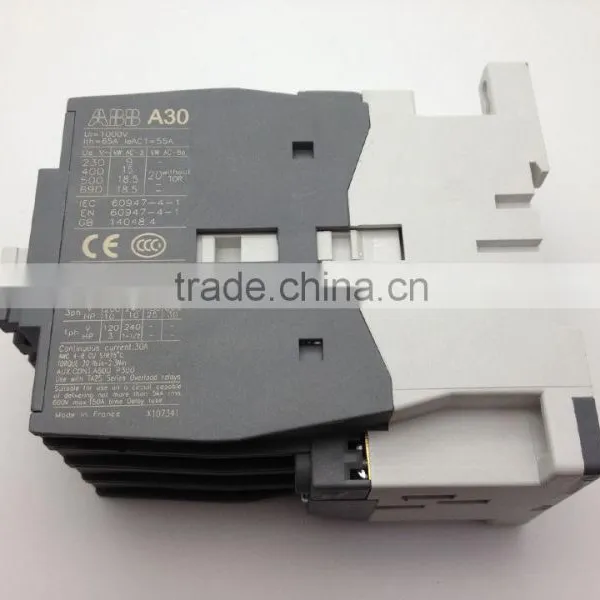

Original Contactor A30-30-10 220-230V 50HZ / 230-240V 60HZ photo-3

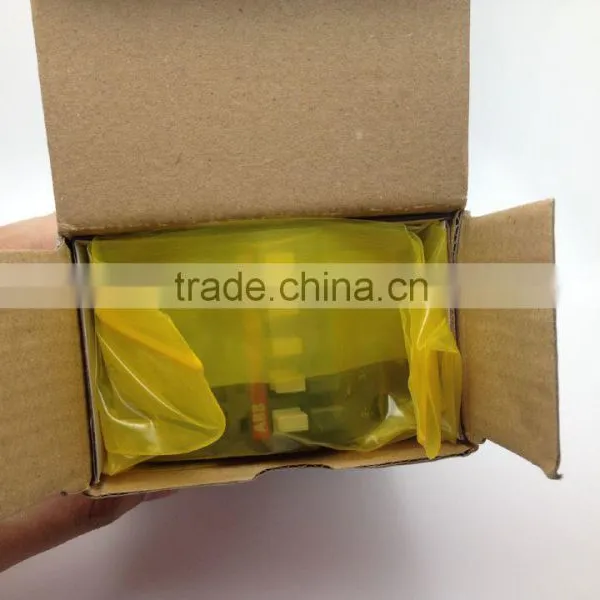

Original Contactor A30-30-10 220-230V 50HZ / 230-240V 60HZ photo-4
US$ 1.00 - 1.00 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
original
Model Number:
A30-30-10
Contact Supplier Request Quote Chat Now
Shenzhen Kwoco Automation Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Japan
Brand Name original
Model Number A30-30-10

Kwoco Automation Co.,ltd   have good price on PLC+HMI+INVERTER+SERVO



The Advantages Of Brand: brand:Mitsubishi, Simatic Siemens, Panasonic, Delta, NAIS, Yaskawa, ABB, Omron, Mitsubishi, Proface, Weinview, Hitech,Yaskawa,Fuji;Sick, Keyence,Koyo, Ifm



                                                       NEW  Original productS!!!


                                                              more information contact:
                             Original Contactor A30-30-10 220-230V 50HZ / 230-240V 60HZ





Features  (A30-30-10)

Extended Product Type:    A30-30-10 220-230V 50Hz / 230-240V 60Hz

Product ID:  1SBL281001R8010

 Product Net Width:  54 mm

Product Net Depth:  108.3 mm

 Product Net Height:   90 mm

 Product Net Weight:   0.710 kg



 Technical



Number of Main Contacts NO:
3



Number of Main Contacts NC:
0



Number of Auxiliary Contacts NO:
1



Number of Auxiliary Contacts NC:
0



Standards:
Devices complying with international standards IEC 947-1 / 947-4-1, and European standards EN 60 947-1 / 60 947-4-1. Electromagnetic compatibility (EMC) acc. to amendment A11 to IEC 947-1; EN 60 947-1 and amendment 2 to IEC 947-4-1



Rated Operational Voltage:
Main Circuit 690 V



Rated Frequency (f):
Supply Circuit 50 Hz
Supply Circuit 60 Hz



Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-4-1, Open Contactors q = 40 °C 65 A
acc. to IEC 60947-5-1, q = 40 °C 16 A



Rated Operational Current AC-1 (Ie):
(690 V) 40 °C 55 A
(690 V) 55 °C 55 A
(690 V) 70 °C 39 A



Rated Operational Current AC-3 (Ie):
(220 / 230 / 240 V) 55 °C 33 A
(380 / 400 V) 55 °C 32 A
(415 V) 55 °C 32 A
(440 V) 55 °C 32 A
(500 V) 55 °C 28 A
(690 V) 55 °C 21 A



Rated Operational Power AC-3 (Pe):
(220 / 230 / 240 V) 9 kW
(380 / 400 V) 15 kW
(415 V) 15 kW
(440 V) 18.5 kW
(500 V) 18.5 kW
(690 V) 18.5 kW



Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1:
8 x Ie AC-3



Rated Making Capacity AC-3 acc. to IEC 60947-4-1:
10 x Ie AC-3



Rated Operational Current AC-15 (Ie):
(220 / 240 V) 4 A
(24 / 127 V) 6 A
(380 / 440 V) 3 A
(500 V) 2 A
(690 V) 2 A



Short-Circuit Protective Devices:
Auxiliary Circuit - gG Type Fuses 10 A
gG Type Fuses 63 A



Rated Short-time Withstand Current (Icw):
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 400 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 65 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 600 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 A
for 0.1 s 140 A
for 1 s 100 A



Maximum Breaking Capacity:
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 820 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 340 A



Maximum Electrical Switching Frequency:
AC-1 600 cycles per hour
AC-2 / AC-4 300 cycles per hour
AC-3 1200 cycles per hour



Rated Operational Current DC-13 (Ie):
(125 V) 1.1 / 138 A
(24 V) 6 / 144 A
(250 V) 0.55 / 138 A
(48 V) 2.8 / 134 A
(72 V) 2 / 144 A



Rated Insulation Voltage (Ui):
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
acc. to UL/CSA 600 V



Rated Impulse Withstand Voltage (Uimp):
8 kV



Mechanical Durability:
10 million



Maximum Mechanical Switching Frequency:
3600 cycles per hour



Coil Operating Limits:
(acc. to IEC 60947-4-1) 0.85 ... 1.1 x Uc (at θ ≤ 55 °C) °C



Rated Control Circuit Voltage (Uc):
50 Hz 220 … 230 V
60 Hz 230 … 240 V



Operate Time:
Between Coil Energization and NO Contact Closing 8 ... 21 ms
Between Coil De-energization and NO Contact Opening 4 ... 11 ms



Connecting Capacity-Main Circuit:
Flexible with Cable End 2.5 ... 10 mm²
Rigid Cable 2.5 ... 16 mm²



Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20



Connecting terminals (delivered in open position) Main poles:
M 5 (+,-) pozidriv 2 screw with 2x (5.6x6.5 mm) connector



Terminal Type:
Screw Terminals


Original Contactor A30-30-10 220-230V 50HZ / 230-240V 60HZOriginal Contactor A30-30-10 220-230V 50HZ / 230-240V 60HZOriginal Contactor A30-30-10 220-230V 50HZ / 230-240V 60HZOriginal Contactor A30-30-10 220-230V 50HZ / 230-240V 60HZ
