A16-30-10 Contactor 110-115V 50HZ / 115-120V 60HZ

A16-30-10 Contactor 110-115V 50HZ / 115-120V 60HZ thumbnail-1
A16-30-10 Contactor 110-115V 50HZ / 115-120V 60HZ thumbnail-2
A16-30-10 Contactor 110-115V 50HZ / 115-120V 60HZ thumbnail-3
A16-30-10 Contactor 110-115V 50HZ / 115-120V 60HZ thumbnail-4
A16-30-10 Contactor 110-115V 50HZ / 115-120V 60HZ thumbnail-5
A16-30-10 Contactor 110-115V 50HZ / 115-120V 60HZ photo-1
A16-30-10 Contactor 110-115V 50HZ / 115-120V 60HZ photo-2
A16-30-10 Contactor 110-115V 50HZ / 115-120V 60HZ photo-3
A16-30-10 Contactor 110-115V 50HZ / 115-120V 60HZ photo-4

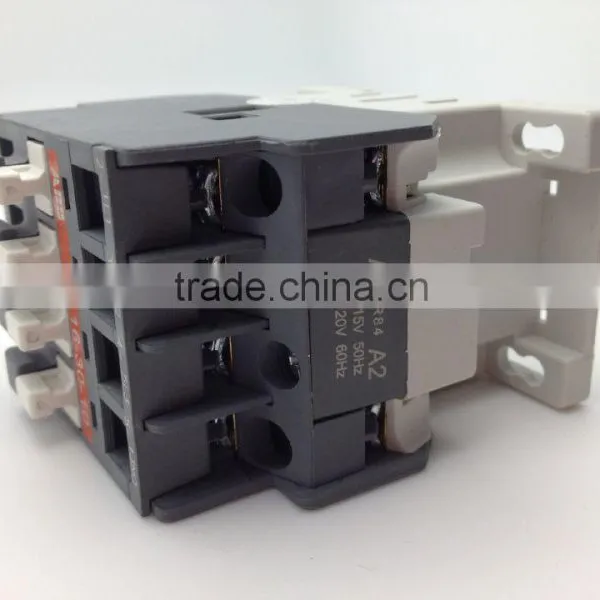

A16-30-10 Contactor 110-115V 50HZ / 115-120V 60HZ photo-5
US$ 1.00 - 1.00 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
original
Model Number:
A16-30-10
Contact Supplier Request Quote Chat Now
Shenzhen Kwoco Automation Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Japan
Brand Name original
Model Number A16-30-10

Kwoco Automation Co.,ltd   have good price on PLC+HMI+INVERTER+SERVO



The Advantages Of Brand: brand:Mitsubishi, Simatic Siemens, Panasonic, Delta, NAIS, Yaskawa, ABB, Omron, Mitsubishi, Proface, Weinview, Hitech,Yaskawa,Fuji;Sick, Keyence,Koyo, Ifm



                                                       NEW  Original productS!!!


                                                              more information contact:

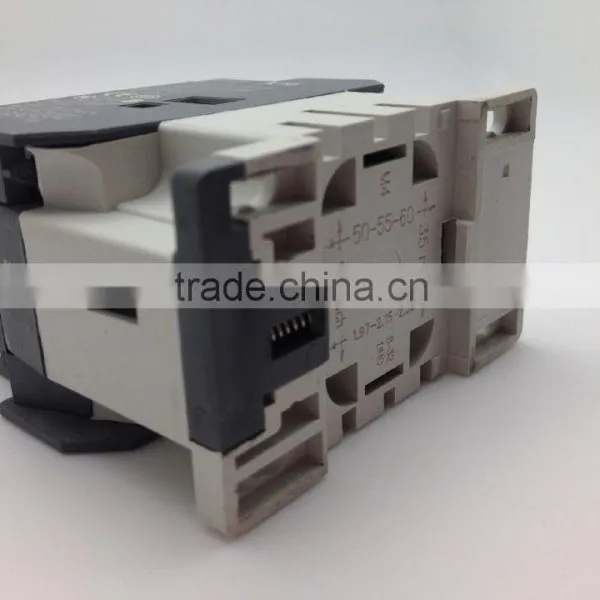

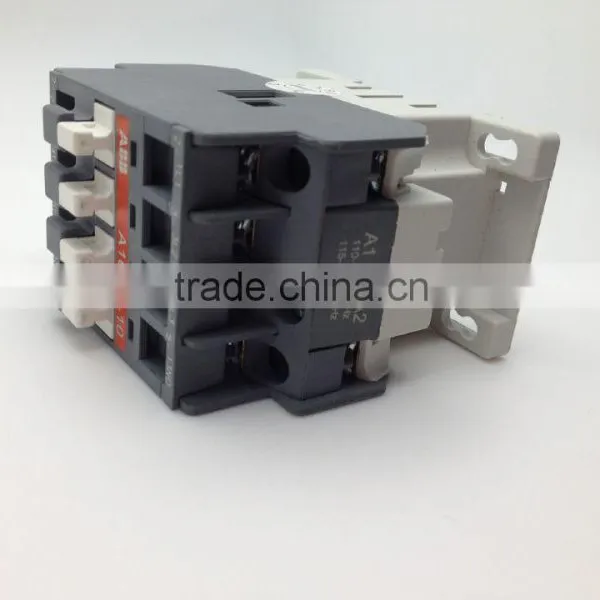

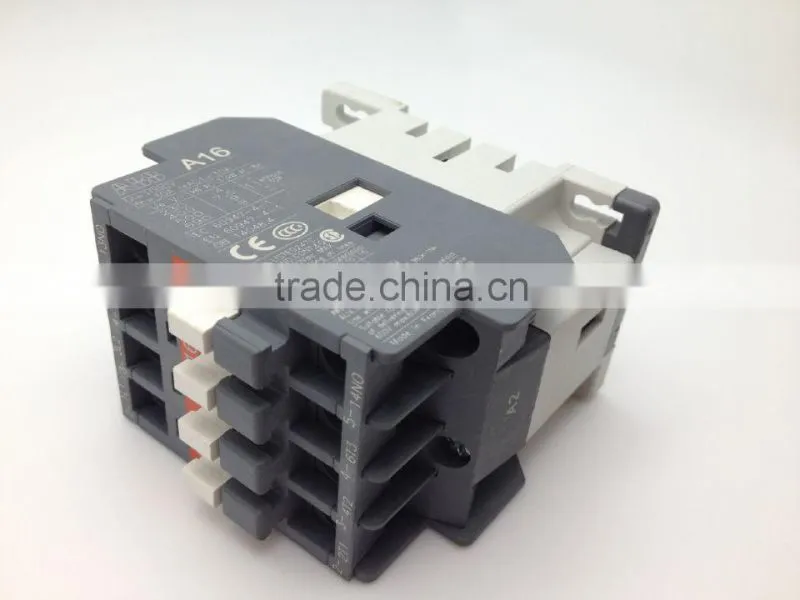

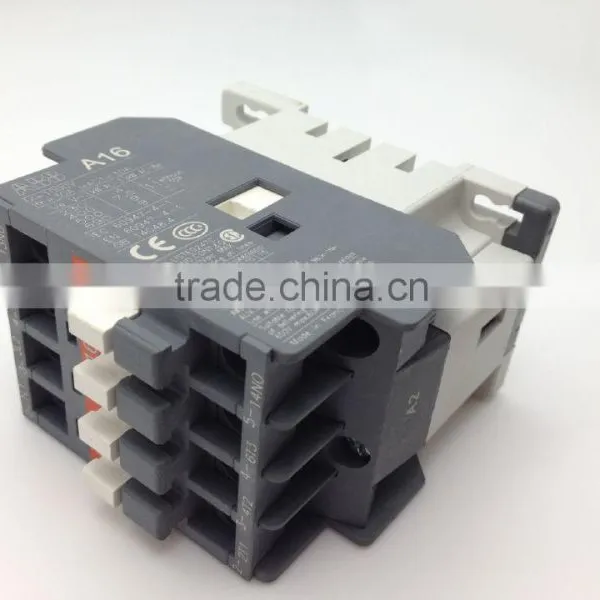

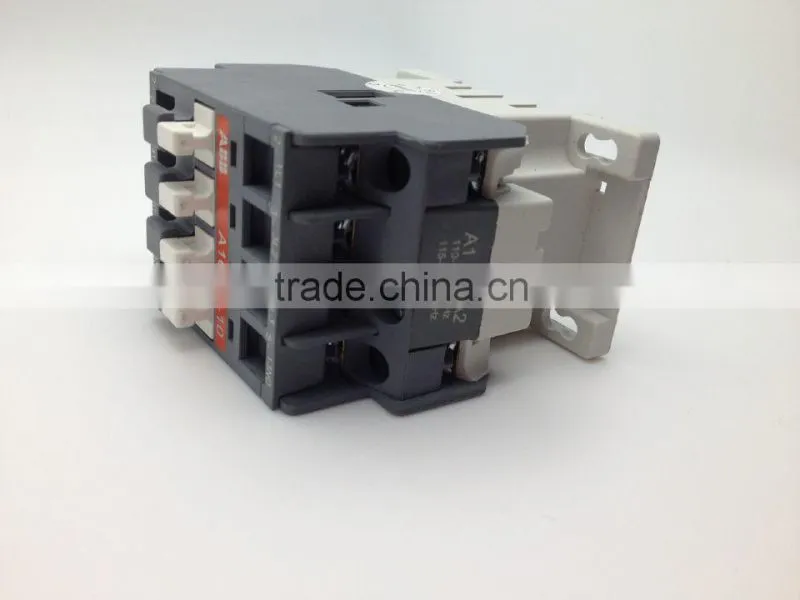

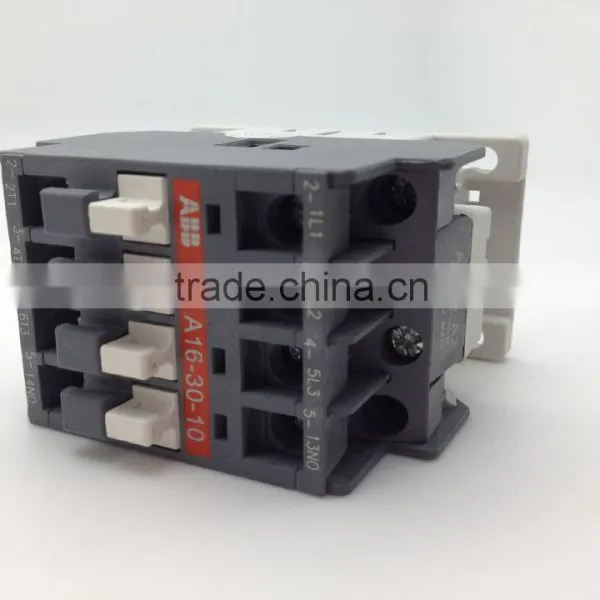

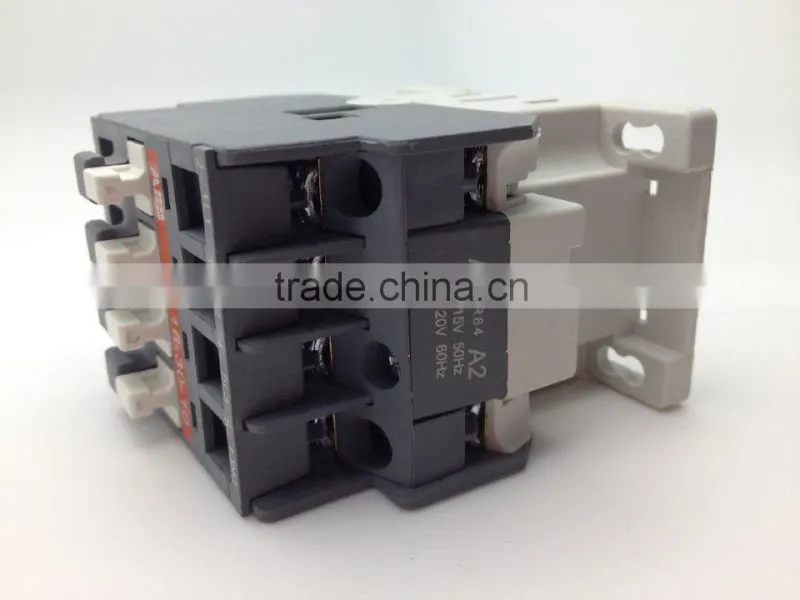

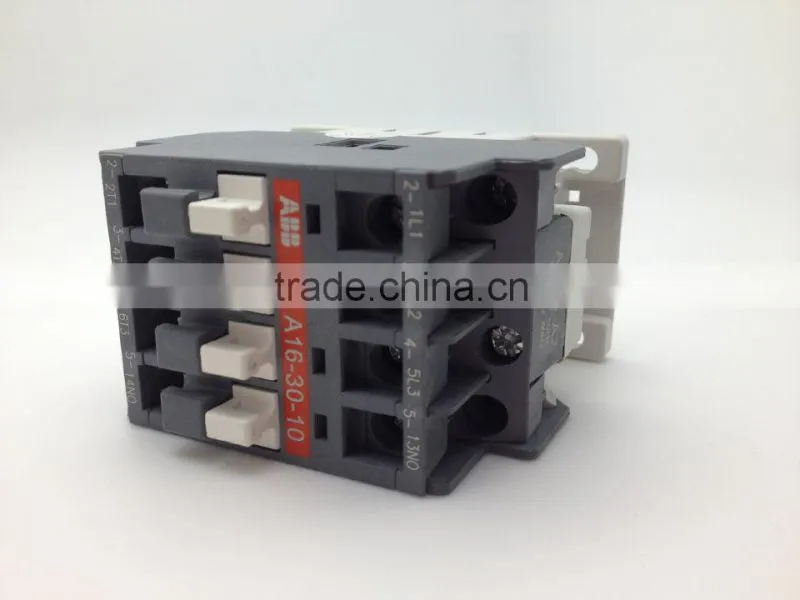

                             A16-30-10 Contactor 110-115V 50HZ / 115-120V 60HZ





Features  (A16-30-10)

Extended Product Type:   A12-30-10 110V 50Hz / 110-120V 60Hz

Product ID:  1SBL161001R8410

 Product Net Width:  44 mm

Product Net Depth:   74 mm

 Product Net Height:   74 mm

 Product Net Weight:   0.340 kg



 Technical

 Number of Main Contacts NO:
3
Number of Main Contacts NC:
0
Number of Auxiliary Contacts NO:
1
Number of Auxiliary Contacts NC:
0
Standards:
Devices complying with international standards IEC 947-1 / 947-4-1, and European standards EN 60 947-1 / 60 947-4-1. Electromagnetic compatibility (EMC) acc. to amendment A11 to IEC 947-1; EN 60 947-1 and amendment 2 to IEC 947-4-1
Rated Operational Voltage:
Main Circuit 690 V
Rated Frequency (f):
Supply Circuit 50 Hz
Supply Circuit 60 Hz
Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-4-1, Open Contactors q = 40 °C 28 A
acc. to IEC 60947-5-1, q = 40 °C 16 A
Rated Operational Current AC-1 (Ie):
(690 V) 40 °C 27 A
(690 V) 55 °C 25 A
(690 V) 70 °C 20 A
Rated Operational Current AC-3 (Ie):
(220 / 230 / 240 V) 55 °C 12 A
(380 / 400 V) 55 °C 12 A
(415 V) 55 °C 12 A
(440 V) 55 °C 12 A
(500 V) 55 °C 12 A
(690 V) 55 °C 9 A
Rated Operational Power AC-3 (Pe):
(220 / 230 / 240 V) 3 kW
(380 / 400 V) 5.5 kW
(415 V) 5.5 kW
(440 V) 5.5 kW
(500 V) 7.5 kW
(690 V) 7.5 kW
Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1:
8 x Ie AC-3
Rated Making Capacity AC-3 acc. to IEC 60947-4-1:
10 x Ie AC-3
Rated Operational Current AC-15 (Ie):
(220 / 240 V) 4 A
(24 / 127 V) 6 A
(380 / 440 V) 3 A
(500 V) 2 A
(690 V) 2 A
Short-Circuit Protective Devices:
Auxiliary Circuit - gG Type Fuses 10 A
gG Type Fuses 32 A
Rated Short-time Withstand Current (Icw):
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 120 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 28 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 55 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 280 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 70 A
for 0.1 s 140 A
for 1 s 100 A
Maximum Breaking Capacity:
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 90 A
Maximum Electrical Switching Frequency:
AC-1 600 cycles per hour
AC-2 / AC-4 300 cycles per hour
AC-3 1200 cycles per hour
Rated Operational Current DC-13 (Ie):
(125 V) 1.1 / 138 A
(24 V) 6 / 144 A
(250 V) 0.55 / 138 A
(48 V) 2.8 / 134 A
(72 V) 2 / 144 A
Rated Insulation Voltage (Ui):
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp):
8 kV
Maximum Mechanical Switching Frequency:
3600 cycles per hour
Coil Operating Limits:
(acc. to IEC 60947-4-1) 0.85 ... 1.1 x Uc (at θ ≤ 55 °C) °C
Rated Control Circuit Voltage (Uc):
50 Hz 110 V
60 Hz 110 … 120 V
Coil Consumption:
Average Holding Value 50 / 60 Hz 8 V·A
Average Holding Value 50 / 60 Hz 2 W
Average Pull-in Value 50 Hz 74 V·A
Average Pull-in Value 60 Hz 70 V·A
Operate Time:
Between Coil Energization and NO Contact Closing 10 ... 26 ms
Between Coil De-energization and NO Contact Opening 4 ... 11 ms
Connecting Capacity-Main Circuit:
Flexible with Cable End 0.75 ... 2.5 mm²
Rigid Cable 1 ... 4 mm²
Connecting Capacity-Auxiliary Circuit:
Flexible with Cable End 0.75 ... 2.5 mm²
Rigid Cable 1 ... 4 mm²
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
Connecting terminals (delivered in open position) Main poles:
M 3.5 (+,-) pozidriv 2 screws with cable clamp
Terminal Type:
Screw Terminals





 Environmental

Ambient Air Temperature:
Close to Contactor Fitted with Thermal O/L Relay -25 ... +55 °C
Close to Contactor for Storage -60 ... +80 °C
Close to Contactor without Thermal O/L Relay (0.85 - 1.1 Uc) -40 ... +55 °C
Close to Contactor without Thermal O/L Relay (Uc) -40 ... +70 °C
Climatic Withstand:
acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II
Maximum Operating Altitude Permissible:
3000 m
Resistance to Shock acc. to IEC 60068-2-27:
Shock Direction: A 20 g
Closed, Shock Direction: B1 10 g
Open, Shock Direction: B1 5 g
Shock Direction: B2 15 g
Shock Direction: C1 20 g
Shock Direction: C2 20 g
RoHS Status:
Following EU Directive 2002/95/EC August 18, 2005 and amendment



A16-30-10 Contactor 110-115V 50HZ / 115-120V 60HZA16-30-10 Contactor 110-115V 50HZ / 115-120V 60HZA16-30-10 Contactor 110-115V 50HZ / 115-120V 60HZA16-30-10 Contactor 110-115V 50HZ / 115-120V 60HZ
