Solar Garden Pump for Water Feature (SPB20-501210D)

Name: Solar Garden Pump for Water Feature (SPB20-501210D)
Brand: Solarever
SKU: 116739895
Availability: InStock

US$ 1 - 100 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Solarever

Model Number:

SPB20-501210D

Hangzhou Gene Solar Industries Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Solarever

Model Number SPB20-501210D

Specification Normal

Application Home

Output Voltage (V) 18v

Load Power (W) 4w -18w

Solar Power (W) 20w

Specifications

1.Ideal for garden water feature and pond fountain use.
2.Pump protected against dry run.
3.Solar powered with battery backup.

•Typical applications include pumping water for water features, creating pond fountain and conducting pond water filtration and garden irrigation.

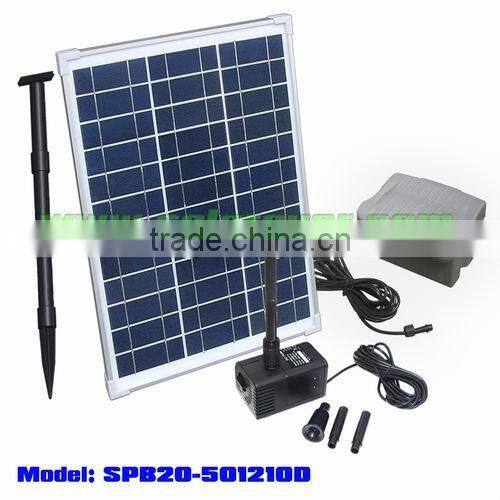

•The solar garden pump kit for water feature consists of a DC brushless dry run protection water pump,a solar panel module and a backup battery.

•Solar energized, maintenace free, cost free and easy to install.

•Dry run protection prevents the pump from burning out when fountain or pool dries out.

•No failure-prone carbon brush or shaft seal so that a robust and long service life could be expected.

•Battery back up, runs perfectly on overcast day and in the night.

•Ceramic shaft, runs steadily and quietly.

•Designed and manufactured to have high power efficiency.

•Cost-effectiveness, competitive price.

Item No.		SPB20-501210D
Description		Solar garden pump for water feature
Category		Solar pump kit

Product Summary
Solar panel		Solar panel item				GSP20-36
		Peak power				20W
		Peak power voltage				17.28V
		Peak power current				1.157A
Pump		Pump item				BP501210D
		Maximum pump head				3.2m (10.5ft)
		Maximum flow rate				1560L/H (412.1GPH)
		Cable length				5m (16.4ft)
		nozzle item				NA03
Battery back-up		Item No				SBB12-7
		Extension cord length				5m (16.4ft)
		Battery type				Lead Acid
		Battery capacity				12V, 7Ah
Flow adjustable						yes
Dry run protection						yes
Master carton size						54X37X27cm
Quantity per carton						1pcs
Master carton G.W						8kg
Quantity per 20 container						512pcs
Quantity per 40 container						1056pcs
Warranty						3years

Litres per hour - At various pumping heights (Head)
Operating voltage	@ 0m	@0.5m	@0.75m	@1.0m	@1.5m	@2.0m	@2.5m	@3.0m	Max height
12V	980	550	300	0					1.0m
18V	1350	1070	840	755	420	60	0		2.1m
24V	1560	1480	1200	1190	930	690	430	50	3.2m

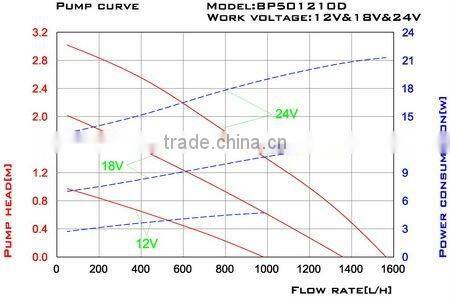

Pump Curve
