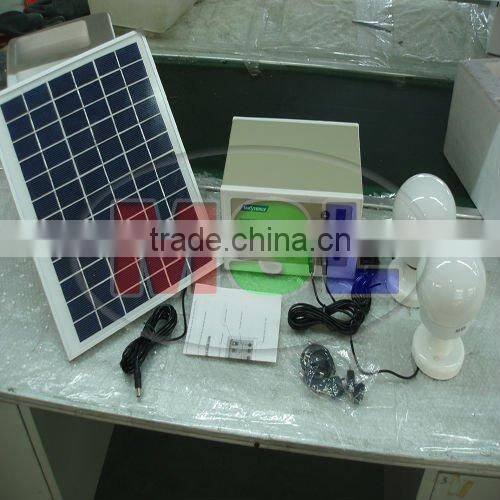

10W Portable Solar Power Supply System

US$ 1 - 69 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

MSL

Model Number:

MSL04-01B-1

Masterly Electronics Company Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name MSL

Model Number MSL04-01B-1

Specification Normal

Application Home

Output Voltage (V) DC 12

Load Power (W) 6W

Solar Power (W) 10W

Work Time (h) about 10 hours

Specifications

1. Over charge/discharge protection
2. Solar: 18V 10W
3. Battery: Lead-acid 12V 7Ah
4. Lighting time: 10 hrs
5. CE, Rohs

10W Portable Solar Power Supply System: MSL04-01B-

Features:

Product Name	Solar Light Kits
Model Number	MSL04-01B
Charging Time	8~10 hours
Lighting Time	10 hours
Certificate	CE,RoHS,ISO9001
Protection Level	IP44
3W LED Lamp(2pcs)	3W LED lamp
	Luminous flux(lm)	130 per light
	LED CCT(K)	6000
	Weight(kg)	0.2
	Big size(cm)	111117
	Operation time	>50,000H
	Working temperature	-20°~65°
	LED Color	Warm white
	Shell material	PC
	Volt(V)	DC 12V
	Connector wire	3m(5m or 10m)
Solar panel 10W(1pcs)	Monocrystalline or Polycrystalline silicon solar panel
	Weight(kg)	1.0
	Solar panel size(cm)	33.5282
	Power max(W)	10
	Vmp(V)	17.6
	Voc(V)	21.6
	Imp(A)	0.59
	Isc(A)	0.62
	Connector wire	3m(5m or 10m)
12V7Ah battery and control box(1pcs)	1) Body material:Metallic body
	2) 12V7Ah DC rechargeable sealed Lead-Acid battery
	3) Over charge/discharge protection
	4) Indicative light of charging,output and low power
	5) 7 types connector for the mobile phone charge

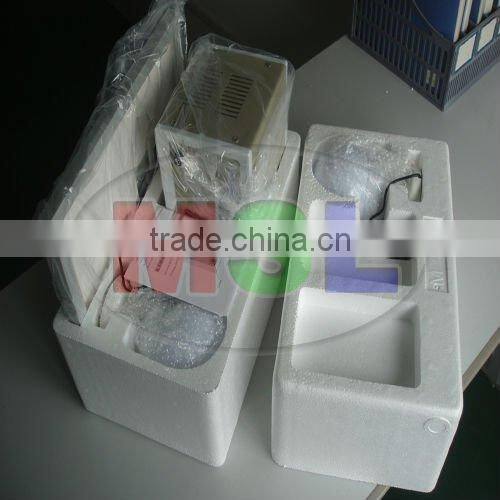

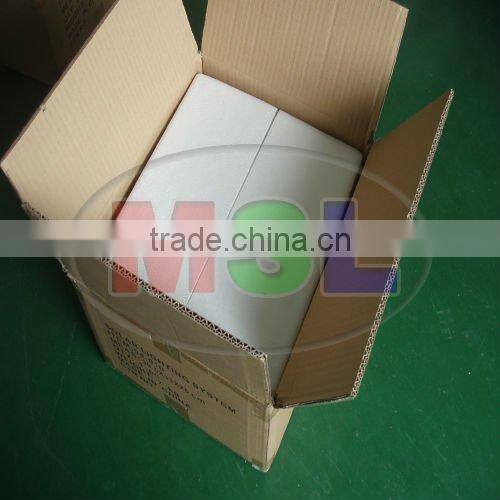

Package	Cortan with poly foam
MOQ	200
Pcs/ctn	1pc
Ctn size(mm)	385x330x250
G.W/N.W	6.6/7KG
Q’ty/20’	900
Loading port	Shanghai or ningbo
Payment terms	T/T, 30% deposit, balance at sight of B/L copy
Valid time	About 30 days
FOBshanghai	USD 69/PC
