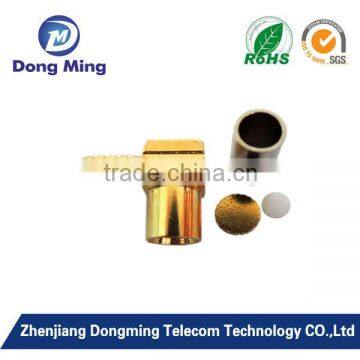

Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > MCX Female Right Angle Crimp Type for RG316
US$ 5,000 - 1,000,000
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
DM, DM
Model Number:
RF connector MCX male right angle crimp type for RG316
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen or shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RF Connector N Female for Semi CableNegotiableMOQ: 100 Pieces -
N Male Coaxial Connector for LMR 400connectorUS$ 5,000 - 100,000MOQ: 100 Pieces
-
SMB Plug Male Connector Crimp RG316 RG174 LMR100NegotiableMOQ: 100 Pieces
-
SMB Female Jack Connector Crimp RG316 RG174 LMR100 Phantom RadioNegotiableMOQ: 100 Pieces
-
BNC Male Coaxial Connector for RG174 RG316 Cable AntennaUS$ 5,000 - 1,000,000MOQ: 100 Pieces
Place of Origin
China
Brand Name
DM, DM
Model Number
RF connector MCX male right angle crimp type for RG316
Type
Other, MCX, RF connector MCX female right angle crimp type for RG316
Application
Other, RF, RF,automotive,power,microwave,audio and video,antenna,WIFI
Gender
Other, Female, female
RF connector MCX female right angle crimp type for RG316
| Key Performance | ||||||
| Temperature range | -65~+155 | Insulation resistance | ≥1000MΩ | |||
| Characteristic impedance | 50Ω/75Ω | Dielectric Withstanding voltage | 750V(r ms) | |||
| Frequency range | 0~6GHz(50Ω) | VSWR | ≤1.20(50Ω) | |||
| 0~1.5GHz(75Ω) | ≤1.35(75Ω) | |||||
| Voltage rating | 335V(r ms) | Insertion loss | 0.1dB at 1GHz | |||
| Contact resistance | Center conductor | ≤5mΩ | Durability | 500 Cycles | ||
| Outer conductor | ≤2.5mΩ | |||||
| Material And Plating | ||||||
| Body | Brass , gold plated | |||||
| Male center contacts | Brass , gold plated | |||||
| Female center contacts | Beryllium copper ,gold plated | |||||
| Insulators | PTFE | |||||
| Gaskets | Cooper alloy,nickel or gold plated | |||||
| Crimp ferrules | Beryllium copper ,gold plated | |||||
