PT710-C(140Ap-p ,50A RMS) Osciloscopio Digital Current Probe
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PINTECH
Model Number:
PT710-C
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PT-7802/PT-7803 High Frequency Current Probe/current LoopNegotiableMOQ: 1 Set -
PT-710(100KHz,0.2A~100A)current Probe for AC/DCNegotiableMOQ: 1 Set
-
PT-2710 (AC/DC,100KHz,60Ap-p) Current Clamp ProbeNegotiableMOQ: 1 Set
-
PT-2720 (150KHz,200Ap-p)free Delivery Current SensorNegotiableMOQ: 1 Set
-
PT-2740 (AC/DC,500A P-p) Current Probe(Manufacturer of Oscilloscope Probe)NegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
PINTECH
Model Number
PT710-C
Product Description

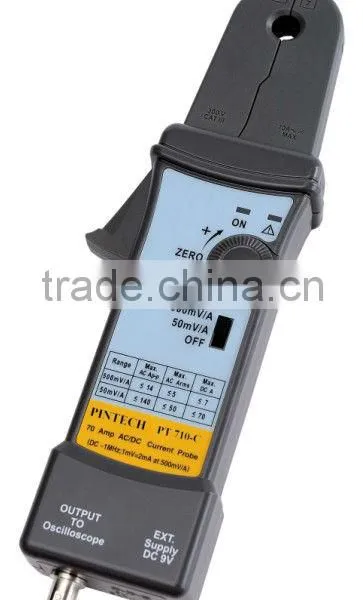

AC/DC clamp current probe
PT710-C high quality current probe(140Ap-p)
enables a general purpose oscilloscope to
display AC and DC current signals up to 140 amps Peak (50A RMS)
Model |
PT710-C |
DC Accuracy Typical |
±3%:20mA~14A peak at 500mV/A ±4%:200mA~100A peak at 50mV/A ±15%:100A~140A peak |
Max. Working Voltage |
300V CAT III |
Max. Sensitivity |
≥ 2mA |
Frequency Range |
DC-1MHz(-3dB) |
Rise Time |
0.35μS |
Battery or Adaptor |
9V NEDA 1604A, IEC DLR61 Or PINTECH Specified, Adaptor |
Accessories |
BP-250,MT-246N,Adaptor Instruction Manual. |
Packaging & Shipping
Company Information

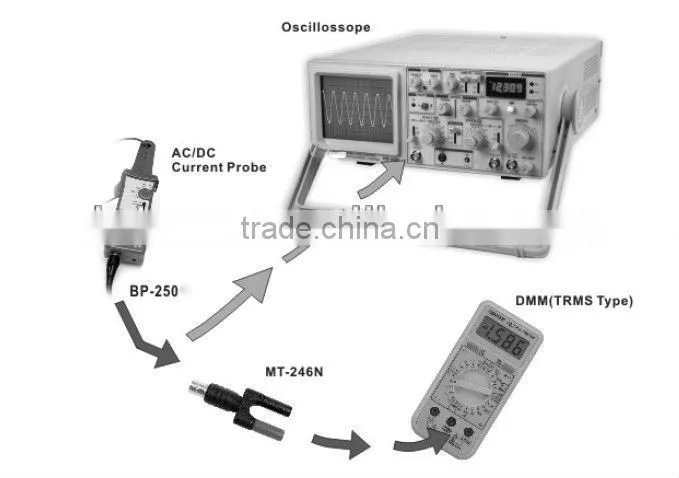

installed on an oscilloscope/DMM(with connector) of any brand
