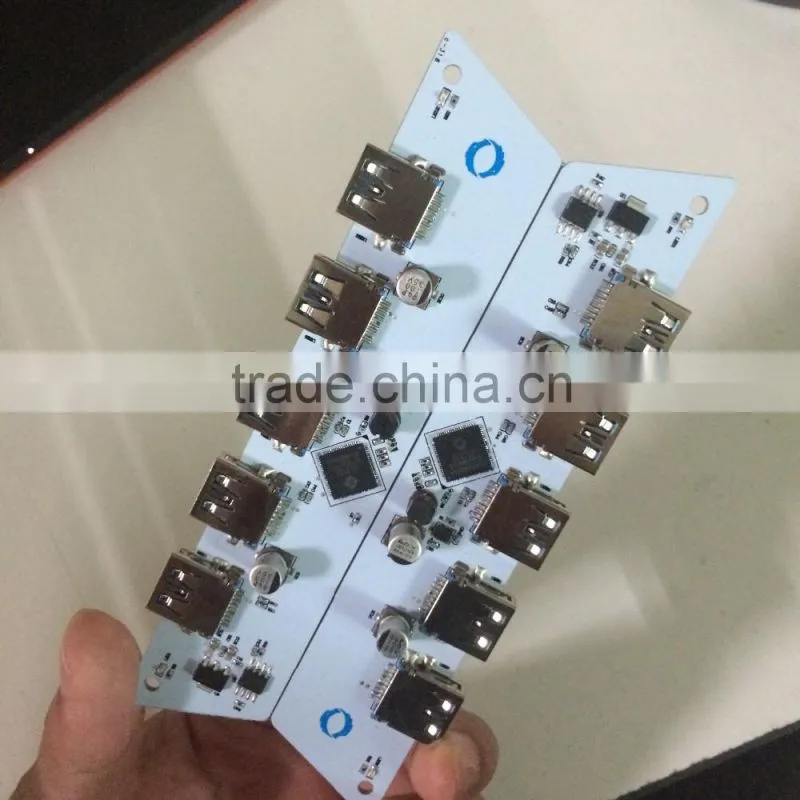

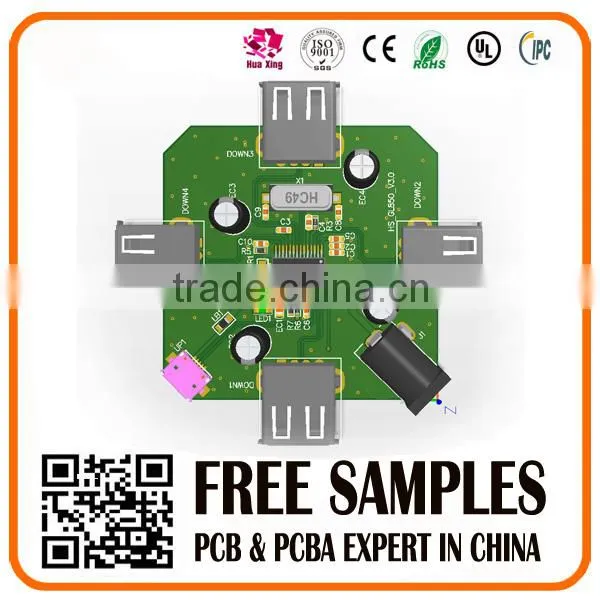

High speed micro 3.0 4 ports usb hub made in china
- 100000 Piece / Pieces per Month
- SHEN ZHEN PORT/ HK port /GUANGZHOU
- T/T L/C D/P D/A Credit Card PayPal
-
USB Relay Output Module PCB Board for Home Automation
-
PCB Roger Circuit Board with cheap cost & Fast supply
-
Cheap cost Rogers PCB production , pcb sample
-
Fast Supply Rogers 4350 PCB Circuit Board Prototype and mass pcb production
-
High quality Rogers Printed Circuit board with fast supply , rogers material in stock
-
2 layers Taconic Material PCb /Special material pcb circuit board provided
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | HUA XING | Model Number: | HX-009 |
| Number of Layers: | 12-Layer | Base Material: | FR-4,CEM-3,Taconic,Rogers,ALU,FR-1 | Copper Thickness: | 1oz |
| Board Thickness: | 1.6mm | Min. Hole Size: | 0.1mm | Min. Line Width: | 0.075mm |
| Min. Line Spacing: | 0.1mm | Surface Finishing: | Lead free HASL |
Product Description
Brand Name:HUA XING
Model Number: 002-0133
Base Material:FR-4, PTEE, aluminum
Copper Thickness:1OZ
Board Thickness:1.6mm
Min. Hole Size:0.1mm
Min. Line Width:0.075mm
Min. Line Spacing:0.075mm
Surface Finishing:HASL, OSP
Color:green
PCBA Technical Capacity
SMT | Position accuracy:20 um |
Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP | |
Max. component height::25mm | |
Max. PCB size:680×500mm | |
Min. PCB size:no limited | |
PCB thickness:0.3 to 6mm | |
PCB weight:3KG | |
Wave-Solder | Max. PCB width:450mm |
Min. PCB width: no limited | |
Component height:Top 120mm/Bot 15mm | |
Sweat-Solder | Metal type :part, whole, inlay, sidestep |
Metal material:Copper , Aluminum | |
Surface Finish:plating Au, plating sliver , plating Sn | |
Air bladder rate:less than20% | |
Testing | ICT,Probe flying,burn-in,function test,temperature cycling,AXI – 2D and 3D automated X-ray inspection, AOI – automated optical inspection |
FAQ:
1.What service can you provide?
We can provide PCB gerber file design,Copy and Clone,OEM and ODM service.
Not only produce PCB,PCB Assembly,but also Plastic Enclosure,and Complete products
2.Are my design files secure when I send them to you?
Your files are held in complete safety and security while Hua Xing PCBA Limited is in possession of them. Your files are never shared nor will any third parties have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.
3.For small quantity orders, can you produce prototype PCBs?
Yes. Hua Xing PCBA Limited has the capability to produce PCBs in any amount. But,the greater the quantity, the greater the cost savings.
4.Do you have an order minimum?
We accept order with as low as a quantity of 1 (piece or panel).
5.What is the standard thickness of laminate that Hua Xing PCBA Limited uses?
1.6 mm (0.063″)
6.What are all your options for laminate thickness?
We can handle the following non-standard thicknesses: 0.2mm (0.0079″), 0.4mm (0.016″), 0.6mm (0.024″), 0.8 mm (0.032″), 1.0 mm (0.04″), 1.2mm (0.047″), 2.0mm (0.079″), and 2.3mm (0.091″).
7.Do you have the capability of manufacturing high frequency materials? Rogers?
While expensive, we can manufacture these materials. Contact us for pricing prior to placing an order.
8.What options exist for the thickness of copper?
0.5 oz, 1.0 oz, 1.5 oz, 2.0 oz, 2.5 oz, 3.0 oz, 3.5 oz, 4.0 oz, 4.5 oz and 5.0 oz.
9.What are the color options for PCB solder masks?
Green, black, blue, red green, yellow and white
10.What are the options for surface finishes?
The options include HASL, Immersion gold, Immersion tin, Immersion Silver, OSP, and HASL lead free. Call for other options.
11.What file formats do you accept for PCB assembly?
Gerber and CAM Auto CAD DXF, DWG formats.
2. We can supply CAD and ProE designed precision moulds. Moulds can be designed and manufactured according to customers' requests or samples. Plastic injection processing available.
3. We have advanced equipment for through-hole and SMT DIP COB cable assembly.
4. ROHS compliant and lead-free process.
5. In-circuit, functional tests& burn-in tests, full system test
6. High output to guarantee prompt delivery.
PCB/pcba file assembly or PCB Assembly files requests
2)BOM(Bill of material) for assembly
To short the lead time,please kindly advertise us if there is any acceptable components substitution.
3)Testing method & Test fixtures if necessary.
4)programming files & programming tool if necessary
5)Schematic if necess
Certification
If you send us your Gerber Files , PCB specification and BOM, we will quote for you within 12 hours.
Thanks in advance !
If there are any inquiries please don't hesitate to contact us, we'll response in 24 hours!
Contact Us
- Shenzhen Huaxing PCBA Limited
- Contact nameKatrina Liao
- Phone86-755-23146369
- Address703-707#, Yufeng building,6-9# Jinhai road, Yantian community,Xixiang street,Bao'an district, Shenzhen city Shenzhen,Guangdong
-
