Cone crusher is widely usedin metal and non-metallic mines, cement, construction, sand and metallurgical industries. It is applicable to materials like iron ore, nonferrous metal ores, granite, limetone, quartzite, sandstone, pebbles and so on.

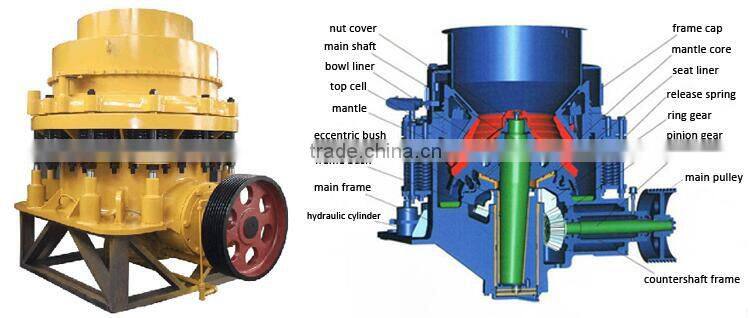

cone crusher WORKING PRICIPLE
Cone crusher crushes materials by working between the movable cone and fixed cone. The movable cone is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft is driven by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is driven by motor through v-belts. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve of cone crusher rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the cone leaves, grinded materials is discharged from the discharge hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequently the output size is determined.
Technicla datas of Spring Cone Crusher:
| Model | mlTi (mm) | size of feed opening(mm) | Max feed particle size(mm) | Row ore mouth adjusting range(mm) | motor power(kw) | production capacity(t/h) | weight(except motor) |
| (kg) | |||||||
| PYB-900 | 900 | 135 | 110 | 15~50 | 55 | 50~90 | 9600 |
| PYB-1200 | 1200 | 170 | 145 | 20~50 | 110 | 110~168 | 24700 |
| PYB-1750 | 1750 | 250 | 215 | 25~60 | 155 | 280~480 | 50300 |
| PYB-2100 | 2100 | 350 | 300 | 30~60 | 280 | 500~800 | 71200 |
| PYB-2200 | 2200 | 350 | 300 | 30~60 | 280 | 500~1000 | 80000 |
| PYZ-900 | 900 | 70 | 60 | 8~20 | 55 | 20~65 | 9600 |
| PYZ-1200 | 1200 | 115 | 100 | 8~25 | 110 | 42~135 | 25000 |
| PYZ-1750 | 1750 | 215 | 180 | 10~30 | 155 | 115~320 | 50300 |
| PYZ-2200 | 2200 | 275 | 230 | 10~30 | 280 | 200~580 | 84000 |
| PYD-900 | 900 | 50 | 40 | 3~13 | 55 | 15~50 | 9700 |
| PYD-1200 | 1200 | 60 | 50 | 3~15 | 110 | 18~105 | 25300 |
| PYD-1750 | 1750 | 100 | 85 | 5~15 | 155 | 75~230 | 50500 |
| PYD-2200 | 2200 | 130 | 100 | 5~15 | 280 | 125~350 | 85000 |

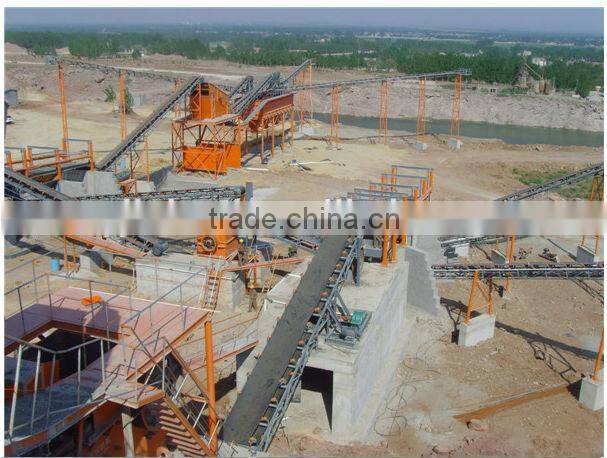

In the mining and quarry industry, jaw crushing plant performs as a powerful mobile crusher plant. They can be operated either as independent units, or as two-stage crushing plant with primary and secondary crushing stages, or as three-stage crushing plant with primary,
secondary, and tertiary crushing according to clients' particular requirements. Likewise, it
can be easily adjusted to suit crushing applications for two options, whether by choosing
feeding to crusher or feeding to screen.
Ore dressing process:
Raw ores→ Raw ore bin/storage → Chute feeder → Jaw crusher(First crushing) →Belt
conveyor → Jaw crusher(Second crushing) → Belt conveyor → Raw ore bin/storage →
Feeder(Chooseone in Swaying feeder or disk feeder) →Ball mill → Spiral classifier → RJ
agitation tank → BSK flotation(crude selected)→ SF flotation(fine selected)→ 50PNJ pump
→ Thickener → agitation tank → dual impeller agitation tank→ Desorption electrolytic
equipment
Company Profile
Yantai Jinhao Mining Machinery Co., Ltd. devotes in manufacturing dressing equipment for nonferrous metal ores and other ores. It covers 45000 square meters with 40 units of professional huge processing machinery in good condition. We supply not only high quality machinery, but the assembling instruction, testing instruction of the equipment, and the overall service including design of the production line of ore dressing / smelting, personnel training, and technique guidance. With good quality and service, all types of our product are sold and more and more applied in more than 30 countries with good reputation .
We are eager to have a chance to build long and firm business ship with the dressing machinery customers from different countries.
JINHAO Major Product:
Ore dressing procrdure & machinery
- feeding equipment
- screening equipment
- crushing machine
- grinding equipment
- spiral classifier
- floating equipment
- stirred tank
- thickening equipment
- cyaniding equipment
- gravity separation equipment
- magnetic separator
- hydrocyclone
- filter equipment
