Specifications
Barrelled Filling Machine1.High speed and quality
2.Low Maintenance rate

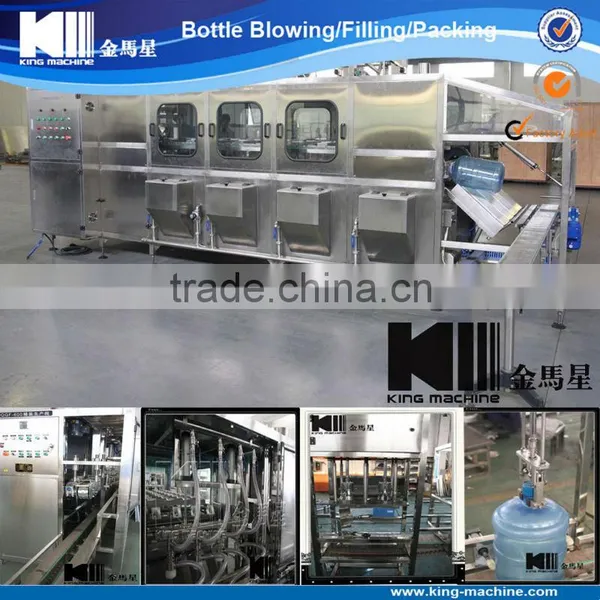

1. Model QGF series Barreled filling machine is combined with washer, filler and sealer machine into one unit, especially for the production line of drinking water of 3 and 5 gallons.
2. It is an ideal equipment to produce mineral water, distilled water, pure water production. The completed machine is full automatic.
3. You can match with de-capper, leakgae inspection, cap loading and barrel loading device, shrinking film machine, coding system to be a completed water barrel filling production line.
Technical Specification:
1. Composition: Decapper; Auto-loader; Bottle Washer; Filler; Capper.
(P.S. : Accessory equipments can be supplied here such as bottle blowing machine, labeling machine, bottle ink-jet coder, inspection lamp, air conveyor, bottles conveyor, cases conveyor, case ink-jet coder, change parts for various bottles, etc.)
2. Control System: PLC
2. Decapper/ Auto-Loader/ Bottle Washer/ Filler/ Capper Introduction:
a. Decapper: Remove covers with piston connected with cylinder moving upwards and dowards; Safely controlled by PLC SYSTEM;
b. Auto-Loader: Auto-loading chains, precise bottle spacing and locating; Precise loading without friction at the bottom of bottle; CYLINDER-CONTROLLED reversible loading

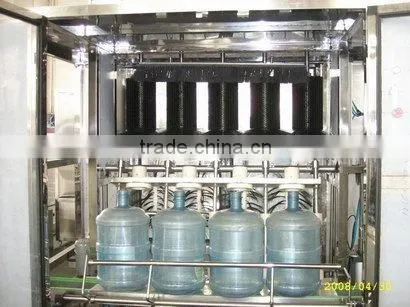

c. Bottle Washer: 2 rinsing cycles; Washing both inside and outside under AUTOMATIC WATER LEVEL CONTROLL with detergent of temperature adjusted by sensors around 70°C; Final rinsing with spring or ozonized water (Ozone generator optional); Spraying nozzle eliminating the residual water of bottle via air blower;
d. Filler: Overflow pressure filling system; Filling accuracy of 99%;
e. Capper: Linear capping machine for press-on caps; Equipped with cap unscrambler and caps chute for distributing caps
Main Technology Parameter:
Model |
QGF-120 |
QGF-240 |
QGF-450 |
QGF-600 |
QGF-900 |
QGF-1200 |
Filling Heads |
1 |
2 |
3 |
4 |
6 |
8 |
Volume(L) |
18.9 |
|||||
Barrel Size(mm) |
φ270×490 |
|||||
capacity(b/h) |
120-150 |
240-300 |
400-450 |
500-600 |
700-800 |
1000-1200 |
Gas Pressure(Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.6 |
0.6 |
Gas Consumption(m 3 /min) |
0.37 |
0.6 |
0.8 |
1 |
1.2 |
1.5 |
Moto Power(kw) |
1.38 |
1.75 |
3.8 |
7.5 |
9 |
13.5 |
Rated Voltage(V) |
380V/50Hz |
|||||
Weight(kg) |
680 |
1200 |
1600 |
2000 |
3500 |
4500 |
