Specifications

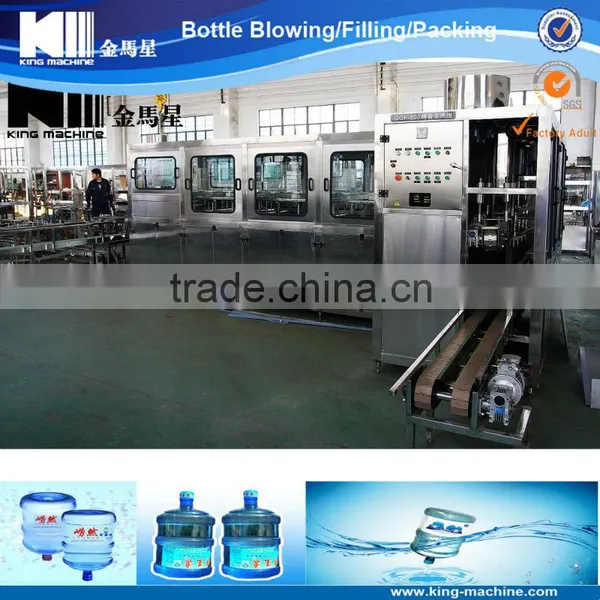

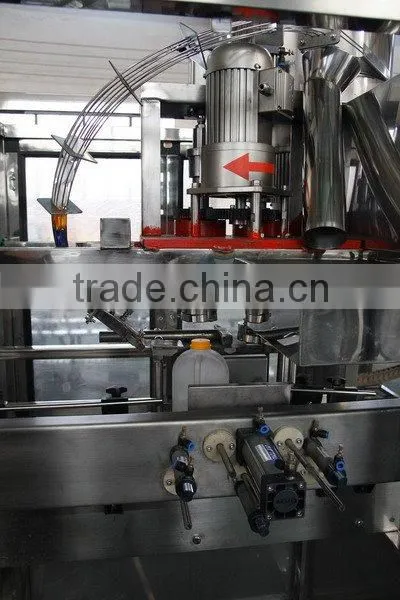

Full-Automatic Barreled Water Filling Machine1.High speed and quality
2.Low Maintenance rate
Technical Specification:
1. QGF Full-automatic Barreled Water Filling Machine
2. Washing and bottle filling line to produce water
1. This QGF Full-automatic Barreled Water Filling Machineis made of superior stainless steel, and is anticorrosion and easy to clean.
2. The machine is compactly conformed to small occupation of land and high efficiency and reliable and stable quality and high automaiton .
3. Only two operators are needed for a line ,which is wholly automatic barreled equipment with motor, electric unit and air three in one.
Main Technology Parameter:
Model |
QGF-120 |
QGF-240 |
QGF-450 |
QGF-600 |
QGF-900 |
QGF-1200 |
Filling Heads |
1 |
2 |
3 |
4 |
6 |
8 |
Volume(L) |
18.9 |
|||||
Barrel Size(mm) |
φ270×490 |
|||||
capacity(b/h) |
120-150 |
240-300 |
400-450 |
500-600 |
700-800 |
1000-1200 |
Gas Pressure(Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.6 |
0.6 |
Gas Consumption(m 3 /min) |
0.37 |
0.6 |
0.8 |
1 |
1.2 |
1.5 |
Moto Power(kw) |
1.38 |
1.75 |
3.8 |
7.5 |
9 |
13.5 |
Rated Voltage(V) |
380V/50Hz |
|||||
Weight(kg) |
680 |
1200 |
1600 |
2000 |
3500 |
4500 |
