Specifications

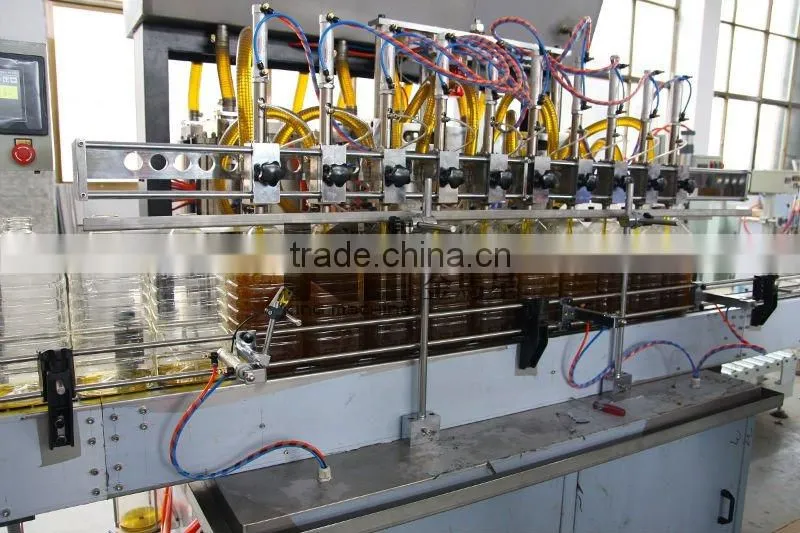

Cooking Oil Filling Machine1.Filling Heads: 4-12
2.Capacity:14-48b/m
3.Pressure:0.55-0.7mpa
This type filling machine is newly-designed product which adopts advanced international technology and familiarity of successful home-made machine. The control mode is pneumatic and touch-screen and features wide adaptability, high automation, precision of measurement reliability and easy operation. It is suitable for filling all sorts of viscous and in viscous,erosive liquid,such as seed fat, mineral oil and chemical liquid. And the shape of glass bottle or plastic barrel or metal container can be various.
This machine adopts frequency motor conveyer, air-operated, PLC,
Touch screen control. All filling heads are working at the same time, 100% contra-aperture rate drip-proof, intelligent gram med protection control.
It is a self-sucking type positive pressure filling machine. It has no special requirements for tank, which adopts open-top liquid case and automatic liquid control system.Advancd double-speed greatly improve production efficiency and sort out the overflow problem in other filling machine.
Main Parameter
|
|
|
|
|
||
filling heads |
12 |
8 |
6 |
4 |
||
|
ml Volume adjustable |
200-1000 |
200-1000 |
200-1000 |
200-1000 |
||
500-3000 |
500-3000 |
500-3000 |
500-3000 |
|||
1000-5000 |
1000-5000 |
1000-5000 |
1000-5000 |
|||
1500-5800 |
1500-5800 |
1500-5800 |
1500-5800 |
|||
capacity/min |
14-48 |
12-40 |
10-30 |
8-20 |
||
Ration error |
0.5%(volume not bigger then 2000mlerror(hour)10ml) |
|||||
Permit viscosity |
0-2500centiposise |
|||||
power |
220V/1500W 380V/5000W |
|||||
pressure |
0.55-0.7Mpa |
|||||
|
Air consummation M3/min |
1.0 |
1.6 |
1.2-1.4 |
1.0-1.2 |
||
Container permit length |
180 |
180 |
200 |
250 |
||
specification width |
180 |
180 |
180 |
180 |
||
Mm height |
400 |
400 |
400 |
400 |
||
Overall size m |
10*1.6*2.8 |
8*1.3*2.5 |
6*1.2*2.5 |
5.2*1.2*2.4 |
||
Weight Kg |
2500 |
2000 |
1800 |
1500 |
||
